SAEPB

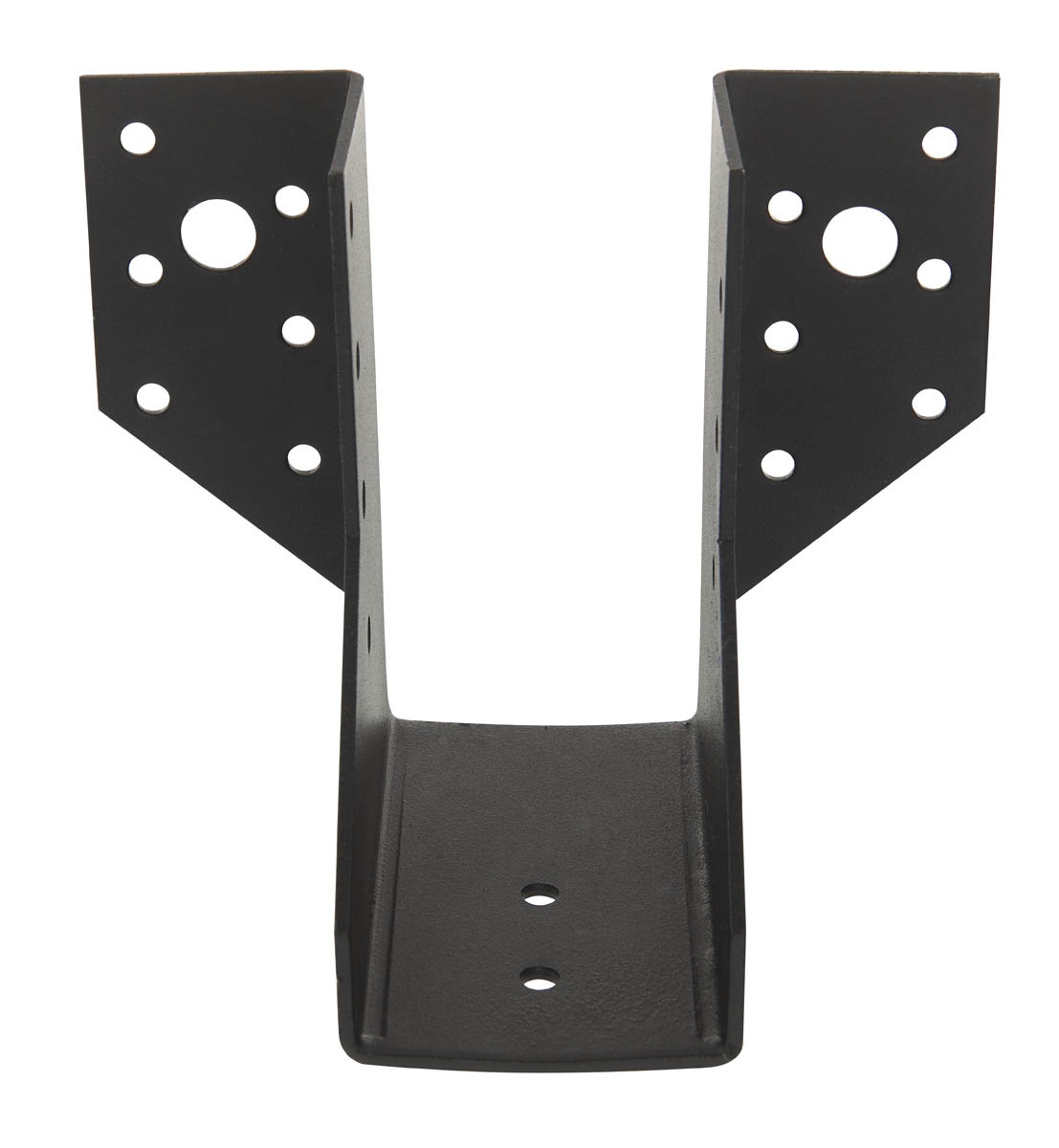

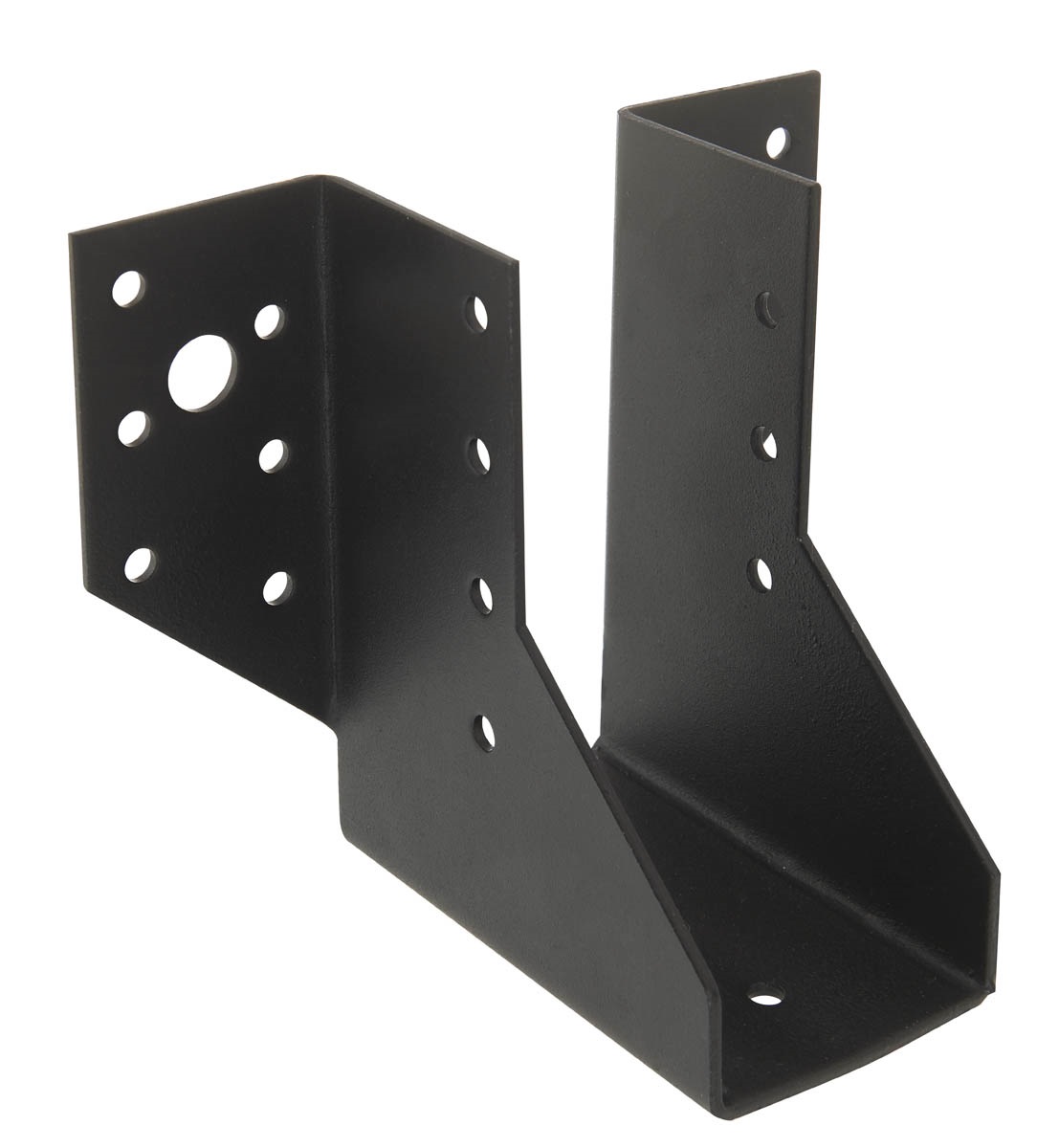

Design Series sortlakeret bjælkesko med udvendige flige

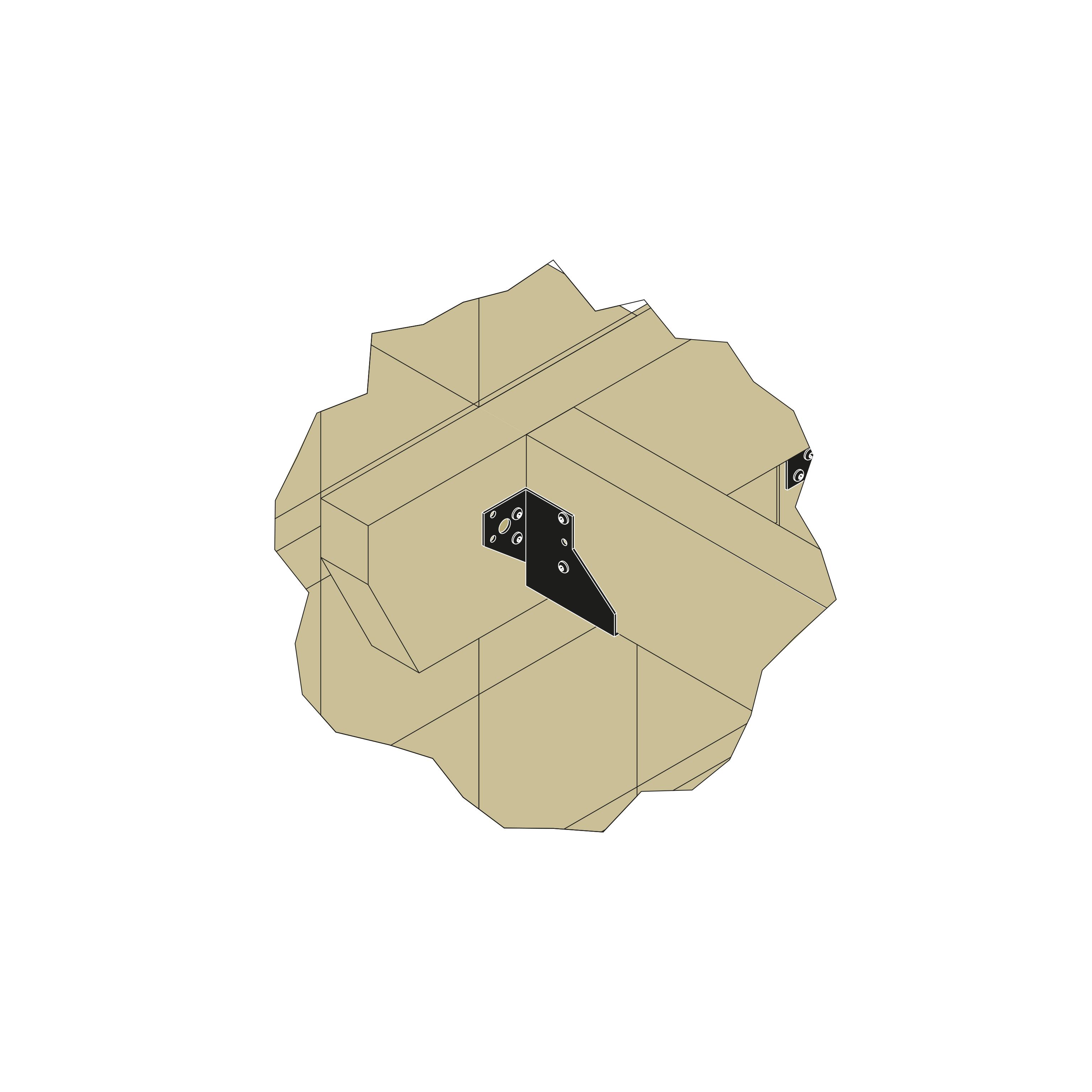

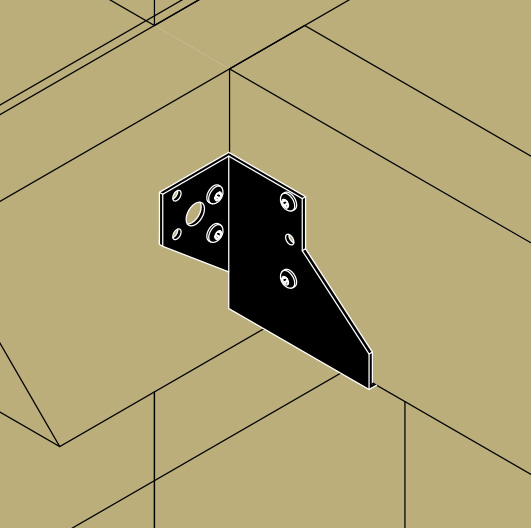

Sortlakeret bælkesko der kan anvendes til samling af træbjælker i samme plan.

CE mærket

Aftalegrundlag

Anvendelsesklasse 3

Outdoor

Sortlakeret RAL 9005
Teknisk data
Karakteristisk bæreevne - Bjælke-bjælkesamling - Fuld udsømning
Art. nr. | Udsømning | Karakteristisk bæreevne [kN] | ||||
---|---|---|---|---|---|---|
HB | SB | R1.k | R2.k | R3.k | R4.k | |
Antal | Antal | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | |
SAE200/46/2PB | 8 | 5 | 6.5 | 4 | 1 | 2.9 |
SAE250/46/2PB | 12 | 7 | 10.4 | 7.2 | 1.7 | 4.4 |

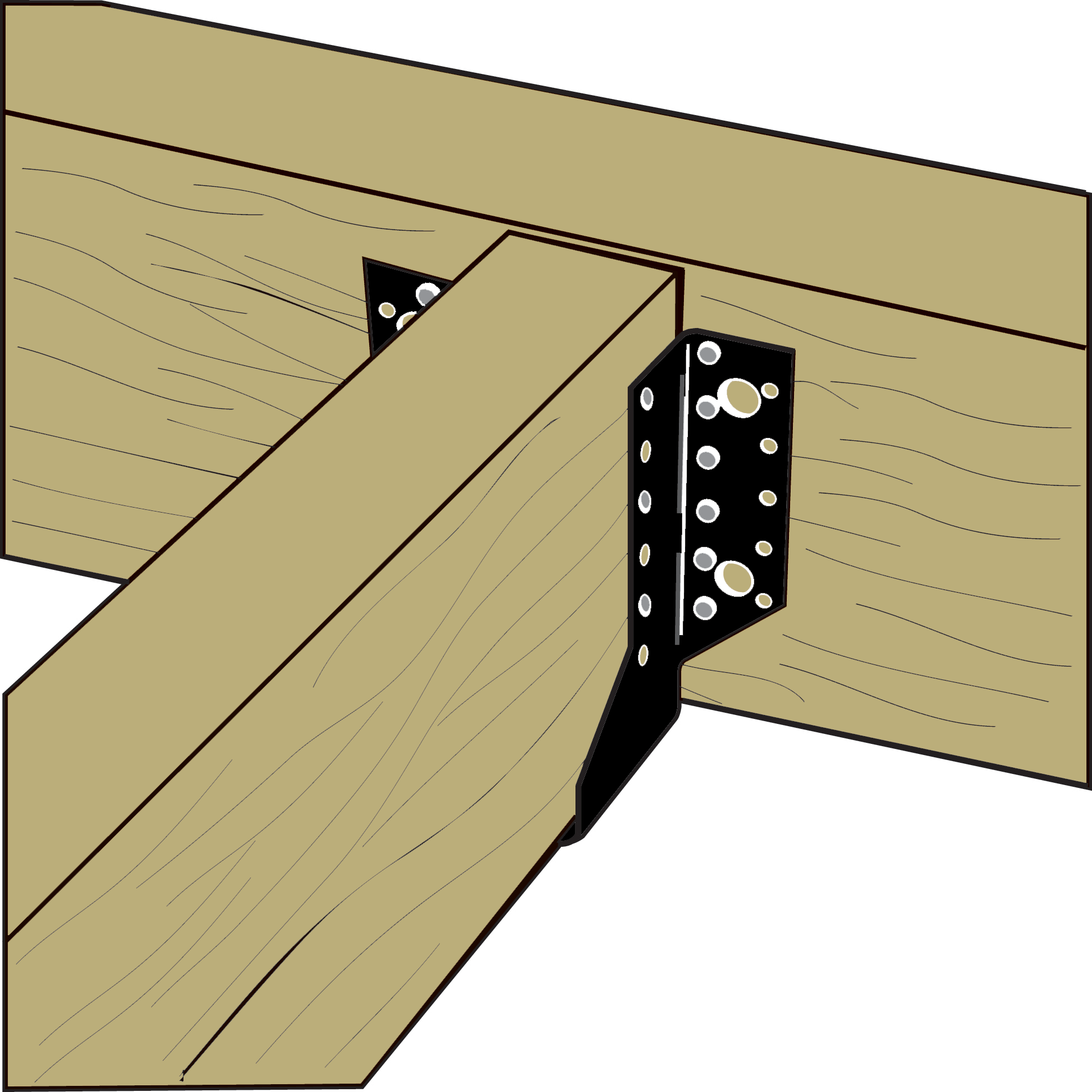

Karakteristisk bæreevne - Bjælke-bjælkesamling - Delvis udsømning
Art. nr. | Udsømning | Karakteristisk bæreevne [kN] | ||||
---|---|---|---|---|---|---|
HB | SB | R1.k | R2.k | R3.k | R4.k | |
Antal | Antal | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | |
SAE200/46/2PB | 4 | 4 | 3.9 | 2.1 | 0.5 | 1.5 |
SAE250/46/2PB | 6 | 4 | 6.3 | 2.9 | 0.9 | 2.2 |
-

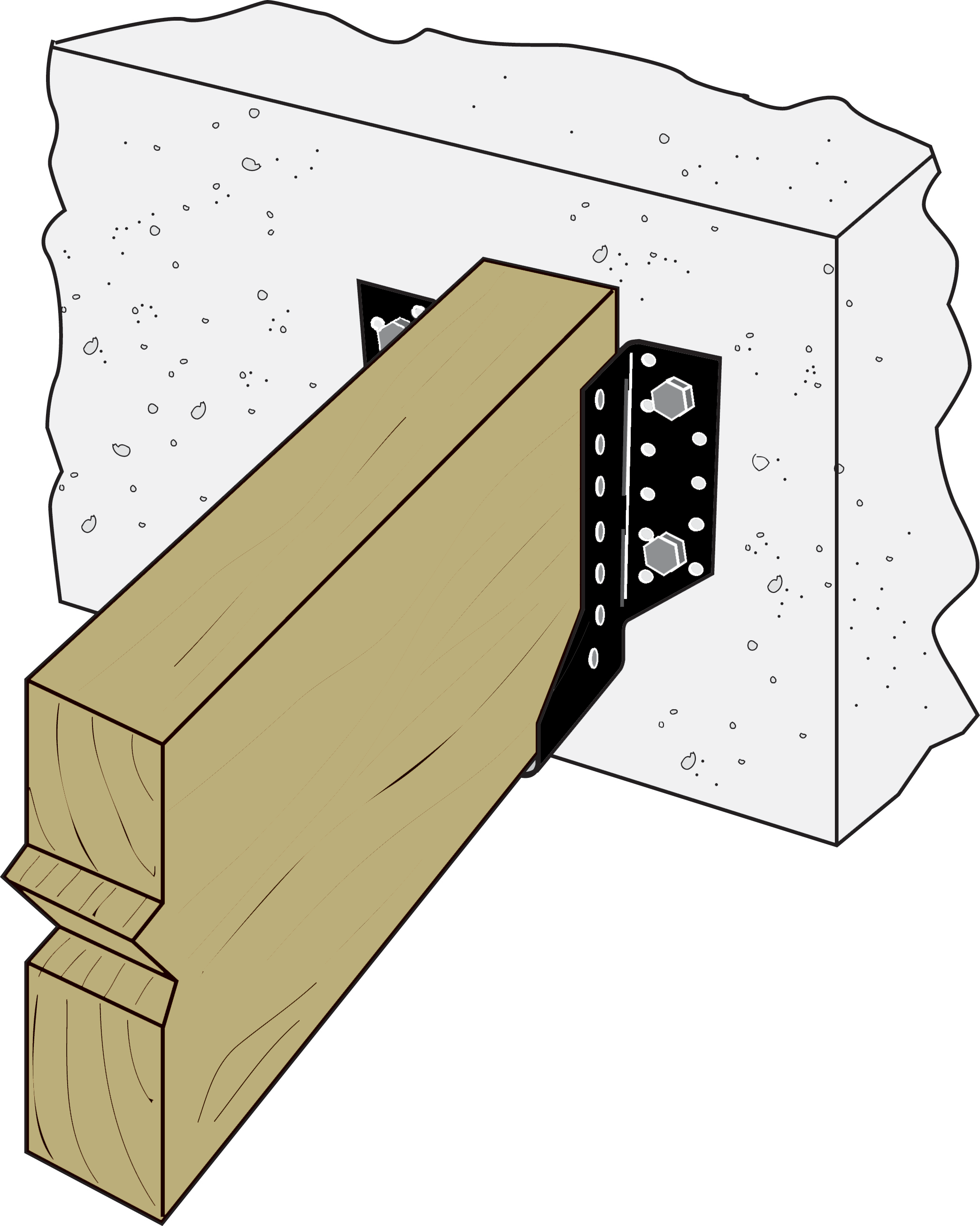

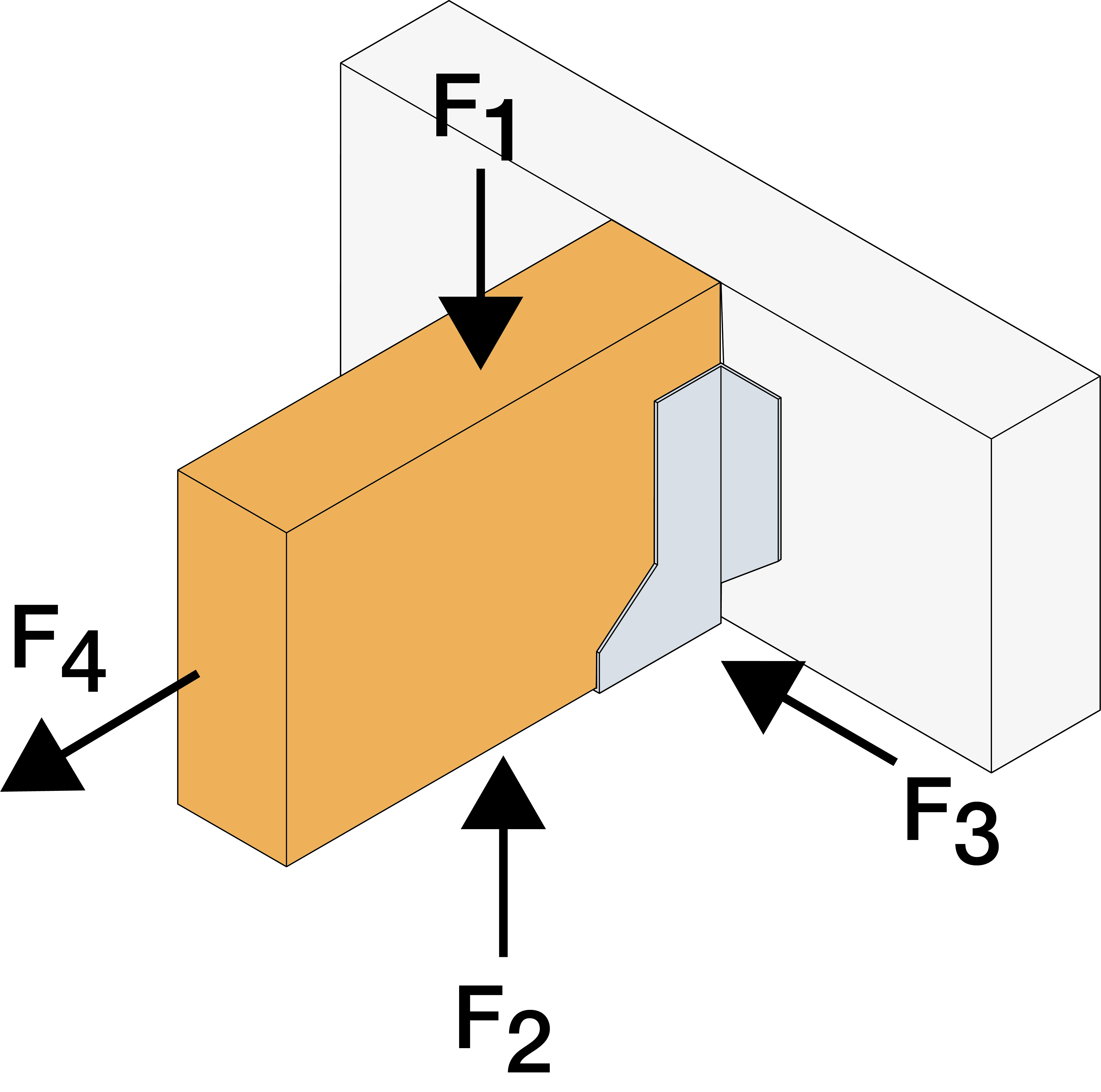

Product characteristic capacities - Timber beam to rigid support
Art. nr. | Udsømning | Karakteristisk bæreevne [kN] | ||||||
---|---|---|---|---|---|---|---|---|
HB | SB | R1.k | F2 | R3.k | R4.k | |||
Antal | Type | Antal | Type | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | |
SAE200/46/2PB | 2 | Ø10* | 5 | CSA** | 12.8 | 9.2 | 2.8 | 5 |
SAE250/46/2PB | 2 | Ø10* | 7 | CSA** | 16.5 | 12.8 | 3.8 | 5 |
* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances. The values in this table are given for an installation in the middle of a concrete slab. In other installation condition (close to the edge,...), the designer must check the anchor separately (Our free software Anchor Designer is available for download on our website).
** CSA5,0x35PB
