FM-MP3 evo
Ekspansionshylse

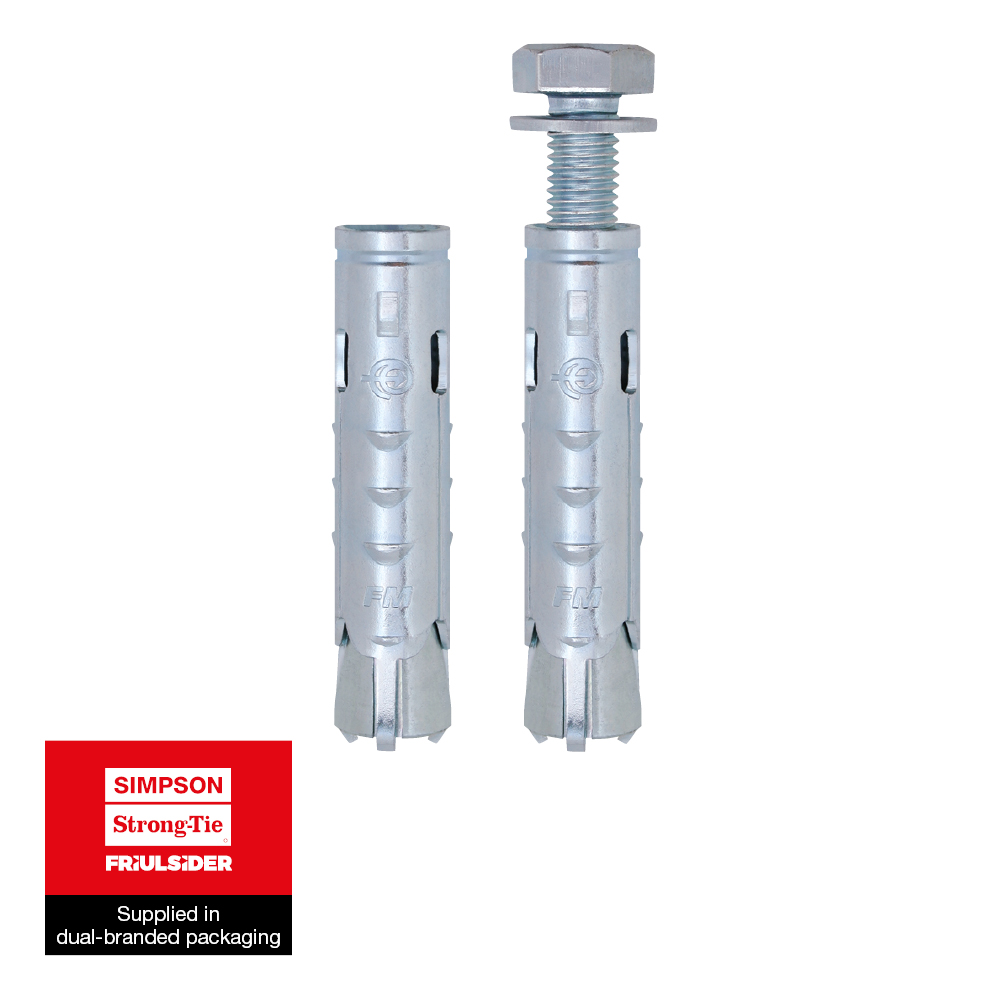

FM-MP3 evo er et anker fremstillet af galvaniseret stål med tre ekspansionssekmenter, som installers i et forboret hul og forankres ved momentkontrolleret ekspansion.
CE mærket
Aftalegrundlag
Elgalvaniseret stål
Indoor
Feu R 120
Fix Calc
Produktinformationer
Billeder
Egenskaber
Materiale
- Stål
- Hvid zinkbelagt
Fordele
- Universal metalanker, også egnet til hule grundmaterialer
- Et-lags ankerkrop med unikt ekapansionssystem
- Mange anvendelsesmuligheder
- Brandmodstandsevne R120

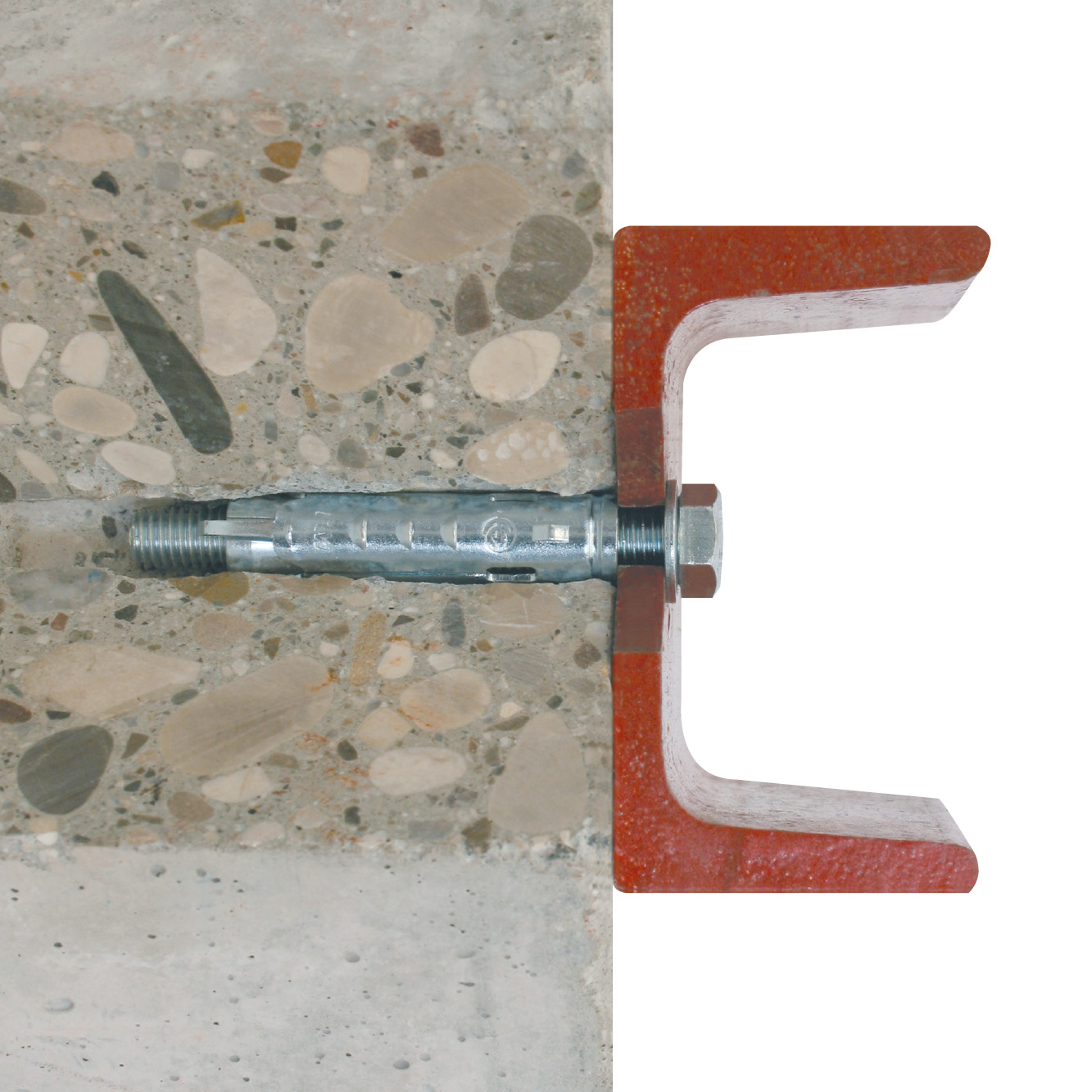

Applikationer
Anvendelsesområder
- Sikkerhedsbarrierer
- Hegn
- Gelændere
Egnet til:
- Godkendt til:
1. Bærende konstruktioner i urevnet beton
2. Anvendelse af flere ankre (multiple use) i ikkebærende konstruktioner i revnet og urevnet beton
Teknisk data
Dimensioner
Produktdimension - Kun anker
| Art. nr. | Bezeichnung | Stik [Ø x L] | Til skrue | Hole diameter [do] [mm] | Min. huldybde [h1] [mm] | Nominel indlejringsdybde [hnom] [mm] | Min. indstillingsdybde [hef] [mm] | Huldiameter i befæstelseselement [df] [mm] | Min. fastgørelses tykkelse [hmin] [mm] | Drejemoment [Tinst] [Nm] | Qty per box | Antal pr. ydre kasse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73300B1205000 | FM-MP3 evo | 12x50* | M8 | 12 | 70 | 50 | 43 | 10 | 100 | 15 | 50 | 500 |
| 73300B1506000 | 15x60* | M10 | 15 | 80 | 60 | 50 | 12 | 100 | 30 | 25 | 250 | |
| 73300B1808000 | 18x80* | M12 | 18 | 100 | 80 | 69 | 14 | 140 | 50 | 20 | 200 |
* Certified product when coupled with hex head screw DIN933 grade 8.8 and washer DIN125-1 (tfix = Lv – hnom)
Produktdimension - Sekskantskrue klasse 8.8
| Art. nr. | Bezeichnung | Stik [Ø x L] | Unbrakoskrue [Ø x L] | Maks. fastgørelses tykkelse [tfix] [mm] | Hole diameter [do] [mm] | Min. huldybde [h1] [mm] | Nominel indlejringsdybde [hnom] [mm] | Min. indstillingsdybde [hef] [mm] | Huldiameter i befæstelseselement [df] [mm] | Min. fastgørelses tykkelse [hmin] [mm] | Gevindlængde [Lv] [mm] | Drejemoment [Tinst] [Nm] | Qty per box | Antal pr. ydre kasse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73301B1808000 | FM-MP3 evo | 18x80 | M12x100 | 20 | 18 | 100 | 80 | 69 | 14 | 140 | 100 | 50 | 20 | 100 |
Produktdimension - Sekskantskrue klasse 8.8 Stor skive
| Art. nr. | Bezeichnung | Stik [Ø x L] | Unbrakoskrue [Ø x L] | Maks. fastgørelses tykkelse [tfix] [mm] | Hole diameter [do] [mm] | Min. huldybde [h1] [mm] | Nominel indlejringsdybde [hnom] [mm] | Min. indstillingsdybde [hef] [mm] | Huldiameter i befæstelseselement [df] [mm] | Min. fastgørelses tykkelse [hmin] [mm] | Gevindlængde [Lv] [mm] | Drejemoment [Tinst] [Nm] | Qty per box | Antal pr. ydre kasse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73307B1004500 | FM-MP3 evo | 10x45** | M6x50 | 5 | 10 | 60 | 45 | 36 | 8 | 100 | 50 | 8 | 50 | 500 |
| 73307B1205000 | 12x50** | M8x60 | 10 | 12 | 70 | 50 | 43 | 10 | 100 | 60 | 15 | 50 | 500 | |
| 73307B1506000 | 15x60** | M10x80 | 20 | 15 | 80 | 60 | 50 | 12 | 100 | 80 | 30 | 25 | 250 |
** Not covered by CE certification
Produktdimension - Gevindstang klasse 5.8
Table "Produktdimension - Gevindstang klasse 5.8" cannot be displayed : no references available.
** Not covered by CE certification
Produktdimension - Smedet kopkrog
Table "Produktdimension - Smedet kopkrog" cannot be displayed : no references available.
** Not covered by CE certification
Produktdimension - Smedet øje
Table "Produktdimension - Smedet øje" cannot be displayed : no references available.
** Not covered by CE certification
Anbefalede belastninger / for enkeltankre / uden kantafstande eller mellemrum - ETA-09/0067
| Art. nr. | Bezeichnung | Design capacity - Non-cracked concrete (3) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Spænding - Nrec1) | Skæring - Vrec (1-2) | Bending moment MRd [Nm] | ||||||||
| C20/25 [kN] | C30/37 [kN] | C40/50 [kN] | C50/60 [kN] | C20/25 [kN] | C30/37 [kN] | C40/50 [kN] | C50/60 [kN] | |||
| 73300B1205000 | FM-MP3 evo | 5.7 | 7 | 8 | 8.8 | 6.8 | 8.2 | 8.2 | 8.2 | 17 |
| 73300B1506000 | FM-MP3 evo | 8.3 | 10.4 | 12 | 13.2 | 8.5 | 10.3 | 12 | 13.2 | 34 |
| 73300B1808000 | FM-MP3 evo | 11.9 | 14.5 | 16.8 | 18.4 | 19.3 | 19.3 | 19.3 | 19.3 | 60 |
1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile
stress within the concrete induced by external loads, anchors loads included).
* The above load values also apply to: evo S
Designkapaciteter - enkelt forankring - ingen kantafstande
| Art. nr. | Bezeichnung | Designkapacitet - ikke-revnet beton (3) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Spænding - NRd (1) | Skæring - VRd (1-2) | Bøjningsmoment MRd [Nm] | ||||||||
| C20/25 [kN] | C30/37 [kN] | C40/50 [kN] | C50/60 [kN] | C20/25 [kN] | C30/37 [kN] | C40/50 [kN] | C50/60 [kN] | |||
| 73300B1205000 | FM-MP3 evo | 8 | - | - | - | 9.3 | - | - | - | 24 |
| 73300B1506000 | FM-MP3 evo | 1.6 | - | - | - | 11.6 | - | - | - | 48 |
| 73300B1808000 | FM-MP3 evo | 16.7 | - | - | - | 27 | - | - | - | 84 |
| 73301B1808000 | FM-MP3 evo | 16.7 | - | - | - | 27 | - | - | - | 84 |
| 73307B1004500 | FM-MP3 evo | 5 | - | - | - | 5.1 | - | - | - | 9.6 |
| 73307B1205000 | FM-MP3 evo | 8 | - | - | - | 9.3 | - | - | - | 24 |
| 73307B1506000 | FM-MP3 evo | 11.6 | - | - | - | 11.6 | - | - | - | 48 |
1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).
** Not covered by CE certification
Anbefalede belastninger / for enkeltankre / uden kantafstande eller mellemrum - ETA-10/0074
| Art. nr. | Bezeichnung | Designkapacitet - revnet og ikke-revnet beton |
|---|---|---|
| Træk og Forskydning - Frec [kN] - C20/25-C50/60 | ||
| 73300B1205000 | FM-MP3 evo | 5.7 |
| 73300B1506000 | FM-MP3 evo | 7.6 |
| 73300B1808000 | FM-MP3 evo | 9.5 |
1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).
* The above load values also apply to: evo S
Produktdimension - Gør-det-selv - Sekskantskrue
Table "Produktdimension - Gør-det-selv - Sekskantskrue" cannot be displayed : no references available.
Produktdimension - Gør-det-selv - Smedet kopkrog
Table "Produktdimension - Gør-det-selv - Smedet kopkrog" cannot be displayed : no references available.
* Not covered by CE certification
Produktdimension - Gør-det-selv - Smedet øje
Table "Produktdimension - Gør-det-selv - Smedet øje" cannot be displayed : no references available.
* Not covered by CE certification

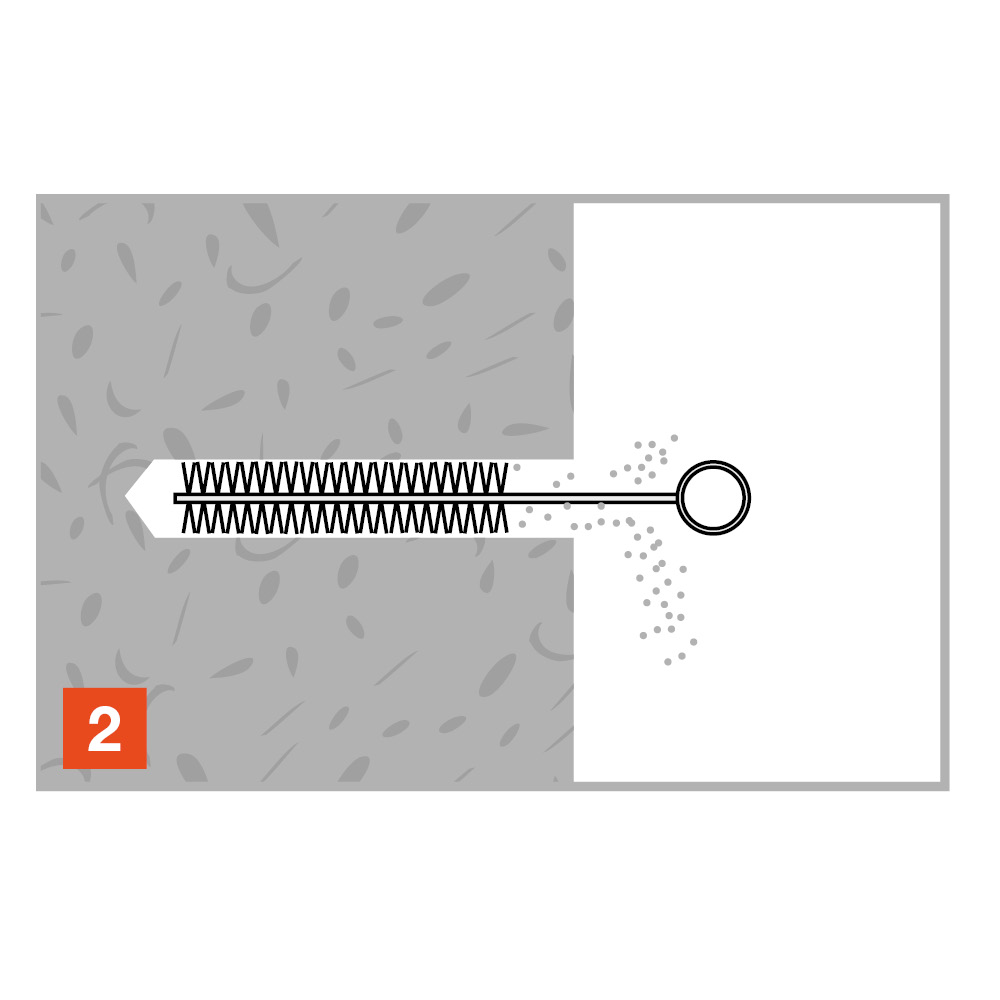

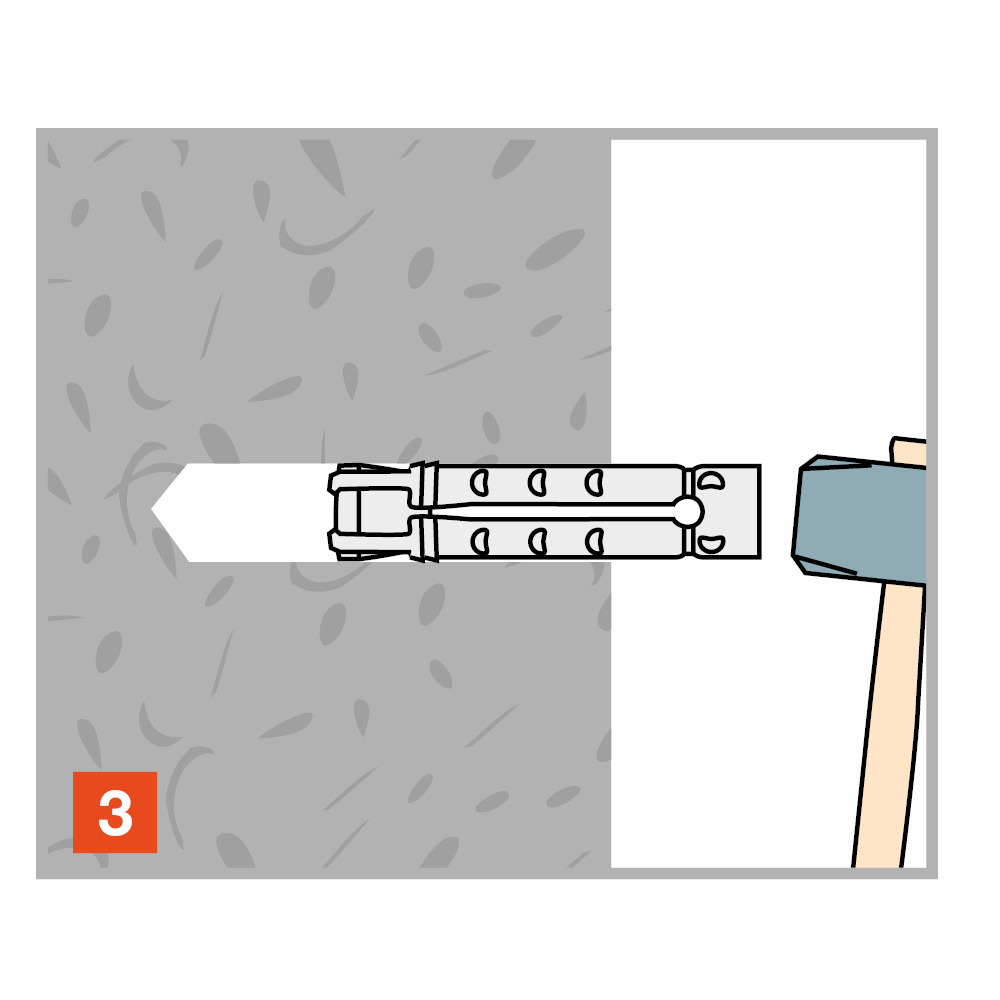

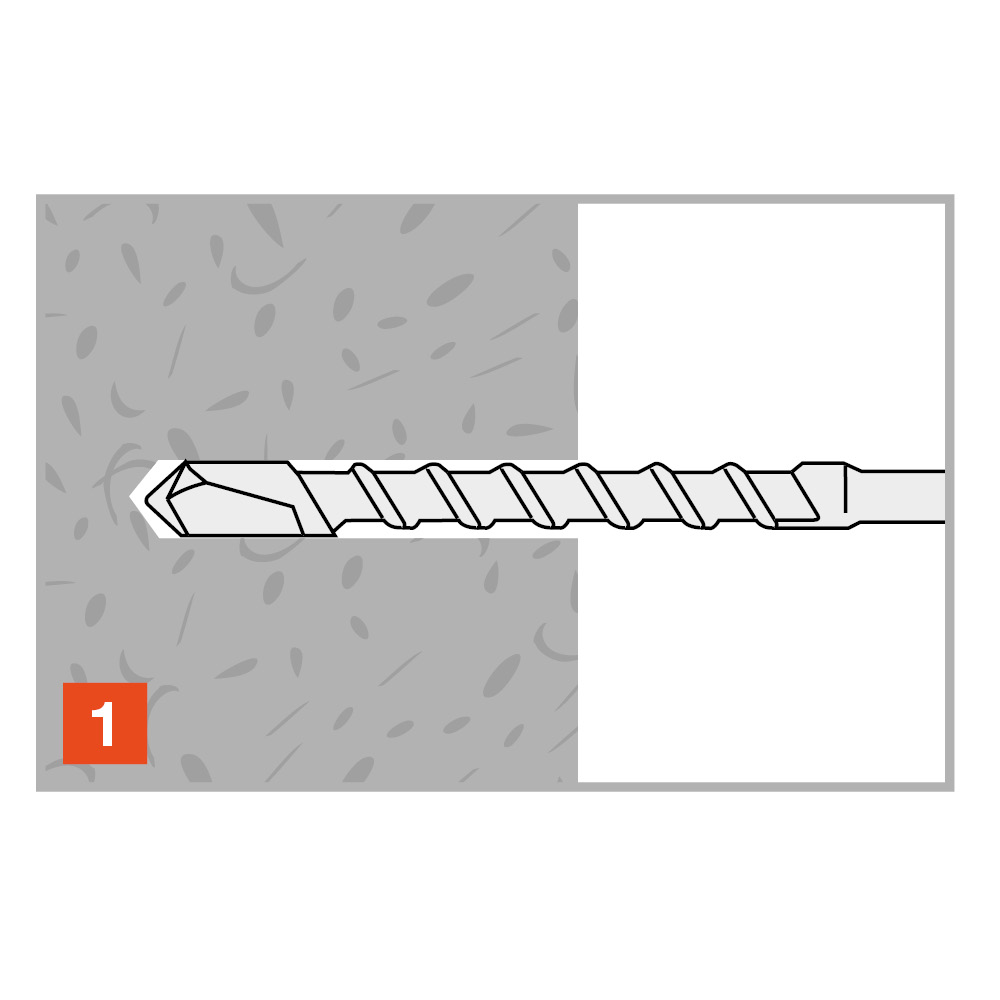

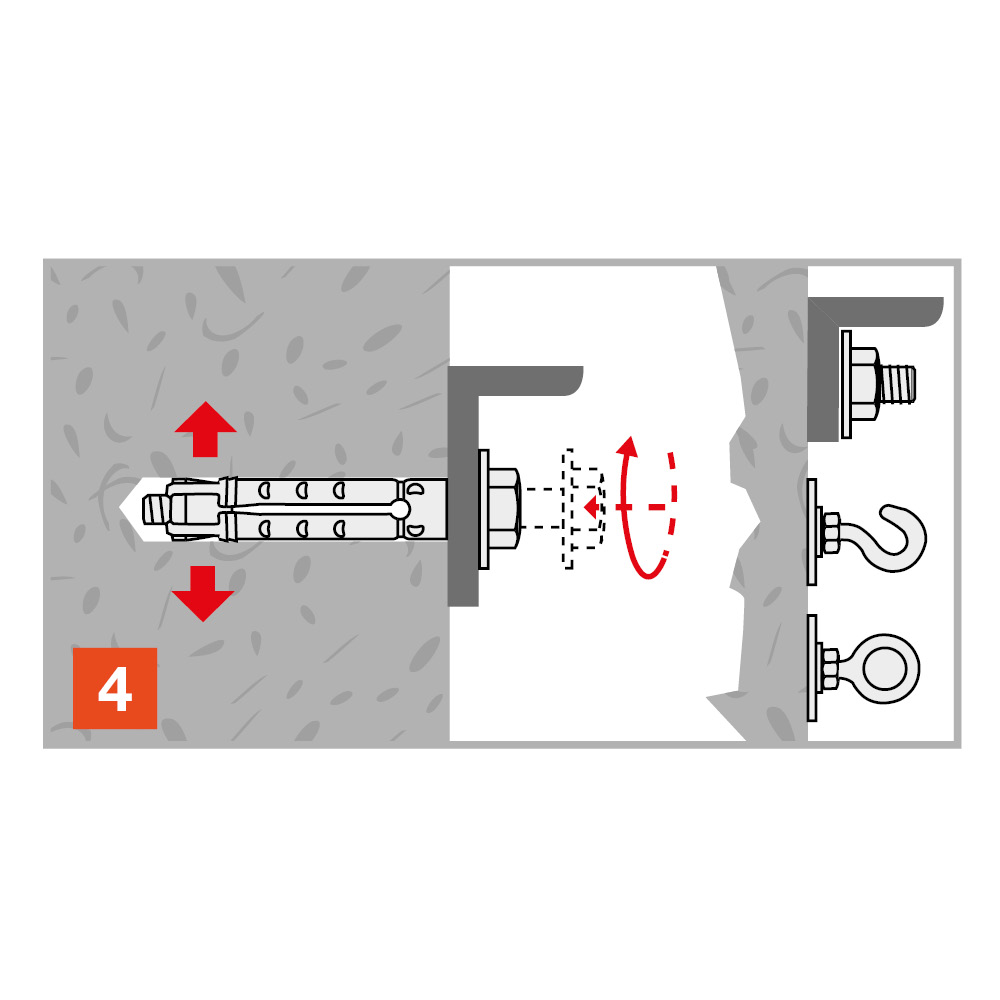

Installation
Installation
Installation data
| Art. nr. | Bezeichnung | Ø drilling hole [d0] [mm] | Min. drill depth [h1] [mm] | Ø boreholder [df] [mm] | Installation torque [Tinst] [Nm] | Embedment depth [hef] [mm] | Min. support thickness [hmin] [mm] |
|---|---|---|---|---|---|---|---|
| 73300B1205000 | FM-MP3 evo | 12 | 70 | 10 | 15 | 43 | 100 |
| 73300B1506000 | FM-MP3 evo | 15 | 80 | 12 | 30 | 50 | 100 |
| 73300B1808000 | FM-MP3 evo | 18 | 100 | 14 | 50 | 69 | 140 |
| 73301B1808000 | FM-MP3 evo | 18 | 100 | 14 | 50 | 69 | 140 |
| 73307B1004500 | FM-MP3 evo | 10 | 60 | 8 | 8 | 36 | 100 |
| 73307B1205000 | FM-MP3 evo | 12 | 70 | 10 | 15 | 43 | 100 |
| 73307B1506000 | FM-MP3 evo | 15 | 80 | 12 | 30 | 50 | 100 |
** Not covered by CE certification
Achs- und Randabstände - ETA-09/0067 Opt.7
| Art. nr. | Bezeichnung | min. Randabstand [cmin] [mm] | min. Achsabstand [smin] [mm] | charak. Randabstand [ccr,N] [mm] | charak. Achsabstand [scr,N] [mm] |
|---|---|---|---|---|---|
| 73300B1205000 | FM-MP3 evo | 45 | 45 | 65 | 130 |
| 73300B1506000 | FM-MP3 evo | 50 | 50 | 75 | 150 |
| 73300B1808000 | FM-MP3 evo | 75 | 75 | 104 | 208 |
**Ausführung RH ohne CE-Kennzeichnung
Afstande og kantafstande - ETA-10/0074
| Art. nr. | Bezeichnung | Characteristic spacing(5) - Scr,N [scr,N] [mm] | Characteristic edge distance [ccr,N] [mm] | Min. edge distance [cmin] [mm] | Min. spacing [smin] [mm] |
|---|---|---|---|---|---|
| 73300B1205000 | FM-MP3 evo | 45 | 45 | 200 | 130 |
| 73300B1506000 | FM-MP3 evo | 50 | 50 | 200 | 150 |
| 73300B1808000 | FM-MP3 evo | 75 | 75 | 200 | 210 |
* The above table values also apply to: evo S
Certificeringer
ETA godkendelse (European Technical Assessment)
fm-mp3-evo-eta-09-0067-en-op7-2015-02-24.pdf
(547.94 KB)
