SSH-PB

Sekskantet forbindelsesskrue Designserie

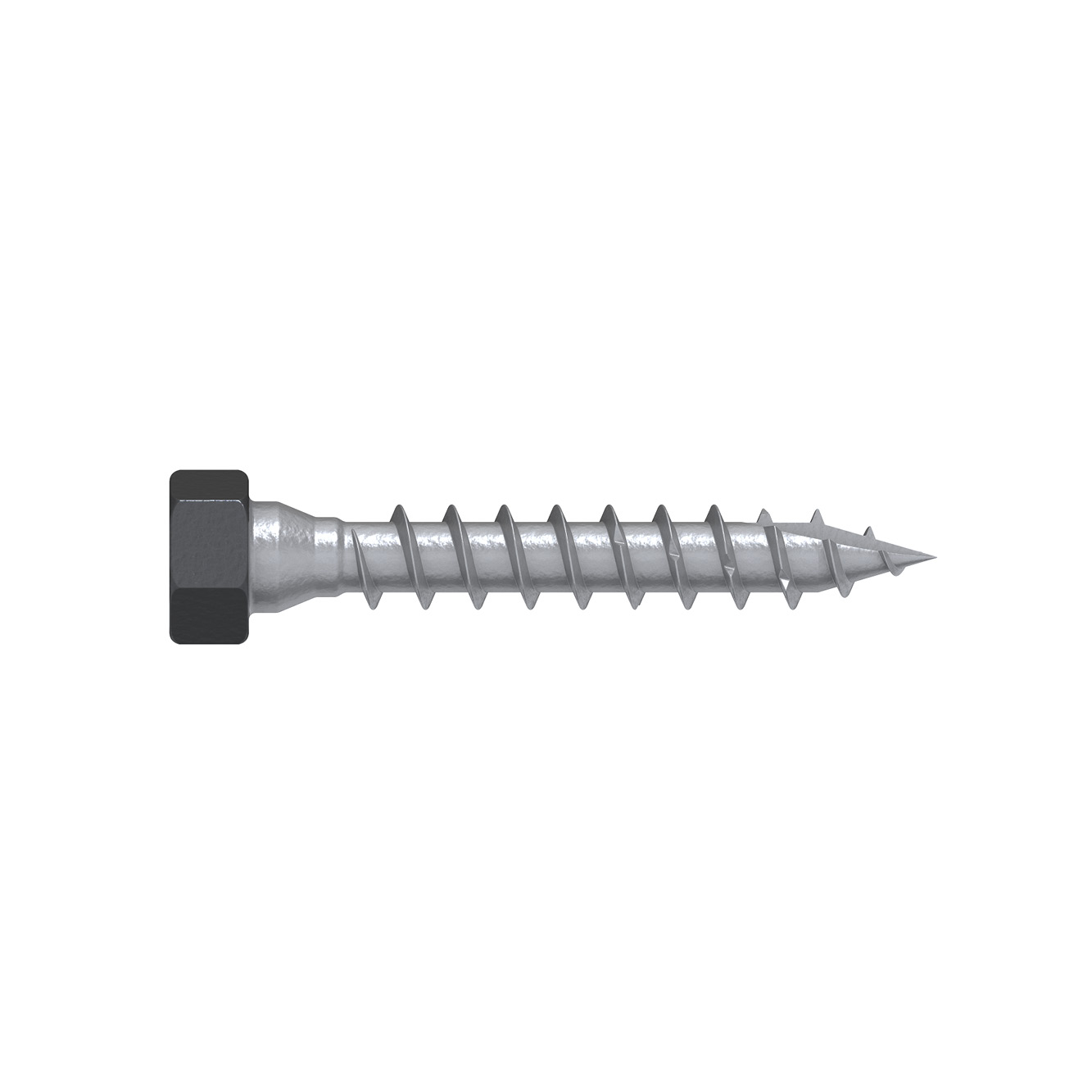

SSH PB is used together with connectors where high load capability is required, and with its black colored head, it is ideal for use with Design series connectors.

The conical shape under the head makes a perfect fitting to the connector hole, creating a firm assembly. Suitable for exterior use. The cut point type 17 prevents cracking, and the milling thread and serrated thread reduce the insertion torque. SSH has both 6 lobe drive and a hexagonal head, enabling mounting both with bits or with sleeves.

CE mærket
CE mærket
Aftalegrundlag
Aftalegrundlag
Ny
Ny
Anvendelsesklasse 3
Anvendelsesklasse 3
EPD
EPD
Impreg® +
Impreg® +
Outdoor
Outdoor

Produktinformationer

Billeder

Egenskaber

Material

  • Impreg®+ belægning

Benefits

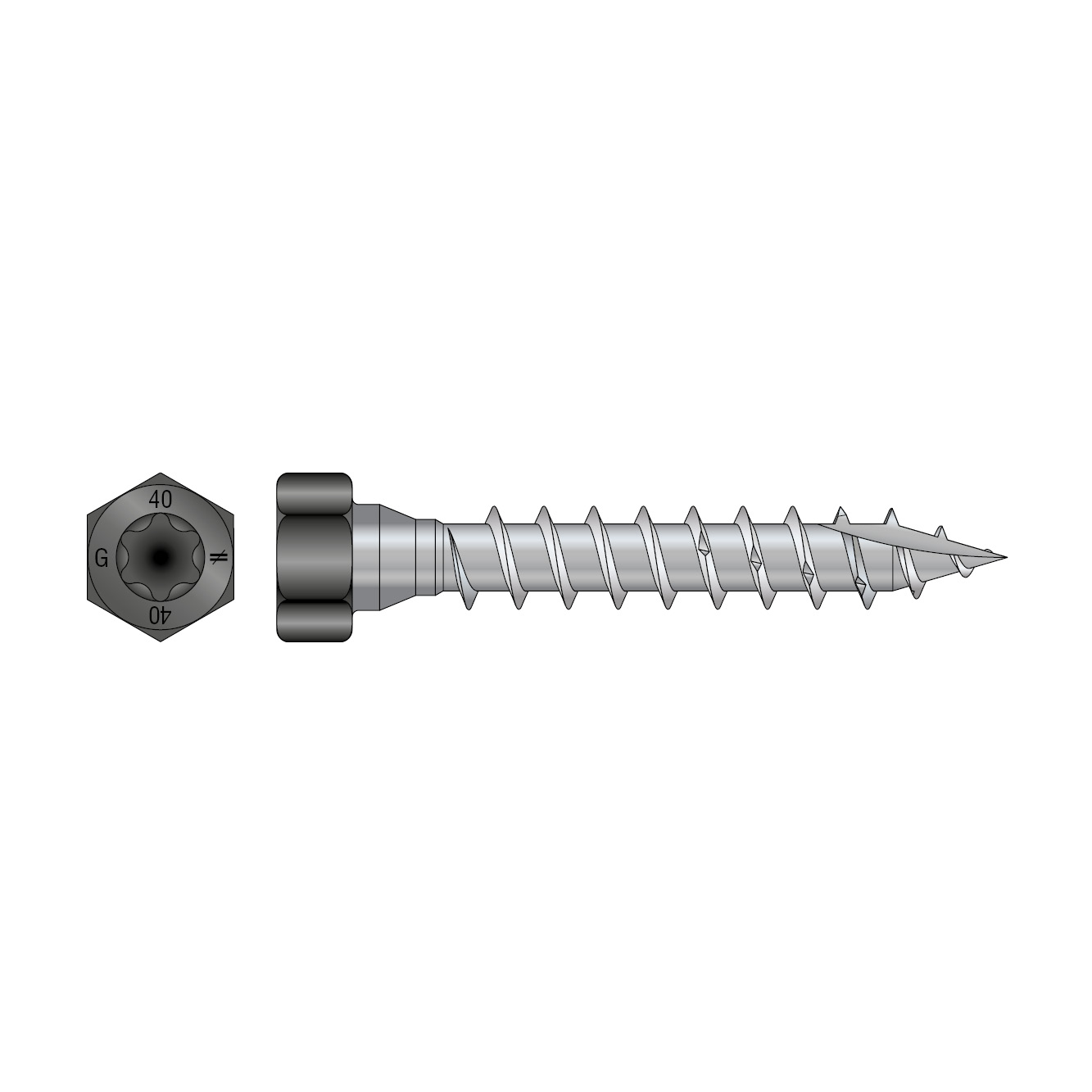

  • Sekskantet hoved med integreret 6-fløjet drev
  • Sort hoved, der passer til stik i designserien
  • Kegle for optimal pasform
  • Takket grov gevind
  • Type 17-punkt

Applikationer

Assemblies

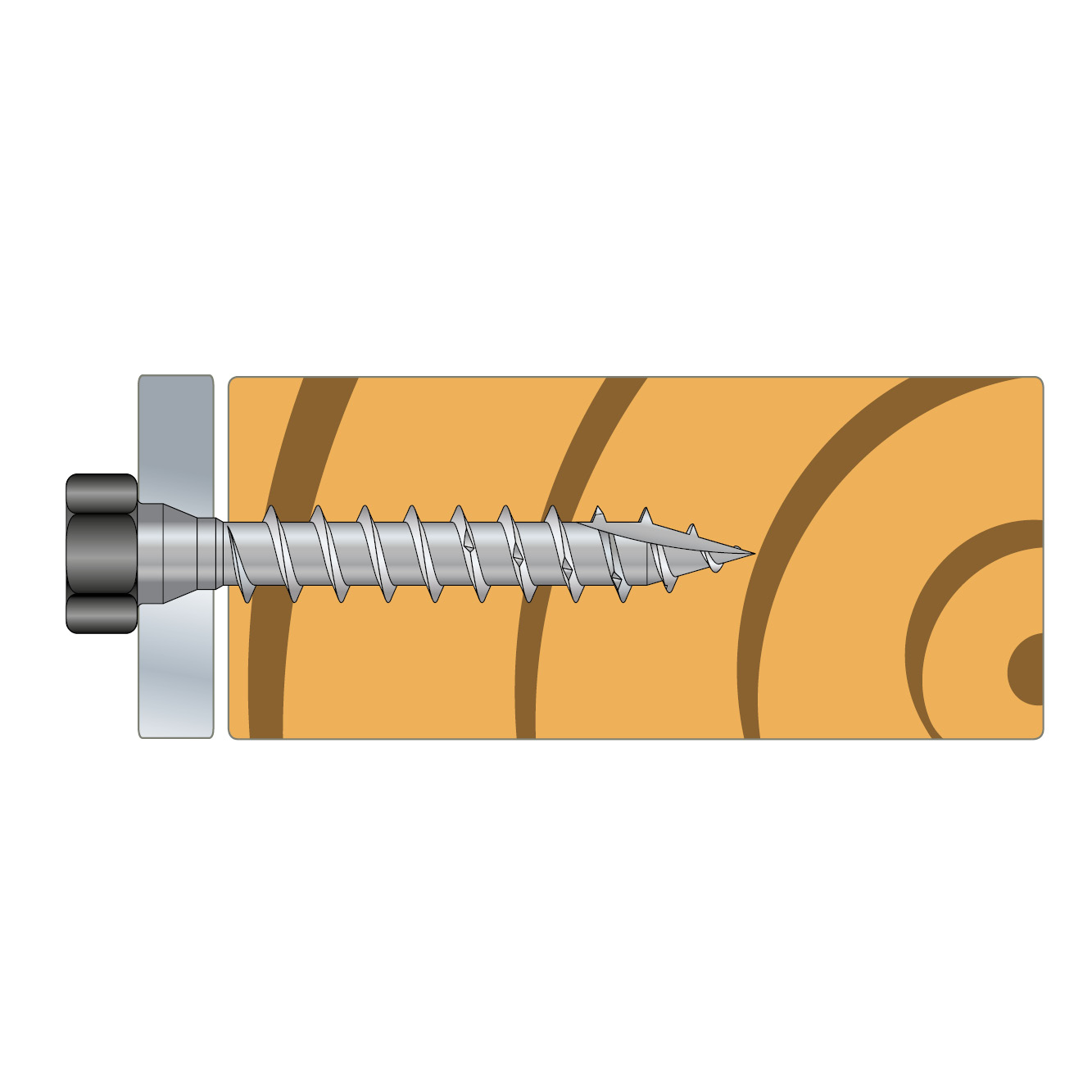

  • Connectors to wood

When to use

  • Suitable for outdoor applications

Teknisk data

Product dimensions

Dimensioner

ReferenceDimensioner
Best. nr.Dimensioner[mm]Andre
d[mm]l[mm]dₕ[mm]ht[mm]d₁[mm]lg[mm]duₕ[mm]Bit[mm]Gevind[mm]Antal pr. kasseVægt[kg]
SSH8.0X40PBSSH8.0x40PB840135.755.1328.2T-40Total50.00.014

Characteristic properties

ReferenceScrew Parameters
Produktets karakteristiske egenskaber
Bøjnings-
styrke - My,ₖ[Nm]
Karakteristisk udtræknings
parameter - fₐₓ,ₖ,₉₀°[N/mm²]
Karakteristisk gennemtræks
parameter - fₕₑₐd,ₖ[N/mm²]
Karakteristisk
trækstyrke - fₜₑₙₛ,ₖ[kN]
Karakteristisk
vridningsstyrke - fₜₒᵣ,ₖ[Nm]
Vridnings-
forhold
SSH8.0X40PB25.313.919.524.126.4≥ 1,5

Steel to Timber characteristic capacities

ReferenceScrew Loads
Characteristic Capacites - Steel to Timber C24[kN]
Shear - Thin plateShear - Thick plateAxial
Rv,₀,ₛₜ,ₖ[kN]Rv,₉₀,ₛₜ,ₖ[kN]Rv,0,st,k[kN]Rv,90,st,k[kN]Rₐₓ,ₛₜ,ₖ[kN]
SSH8.0X40PB2.32.34.34.34

Shear capacities are given for thick (tst = d) and thin (tst = 0,5xd) steel plates under the following configurations:

Load axis at 0° from timber grain Rv.0°.k

Load axis at 90° from timber grain Rv.90°.k

These capacities are valid for C24 timber grades or higher.
For intermediate steel thicknesses, capacities shall be calculated by linear interpolation between the limiting thin and thick plate values.
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.
