LSF
Skirting Screw

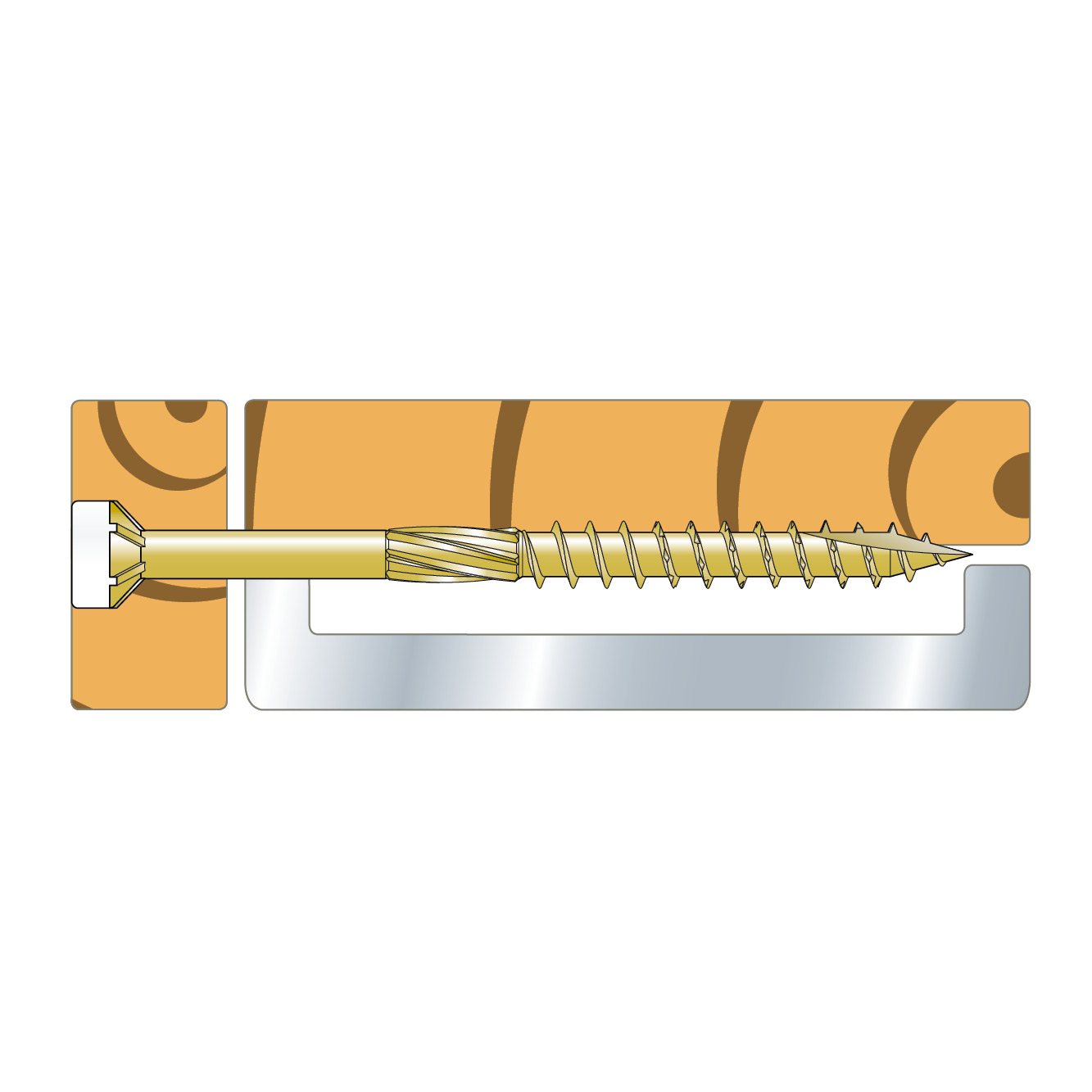

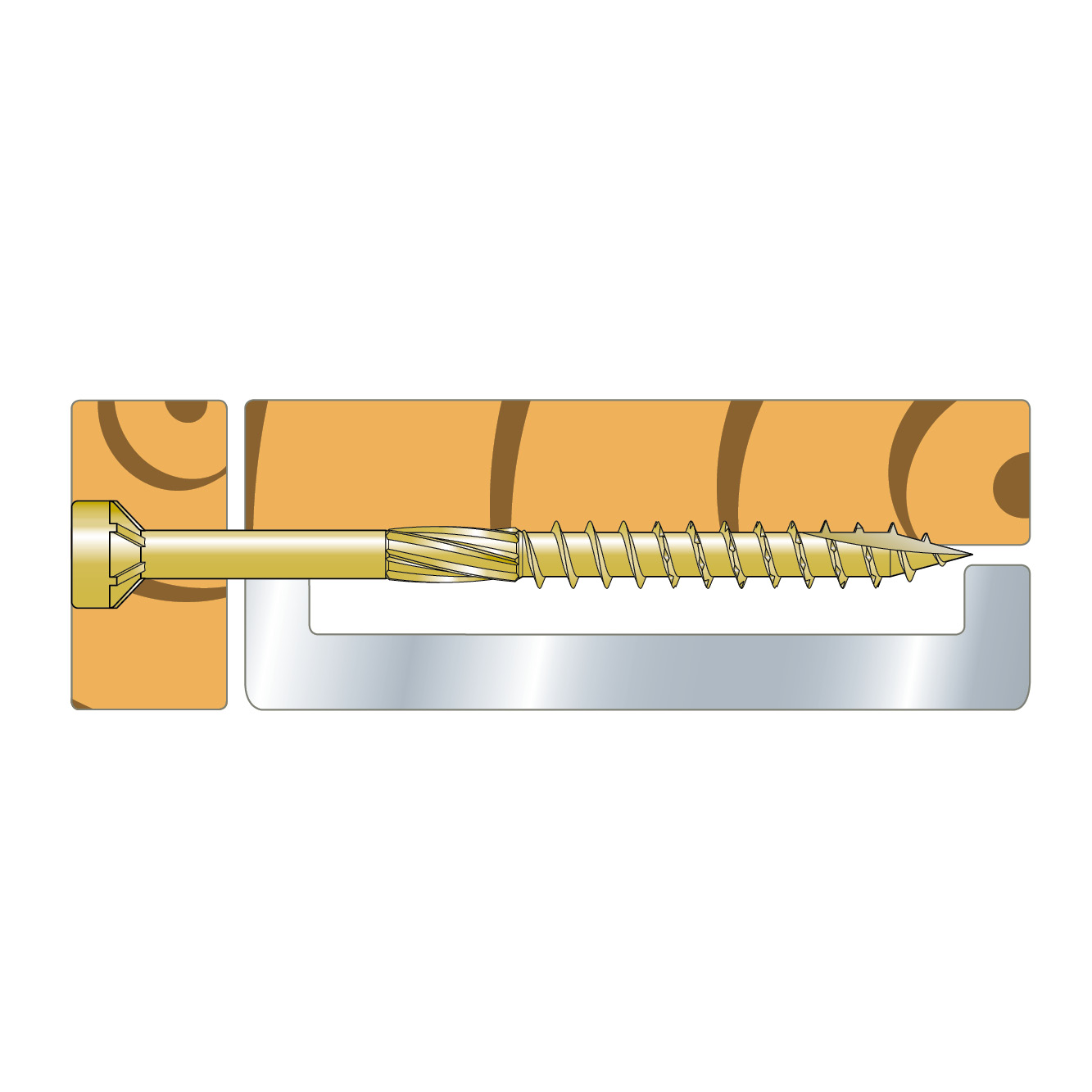

Used indoors for fixing skirting to underlying wood material. The small screw head has ribs on its underside for easy countersinking and a cutpoint to counteract splitting of the woodwork. The screw can also be fixed to a steel base with a maximum thickness of 0.6mm.
Anvendelsesklasse 1
Gulkromatiseret
Indoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Discontinued Products
Teknisk data

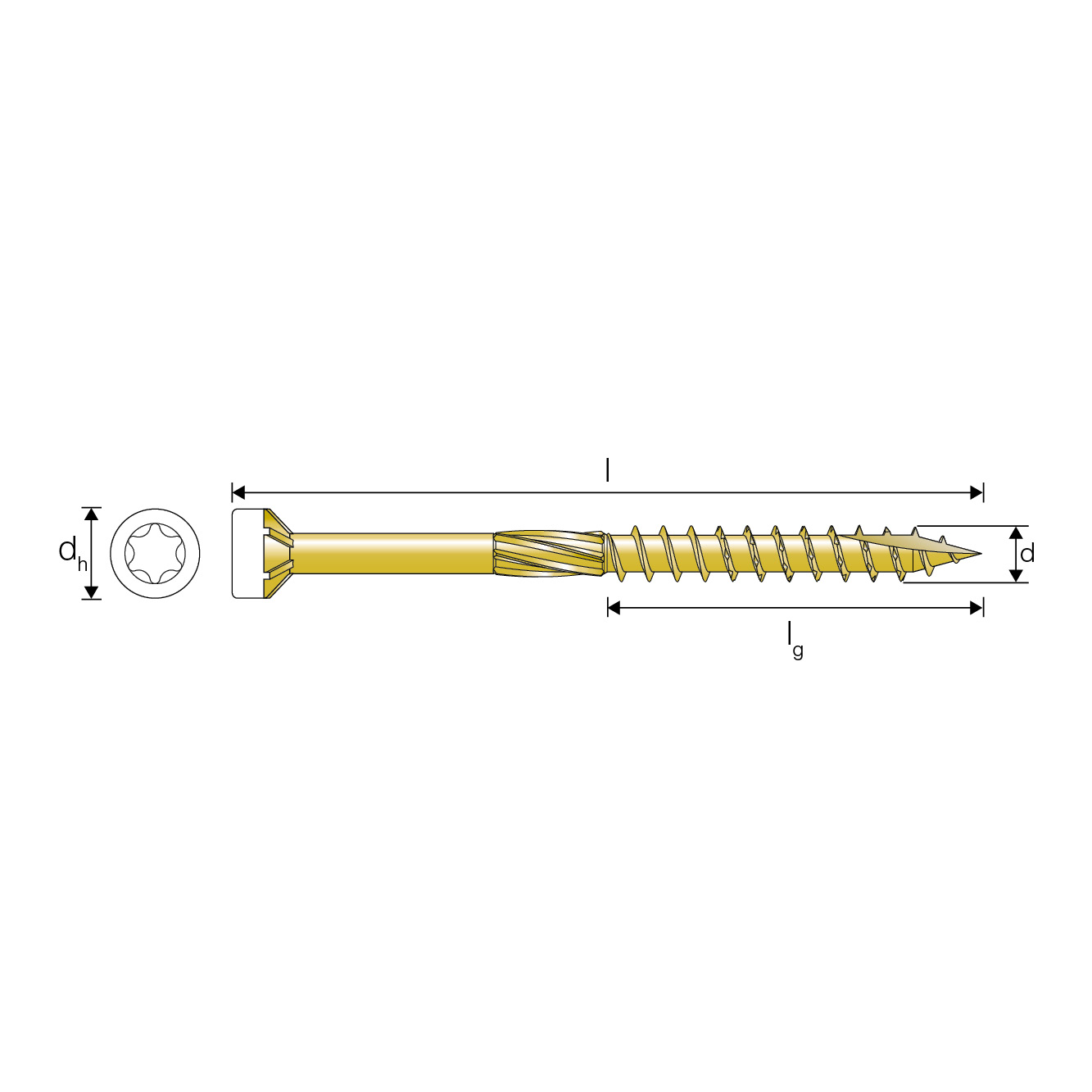

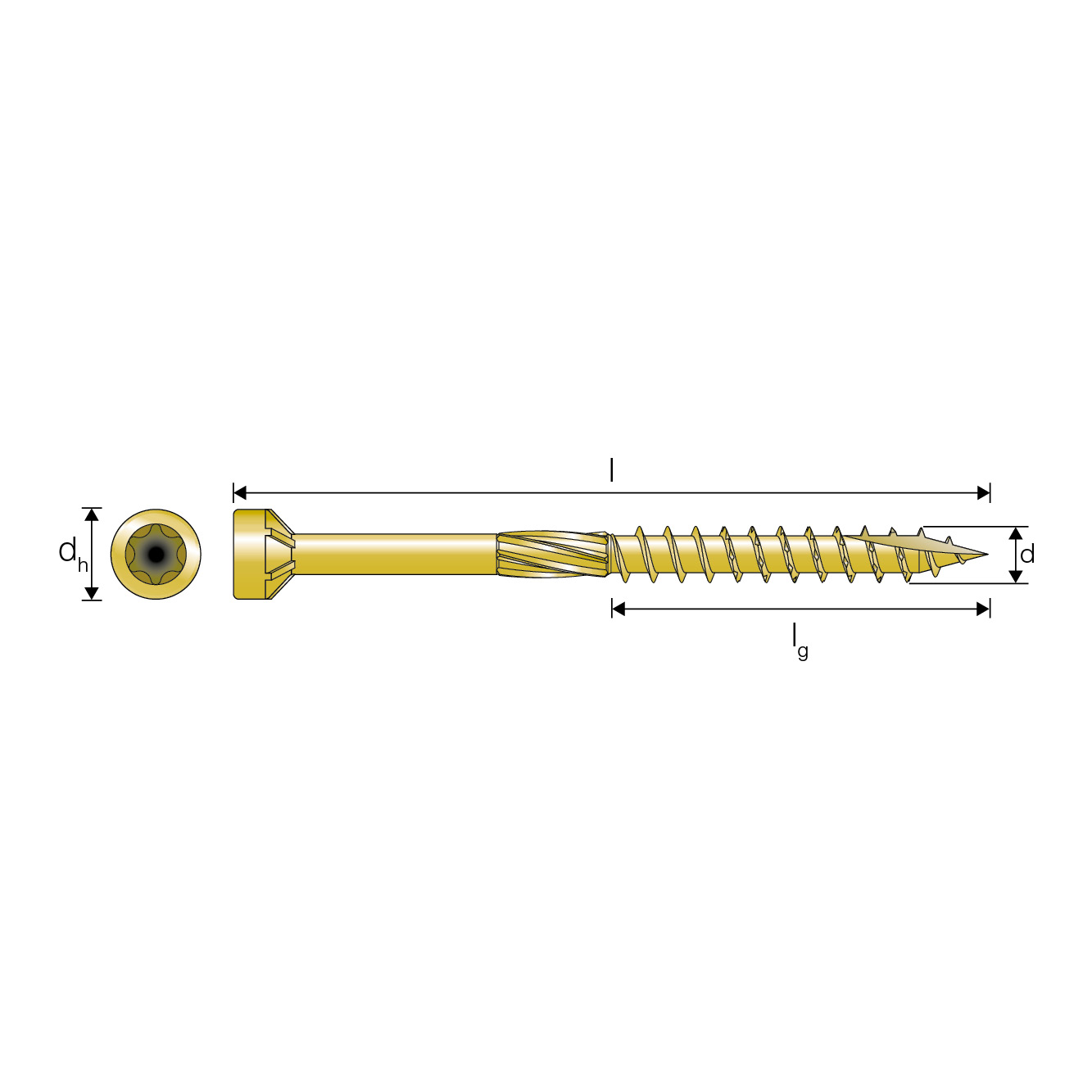

Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | ||||||
| LSF3.0X35 | 75319 | 2055679 | 55836143 | 3 | 35 | 5.5 | 2 | 23 | 12 | TX10 | 200 | 0.002 |
| LSF3.0X42 | 75321 | 2055680 | 55836132 | 42 | 5.5 | 2 | 27 | 15 | TX10 | 200 | 0.002 | |
| LSF3.0X57 | 75322 | 2055681 | 55836177 | 57 | 5.5 | 2 | 37 | 20 | TX10 | 200 | 0.003 | |
Lakeret hoved RAL 9010
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | tfix | bit | |||||
| LSF3.0X42 RAL9010 | 75323 | 2055682 | 55836158 | 3 | 42 | 5.5 | 2 | 27 | 15 | TX10 | 200 |
| LSF3.0X57 RAL9010 | 75324 | 2055683 | 55836162 | 57 | 5.5 | 2 | 37 | 20 | TX10 | 200 | |
