TSBW
Sorterede undergulvskruer

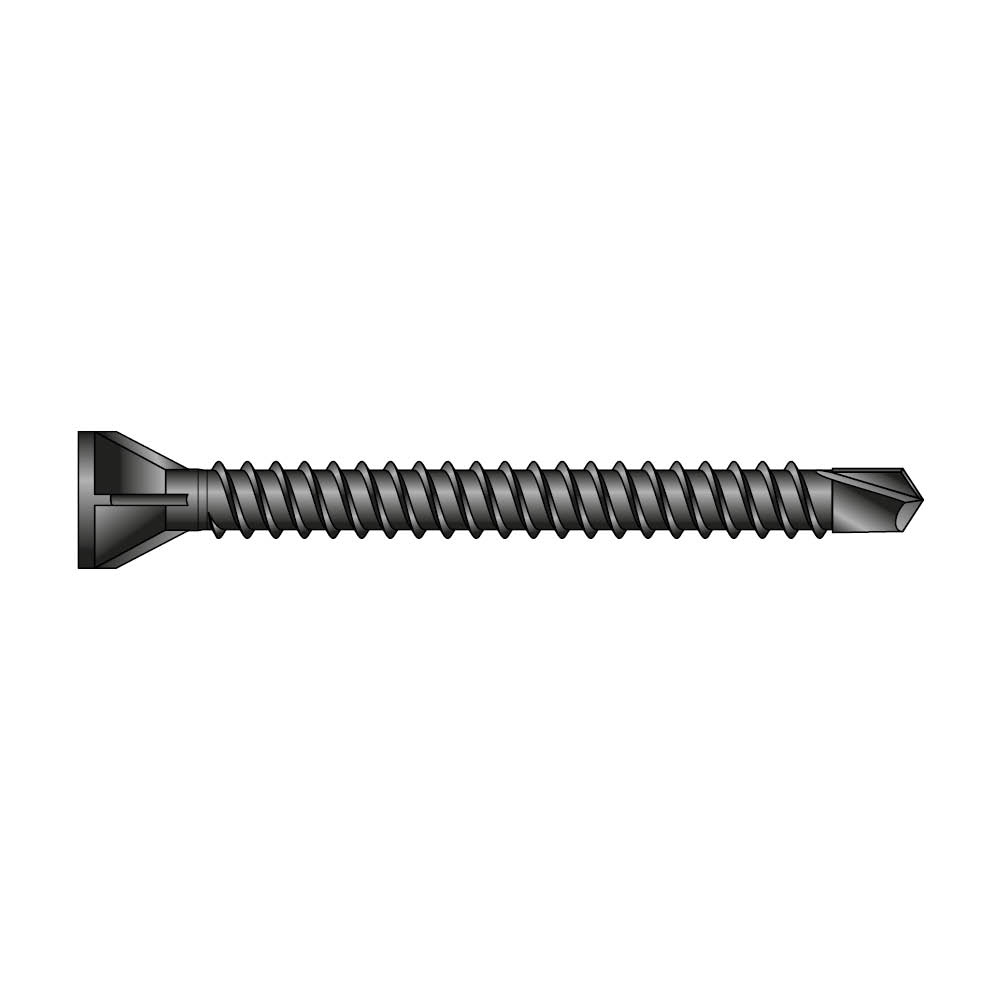

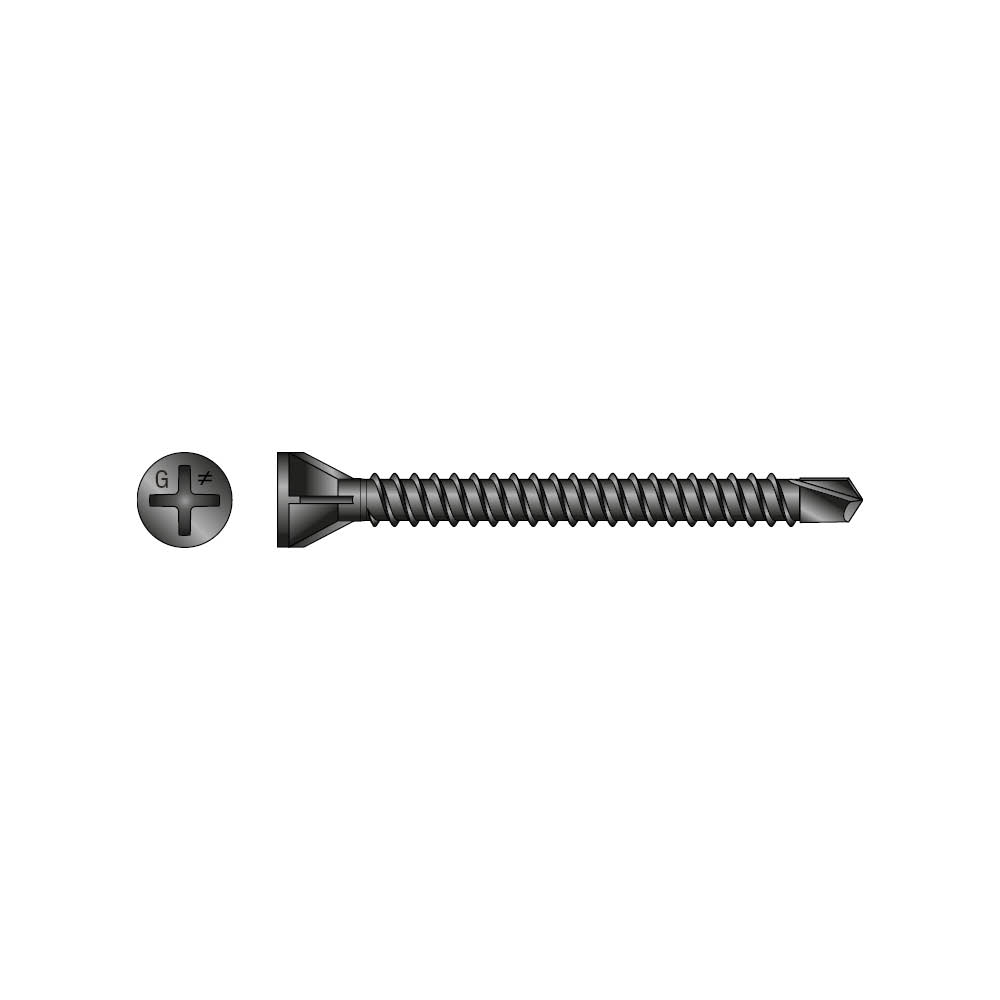

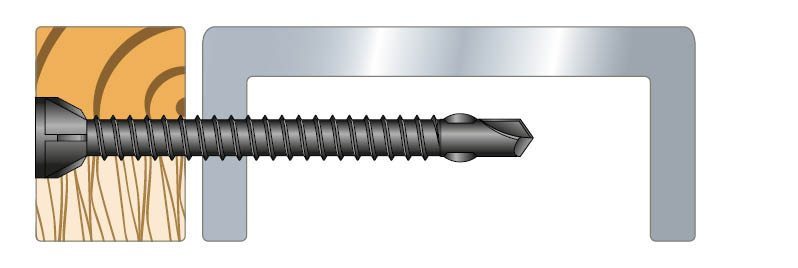

For Subfloor max. 22 mm in steel beams max 3 mm. The phosphated treatment keeps the point sharp, and the wing technology keeps the screw from breaking during drilling.
CE mærket
Anvendelsesklasse 1
Fosfateret
Indoor
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| TSBW3.9X28 | 75717 | 2056064 | 55840657 | 3.9 | 28 | 6.8 | - | - | - | - | - | - | - | 1000 | 0.002 |
| TSBW3.9X42 | 75718 | 2056065 | 55840661 | 42 | 6.8 | - | - | - | - | - | - | - | 1000 | 0.003 | |
