TTZNFS

Træskrue, Impreg®+

TTZNFS-skruen er undersænkede skruer til bærende trækonstruktioner. Skruerne har et savtakket gevind for at reducere iskruningsmomentet og en fibercut spids, som reducerer risikoen for af træet flækker. Skruer på 80 mm eller længere har en ekstra fræseribbe for at reducere iskruningsmomentet yderligere.

Teknisk datablad

CE mærket

Aftalegrundlag

Anvendelsesklasse 2

Impreg® +

Outdoor

EPD

Fastener Designer

Produktinformationer

Billeder

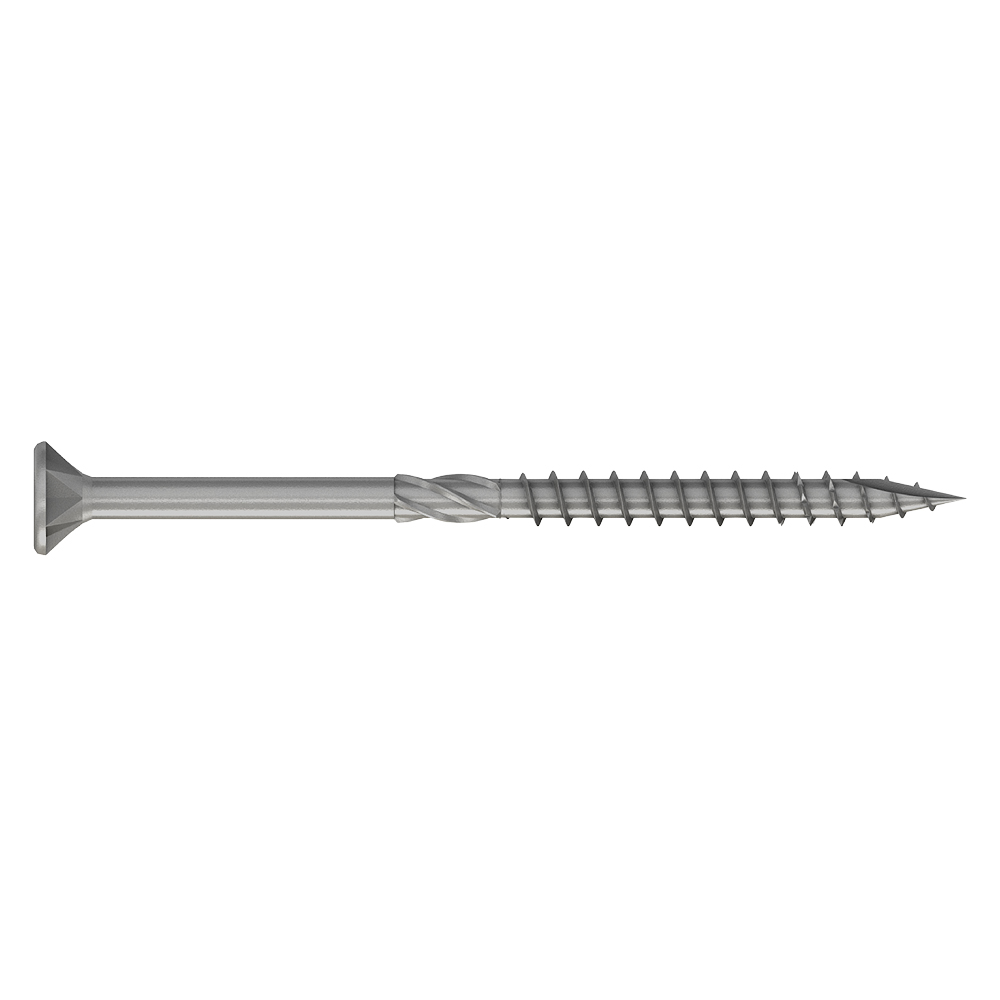

Egenskaber

TX-recess
Undersænket hoved giver en jævn finish
Fræseribbe reducerer iskruningsmomentet
Fibercut spids (type 17 spids) reducerer risikoen for at træet flækker under installationen
Savtakket gevind
Impreg^®+

Applikationer

Anvendelse

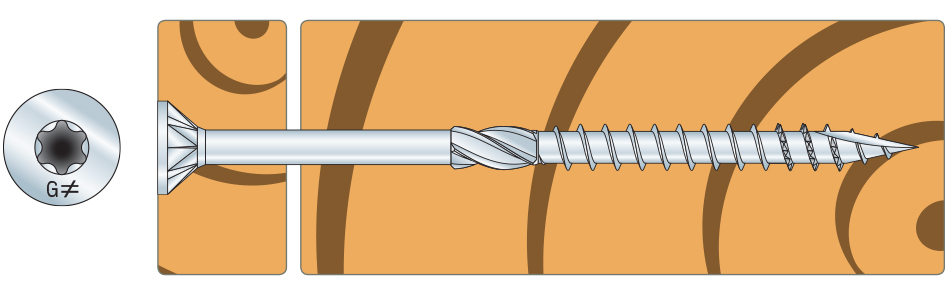

Træ på træ

Teknisk data

Dimensioner

Dimensioner


Art. nr.	Best. nr.	DB nr.	NOBB nr.	Dimensioner [mm]							Antal pr. kasse	Vægt [kg]
Art. nr.	Best. nr.	DB nr.	NOBB nr.	d	l	d_h	d₁	l_g	Bit	Gevind	Antal pr. kasse	Vægt [kg]
TTZNFS3.0X16	76562	2213880	57917122	3	16	6	-	11	T-10	FT	200	0.001
TTZNFS3.0X20	76568	2213893	57917137		20	6	-	15	T-10	FT	200	0.001
TTZNFS3.0X25	76569	2213894	57917141		25	6	-	20	T-10	FT	200	0.001
TTZNFS3.0X30	76570	2213895	57917156		30	6	-	25	T-10	FT	200	0.001
TTZNFS3.5X16*	74476	1949971	53294303	3.5	16	7	2.2	10	T-15	FT	200	0.001
TTZNFS3.5X20*	74477	1949972	53294318		20	7	2.2	14	T-15	FT	200	0.001
TTZNFS3.5X25	76571	2213898	57917160		25	7	2.2	20	T-15	FT	200	0.001
TTZNFS3.5X30*	74478	1949973	53294322		30	7	2.2	24	T-15	FT	200	0.001
TTZNFS3.5X35	76572	2213903	57917175		35	7	2.2	30	T-15	FT	200	0.002
TTZNFS3.5X40	76573	2213910	57917186		40	7	2.2	35	T-15	FT	200	0.002
TTZNFS3.5X50	76574	2213917	57917194		50	7	2.2	30	T-15	PT	200	0.002
TTZNFS4.0X20*	74479	1949974	53294337	4	20	8	2.5	10	T-20	FT	200	0.001
TTZNFS4.0X25	76575	2214211	57917205		25	8	2.5	20	T-20	FT	200	0.002
TTZNFS4.0X30*	74480	1949975	53294341		30	8	2.5	20	T-20	FT	200	0.002
TTZNFS4.0X35	76576	2214212	57917213		35	8	2.5	30	T-20	FT	200	0.002
TTZNFS4.0X40	76577	2214213	57917224		40	8	2.5	35	T-20	FT	200	0.002
TTZNFS4.0X45	76578	2214214	57917232		45	8	2.5	29	T-20	PT	200	0.002
TTZNFS4.0X50	76579	2214215	57917243		50	8	2.5	30	T-20	PT	200	0.003
TTZNFS4.0X60	76580	2214216	57917258		60	8	2.5	35	T-20	PT	200	0.003
TTZNFS4.0X70	76581	2214220	57917262		70	8	2.5	40	T-20	PT	100	0.004
TTZNFS4.5X25	74481	1949976	53294356	4.5	25	8.4	2.8	20	T-20	FT	200	0.002
TTZNFS4.5X30	74482	1949977	53294360		30	8.4	2.8	25	T-20	FT	200	0.002
TTZNFS4.5X35	76582	2214223	57917277		35	8.4	2.8	30	T-20	FT	200	0.002
TTZNFS4.5X40	74483	1949978	53294375		40	8.4	2.8	35	T-20	PT	200	0.003
TTZNFS4.5X45	76561	2214224	57917281		45	8.4	2.8	29	T-20	PT	200	0.003
TTZNFS4.5X50	74484	1949979	53294386		50	8.4	2.8	30	T-20	PT	200	0.003
TTZNFS4.5X60	74485	1949980	53294394		60	8.4	2.8	35	T-20	PT	200	0.004
TTZNFS4.5X70	74486	1949981	53294405		70	8.4	2.8	40	T-20	PT	100	0.005
TTZNFS4.5X80	76563	2214225	57917296		80	8.4	2.8	50	T-20	PTM	100	0.005
TTZNFS5.0X30	76564	-	57917300	5	30	9.5	3.2	25	T-25	FT	200	0.003
TTZNFS5.0X30-T20	76535	2213838	-		30	9.5	3.2	25	T-20	FT	200	0.003
TTZNFS5.0X40	76565	-	57917315		40	8.5	3.2	35	T-25	FT	200	0.004
TTZNFS5.0X40-T20	76536	2213847	-		40	9.5	3.2	35	T-20	FT	200	0.003
TTZNFS5.0X50	74489	1949984	53294424		50	9.5	3.2	30	T-25	PT	200	0.004
TTZNFS5.0X50-T20	76537	2213851	-		50	9.5	3.2	30	T-20	PT	200	0.004
TTZNFS5.0X60	74490	1949985	53294432		60	9.5	3.2	35	T-25	PT	200	0.005
TTZNFS5.0X60-T20	76538	2213854	-		60	9.5	3.2	35	T-20	PT	200	0.005
TTZNFS5.0X70	74491	1949986	53295404		70	9.5	3.2	40	T-25	PT	100	0.006
TTZNFS5.0X70-T20	76539	2213860	-		70	9.5	3.2	40	T-20	PT	100	0.006
TTZNFS5.0X80	74493	1949988	53295423		80	9.5	3.2	40	T-25	PTM	100	0.007
TTZNFS5.0X80-T20	76540	2213866	-		80	9.5	3.2	40	T-20	PTM	100	0.007
TTZNFS5.0X90	74495	1949990	53295442		90	9.5	3.2	45	T-25	PTM	100	0.007
TTZNFS5.0X90-T20	76541	2213871	-		90	9.5	3.2	45	T-20	PTM	100	0.007
TTZNFS5.0X100	74487	1949982	53295385		100	9.5	3.2	60	T-25	PTM	100	0.008
TTZNFS5.0X100-450	74510	1950005	53295393		100	9.5	3.2	60	T-25	PTM	450	0.008
TTZNFS5.0X100-T20	76542	2213874	-		100	9.5	3.2	60	T-20	PTM	100	0.008
TTZNFS5.0X120	74488	1949983	53294413		120	9.5	3.2	60	T-25	PTM	100	0.009
TTZNFS5.0X120-T20	76543	2213876	-		120	9.5	3.2	60	T-20	PTM	100	0.009
TTZNFS6.0X40	76566	2214226	57917326	6	40	11.6	3.8	34	T-30	FT	200	0.005
TTZNFS6.0X50	76567	2214227	57917334		50	11.6	3.8	30	T-30	PT	200	0.006
TTZNFS6.0X60	74504	1949999	53294477		60	11.6	3.8	35	T-30	PT	200	0.007
TTZNFS6.0X70	74505	1950000	53294481		70	11.6	3.8	40	T-30	PT	100	0.008
TTZNFS6.0X80	74506	1950001	53295506		80	11.6	3.8	40	T-30	PTM	100	0.01
TTZNFS6.0X90	74508	1950003	53295525		90	11.6	3.8	45	T-30	PTM	100	0.011
TTZNFS6.0X100	74497	1949992	53295461		100	11.6	3.8	60	T-30	PTM	100	0.012
TTZNFS6.0X120	74499	1949994	53295480		120	11.6	3.8	70	T-30	PTM	100	0.015
TTZNFS6.0X140	74501	1949996	53294443		140	11.6	3.8	70	T-30	PTM	100	0.016
TTZNFS6.0X160	74502	1949997	53294458		160	11.6	3.8	70	T-30	PTM	100	0.018
TTZNFS6.0X180	74503	1949998	53294462		180	11.6	3.8	70	T-30	PTM	100	0.021

* ikke CE-mærket

FT = Full Thread (fuldgevind)
PT = Partial Thread (delgevind)
PTM = Partial Thread with Milling thread (delgevind med fræseribbe)

Produktets karakteristiske egenskaber

Art. nr.	Karakteristisk bøjningsstyrke [M_y.k] [Nmm]	Karakteristisk udtræksparameter [f_ax.k.90°] [N/mm²]	Karakteristisk hoved gennemtræksparameter [f_head.k] [N/mm²]	Karakteristisk trækstyrke [f_tens.k] [kN]
TTZNFS4.5X25	4660	14.7	15.6	7.8
TTZNFS4.5X30	4660	14.7	15.6	7.8
TTZNFS4.5X35	4660	14.7	15.6	7.8
TTZNFS4.5X40	4660	14.7	15.6	7.8
TTZNFS4.5X45	4660	14.7	15.6	7.8
TTZNFS4.5X50	4660	14.7	15.6	7.8
TTZNFS4.5X60	4660	14.7	15.6	7.8
TTZNFS4.5X70	4660	14.7	15.6	7.8
TTZNFS4.5X80	4660	14.7	15.6	7.8
TTZNFS5.0X30	6720	15	17.1	7.9
TTZNFS5.0X30-T20	6720	15	17.1	7.9
TTZNFS5.0X40	6720	15	17.1	7.9
TTZNFS5.0X40-T20	6720	15	17.1	7.9
TTZNFS5.0X50	6720	15	17.1	7.9
TTZNFS5.0X50-T20	6720	15	17.1	7.9
TTZNFS5.0X60	6720	15	17.1	7.9
TTZNFS5.0X60-T20	6720	15	17.1	7.9
TTZNFS5.0X70	6720	15	17.1	7.9
TTZNFS5.0X70-T20	6720	15	17.1	7.9
TTZNFS5.0X80	6720	15	17.1	7.9
TTZNFS5.0X80-T20	6720	15	17.1	7.9
TTZNFS5.0X90	6720	15	17.1	7.9
TTZNFS5.0X90-T20	6720	15	17.1	7.9
TTZNFS5.0X100	6720	15	17.1	7.9
TTZNFS5.0X100-450	6720	15	17.1	7.9
TTZNFS5.0X100-T20	6720	15	17.1	7.9
TTZNFS5.0X120	6720	15	17.1	7.9
TTZNFS5.0X120-T20	6720	15	17.1	7.9
TTZNFS6.0X40	9500	12.5	16.6	11.1
TTZNFS6.0X50	9500	12.5	16.6	11.1
TTZNFS6.0X60	9500	12.5	16.6	11.1
TTZNFS6.0X70	9500	12.5	16.6	11.1
TTZNFS6.0X80	9500	12.5	16.6	11.1
TTZNFS6.0X90	9500	12.5	16.6	11.1
TTZNFS6.0X100	9500	12.5	16.6	11.1
TTZNFS6.0X120	9500	12.5	16.6	11.1
TTZNFS6.0X140	9500	12.5	16.6	11.1
TTZNFS6.0X160	9500	12.5	16.6	11.1
TTZNFS6.0X180	9500	12.5	16.6	11.1

Installation

Afstand og kantafstand - Skruer med forskydningsbelastning

Art. nr.	Minimumskantafstand og -afstand for forskydningsbelastede skruer [mm]
	Vinkel mellem belastning og korn = 0°						Vinkel mellem belastning og korn = 90°
	a_1.0	a_2.0	a_3.t.0	a_3.c.0	a_4.t.0	a_4.c.0	a_1.90	a_2.90	a_3.t.90	a_3.c.90	a_4.t.90	a_4.c.90
TTZNFS4.5X25	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X30	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X35	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X40	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X45	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X50	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X60	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X70	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X80	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X60	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X60-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X70	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X70-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X80	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X80-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X90	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X90-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100-450	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X120	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X120-T20	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X40	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X60	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X70	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X80	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X90	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X100	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X120	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X140	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X160	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X180	-	-	-	-	-	-	-	-	-	-	-	-

a₁ and a₂ can be multiplied by 0.85 for panel/timber assembly, and by 0.7 for steel/timber assembly.

Afstand og kantafstand - Aksialt belastede skruer

Art. nr.	Minimum kantafstand og afstand for aksialt belastede skruer [mm]
Art. nr.	a₁	a₂	a_3.c	a_4.c
TTZNFS4.5X25	-	-	-	-
TTZNFS4.5X30	-	-	-	-
TTZNFS4.5X35	-	-	-	-
TTZNFS4.5X40	-	-	-	-
TTZNFS4.5X45	-	-	-	-
TTZNFS4.5X50	-	-	-	-
TTZNFS4.5X60	-	-	-	-
TTZNFS4.5X70	-	-	-	-
TTZNFS4.5X80	-	-	-	-
TTZNFS5.0X30	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-
TTZNFS5.0X40	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-
TTZNFS5.0X50	-	-	-	-
TTZNFS5.0X50-T20	-	-	-	-
TTZNFS5.0X60	-	-	-	-
TTZNFS5.0X60-T20	-	-	-	-
TTZNFS5.0X70	-	-	-	-
TTZNFS5.0X70-T20	-	-	-	-
TTZNFS5.0X80	-	-	-	-
TTZNFS5.0X80-T20	-	-	-	-
TTZNFS5.0X90	-	-	-	-
TTZNFS5.0X90-T20	-	-	-	-
TTZNFS5.0X100	-	-	-	-
TTZNFS5.0X100-450	-	-	-	-
TTZNFS5.0X100-T20	-	-	-	-
TTZNFS5.0X120	-	-	-	-
TTZNFS5.0X120-T20	-	-	-	-
TTZNFS6.0X40	-	-	-	-
TTZNFS6.0X50	-	-	-	-
TTZNFS6.0X60	-	-	-	-
TTZNFS6.0X70	-	-	-	-
TTZNFS6.0X80	-	-	-	-
TTZNFS6.0X90	-	-	-	-
TTZNFS6.0X100	-	-	-	-
TTZNFS6.0X120	-	-	-	-
TTZNFS6.0X140	-	-	-	-
TTZNFS6.0X160	-	-	-	-
TTZNFS6.0X180	-	-	-	-

Abacus

Timber to Timber characteristic capacities

Art. nr.	Product characteristic capacities - Timber to Timber C24
	Axial resistance		Shear resistance parallel to the grain depending of t₁ [Rv.0.k] [kN]							Shear resistance perpendicular to the grain depending of t₁ [Rv.90.k] [kN]
	t₁ [mm]	R_ax.k [kN]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]
TTZNFS4.5X25	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X30	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X35	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X40	5	1.19	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X45	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X50	20	1.19	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X60	25	1.19	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X70	30	1.19	1.41	-	-	-	-	-	-	1.41	-	-	-	-	-	-
TTZNFS4.5X80	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50-T20	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X60	25	1.64	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X60-T20	25	1.64	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X70	30	1.64	1.81	-	-	-	-	-	-	1.81	-	-	-	-	-	-
TTZNFS5.0X70-T20	30	1.64	1.81	-	-	-	-	-	-	1.81	-	-	-	-	-	-
TTZNFS5.0X80	40	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X80-T20	40	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X90	45	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X90-T20	45	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X100	40	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X100-450	40	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X100-T20	40	1.64	1.81	1.81	1.81	-	-	-	-	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X120	60	1.64	1.81	1.81	1.81	1.81	-	-	-	1.81	1.81	1.81	1.81	-	-	-
TTZNFS5.0X120-T20	60	1.64	1.81	1.81	1.81	1.81	-	-	-	1.81	1.81	1.81	1.81	-	-	-
TTZNFS6.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X60	25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X70	30	2.73	2.35	-	-	-	-	-	-	2.35	-	-	-	-	-	-
TTZNFS6.0X80	40	2.73	2.44	2.59	2.44	-	-	-	-	2.44	2.59	2.44	-	-	-	-
TTZNFS6.0X90	45	2.73	2.44	2.6	2.62	-	-	-	-	2.44	2.6	2.62	-	-	-	-
TTZNFS6.0X100	40	2.73	2.44	2.6	2.62	-	-	-	-	2.44	2.6	2.62	-	-	-	-
TTZNFS6.0X120	50	2.73	2.44	2.6	2.62	-	-	-	-	2.44	2.6	2.62	-	-	-	-
TTZNFS6.0X140	70	2.73	2.44	2.6	2.62	2.62	2.62	-	-	2.44	2.6	2.62	2.62	2.62	-	-
TTZNFS6.0X160	90	2.73	2.44	2.6	2.62	2.62	2.62	2.62	-	2.44	2.6	2.62	2.62	2.62	2.62	-
TTZNFS6.0X180	110	2.73	2.44	2.6	2.62	2.62	2.62	2.62	2.62	2.44	2.6	2.62	2.62	2.62	2.62	2.62

These capacities are valid for:

Timber element under the head with thickness ≤ t1 disclosed in adjacent column
Screw axis between 45° and 90° from timber grain for ESCR(XXX), and 90° from timber grain for all other screws.

For tightening screws (partially threaded), t1 dimension is the maximum thickness of the under-head timber member for which the thread is fully in the pointside timber member, for an optimum installation and tightening.

The shear capacities are given for several timber thicknesses t1 of the under-head member under the following configurations:

Load axis at 0° from both timber grains Rv.0°.k
Load axis at 90° from both timber grains Rv.90°.k

These capacities are valid for C24 timber grades or higher
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.
For partial threaded screws, capacities are only given for configurations where the thread is less than 5mm in under-head timber member, in order to achieve optimum installation and tightening.
Clause (2) in 8.3.1.2 from EN1995-1-1:2004+A2:2014 about embedment length is ignored in these calculations.

Steel to Timber characteristic capacities

Art. nr.	Product characteristic capacities - Steel to Timber C24
	Axial resistance [Rax.st.k] [kN]	Shear resistance - Thin plate		Shear Resistance - Thick steel
	Axial resistance [Rax.st.k] [kN]	R_v.0.st.k [kN]	R_v.90.st.k [kN]	R_v.0.st.k [kN]	R_v.90.st.k [kN]
TTZNFS4.5X25	1.73	0.8	0.8	1.54	1.54
TTZNFS4.5X30	2.16	0.98	0.98	1.77	1.77
TTZNFS4.5X35	-	-	-	-	-
TTZNFS4.5X40	3.02	1.32	1.32	2.27	2.27
TTZNFS4.5X45	-	-	-	-	-
TTZNFS4.5X50	2.59	1.66	1.66	2.22	2.22
TTZNFS4.5X60	3.02	1.87	1.87	2.33	2.33
TTZNFS4.5X70	3.46	1.98	1.98	2.44	2.44
TTZNFS4.5X80	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-
TTZNFS5.0X50	1.98	1.88	1.88	2.47	2.47
TTZNFS5.0X50-T20	1.98	1.88	1.88	2.47	2.47
TTZNFS5.0X60	2.31	1.98	1.98	2.56	2.56
TTZNFS5.0X60-T20	2.31	1.98	1.98	2.56	2.56
TTZNFS5.0X70	2.64	2.06	2.06	2.64	2.64
TTZNFS5.0X70-T20	2.64	2.06	2.06	2.64	2.64
TTZNFS5.0X80	2.64	2.06	2.06	2.64	2.64
TTZNFS5.0X80-T20	2.64	2.06	2.06	2.64	2.64
TTZNFS5.0X90	2.97	2.14	2.14	2.72	2.72
TTZNFS5.0X90-T20	2.97	2.14	2.14	2.72	2.72
TTZNFS5.0X100	3.96	2.39	2.39	2.97	2.97
TTZNFS5.0X100-450	3.96	2.39	2.39	2.97	2.97
TTZNFS5.0X100-T20	3.96	2.39	2.39	2.97	2.97
TTZNFS5.0X120	3.96	2.39	2.39	2.97	2.97
TTZNFS5.0X120-T20	3.96	2.39	2.39	2.97	2.97
TTZNFS6.0X40	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-
TTZNFS6.0X60	3.61	2.66	2.66	3.64	3.64
TTZNFS6.0X70	4.13	2.96	2.96	3.76	3.76
TTZNFS6.0X80	4.13	2.96	2.96	3.76	3.76
TTZNFS6.0X90	4.64	3.09	3.09	3.89	3.89
TTZNFS6.0X100	6.19	3.48	3.48	4.28	4.28
TTZNFS6.0X120	6.19	3.48	3.48	4.28	4.28
TTZNFS6.0X140	7.22	3.74	3.74	4.54	4.54
TTZNFS6.0X160	7.22	3.74	3.74	4.54	4.54
TTZNFS6.0X180	7.22	3.74	3.74	4.54	4.54

Shear capacities are given for thick (tst = d) and thin (tst = 0,5xd) steel plates under the following configurations:

Load axis at 0° from timber grain Rv.0°.k
Load axis at 90° from timber grain Rv.90°.k

These capacities are valid for C24 timber grades or higher.
For intermediate steel thicknesses, capacities shall be calculated by linear interpolation between the limiting thin and thick plate values.
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.

Ledger on stud characteristic capacities

Art. nr.	Product characteristic capacities - Ledger on stud C24
	Minimum width of the stud [mm]	Minimum distance to the bottom side of the ledger a_4,c [mm]	Shear capacity depending of thickness of ledger t₁ [Rv.90-0.k] [kN]
	Minimum width of the stud [mm]		35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	90 [mm]	≥100 [mm]
TTZNFS4.5X25	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X30	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X35	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X40	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X45	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X50	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X60	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X70	27	13.5	1.41	-	-	-	-	-	-	-
TTZNFS4.5X80	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50	30	15	-	-	-	-	-	-	-	-
TTZNFS5.0X50-T20	30	15	-	-	-	-	-	-	-	-
TTZNFS5.0X60	30	15	-	-	-	-	-	-	-	-
TTZNFS5.0X60-T20	30	15	-	-	-	-	-	-	-	-
TTZNFS5.0X70	30	15	1.81	-	-	-	-	-	-	-
TTZNFS5.0X70-T20	30	15	1.81	-	-	-	-	-	-	-
TTZNFS5.0X80	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X80-T20	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X90	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X90-T20	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X100	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100-450	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X100-T20	30	15	1.81	1.81	1.81	-	-	-	-	-
TTZNFS5.0X120	30	15	1.81	1.81	1.81	1.81	-	-	-	-
TTZNFS5.0X120-T20	30	15	1.81	1.81	1.81	1.81	-	-	-	-
TTZNFS6.0X40	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X60	36	18	-	-	-	-	-	-	-	-
TTZNFS6.0X70	36	18	2.44	-	-	-	-	-	-	-
TTZNFS6.0X80	36	18	2.62	2.6	2.44	-	-	-	-	-
TTZNFS6.0X90	36	18	2.62	2.62	2.62	-	-	-	-	-
TTZNFS6.0X100	36	18	2.62	2.62	2.62	-	-	-	-	-
TTZNFS6.0X120	36	18	2.62	2.62	2.62	-	-	-	-	-
TTZNFS6.0X140	36	18	2.62	2.62	2.62	2.62	2.62	-	-	-
TTZNFS6.0X160	36	18	2.62	2.62	2.62	2.62	2.62	2.62	2.62	-
TTZNFS6.0X180	36	18	2.62	2.62	2.62	2.62	2.62	2.62	2.62	2.62

The pre-drilled hypothesis for capacity and distances calculation is fulfilled.

Panel to Timber characteristic capacities

Art. nr.	Panel (OSB, Fibreboard ρ_k≥380 kg/m³) on Timber C24 depending on panel thickness t_p
	13 [mm]			15 [mm]			18 [mm]			22 [mm]			25 [mm]
	R_ax.k.13 [kN]	R_v.0.k.13 [kN]	R_v.90.k.13 [kN]	R_ax.k.15 [kN]	R_v.0.k.15 [kN]	R_v.90.k.15 [kN]	R_ax.k.18 [kN]	R_v.0.k.18 [kN]	R_v.90.k.18 [kN]	R_ax.k.22 [kN]	R_v.0.k.22 [kN]	R_v.90.k.22 [kN]	R_ax.k.25 [kN]	R_v.0.k.25 [kN]	R_v.90.k.25 [kN]
TTZNFS4.5X25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X35	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X40	-	0.85	0.85	-	0.83	0.83	-	0.84	0.84	-	0.88	0.88	-	-	-
TTZNFS4.5X45	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X50	1.27	1.16	1.16	1.27	1.21	1.21	1.27	1.3	1.3	-	1.05	1.05	-	1.03	1.03
TTZNFS4.5X60	1.27	1.16	1.16	1.27	1.21	1.21	1.27	1.3	1.3	1.27	1.43	1.43	1.27	1.53	1.53
TTZNFS4.5X70	1.27	1.16	1.16	1.27	1.21	1.21	1.27	1.3	1.3	1.27	1.43	1.43	1.27	1.53	1.53
TTZNFS4.5X80	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	-	1.15	1.15	-	1.18	1.18
TTZNFS5.0X50-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	-	1.15	1.15	-	1.18	1.18
TTZNFS5.0X60	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X60-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X70	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X70-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X80	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X80-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X90	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X90-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100-450	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X100-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X120	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS5.0X120-T20	1.75	1.44	1.44	1.75	1.49	1.49	1.75	1.57	1.57	1.75	1.69	1.69	1.75	1.8	1.8
TTZNFS6.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X60	2.92	1.68	1.68	2.92	1.96	1.96	2.92	2.13	2.13	2.92	2.24	2.24	-	1.57	1.57
TTZNFS6.0X70	2.92	1.68	1.68	2.92	1.96	1.96	2.92	2.13	2.13	2.92	2.24	2.24	2.92	2.34	2.34
TTZNFS6.0X80	2.92	1.68	1.68	2.92	1.96	1.96	2.92	2.13	2.13	2.92	2.24	2.24	2.92	2.34	2.34
TTZNFS6.0X90	2.92	1.68	1.68	2.92	1.96	1.96	2.92	2.13	2.13	2.92	2.24	2.24	2.92	2.34	2.34
TTZNFS6.0X180	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Plywood to Timber Characteristic Capacities

Art. nr.	Plywood (ρ_k≥490 kg/m³) on Timber C24 depending on panel thickness t_p
	10 [mm]			15 [mm]			18 [mm]			22 [mm]			25 [mm]			30 [mm]
	R_ax.k.10 [kN]	R_v.0.k.10 [kN]	R_v.90.k.10 [kN]	R_ax.k.15 [kN]	R_v.0.k.15 [kN]	R_v.90.k.15 [kN]	R_ax.k.18 [kN]	R_v.0.k.18 [kN]	R_v.90.k.18 [kN]	R_ax.k.22 [kN]	R_v.0.k.22 [kN]	R_v.90.k.22 [kN]	R_ax.k.25 [kN]	R_v.0.k.25 [kN]	R_v.90.k.25 [kN]	R_ax.k.30 [kN]	R_v.0.k.30 [kN]	R_v.90.k.30 [kN]
TTZNFS4.5X25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X35	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X40	-	0.8	0.8	-	0.83	0.83	-	0.83	0.83	-	0.87	0.87	-	-	-	-	-	-
TTZNFS4.5X45	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS4.5X50	1.55	1.18	1.18	1.55	1.28	1.28	-	0.97	0.97	-	1.03	1.03	-	1.02	1.02	-	0.91	0.91
TTZNFS4.5X60	1.55	1.18	1.18	1.55	1.28	1.28	1.55	1.36	1.36	1.55	1.47	1.47	-	1.18	1.18	-	1.14	1.14
TTZNFS4.5X70	1.55	1.18	1.18	1.55	1.28	1.28	1.55	1.36	1.36	1.55	1.47	1.47	1.55	1.56	1.56	1.55	1.59	1.59
TTZNFS4.5X80	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X30-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X40-T20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X50	1.98	1.3	1.3	-	1.07	1.07	-	1.14	1.14	-	1.15	1.15	-	1.17	1.17	-	1.09	1.09
TTZNFS5.0X50-T20	1.98	1.3	1.3	-	1.07	1.07	-	1.14	1.14	-	1.15	1.15	-	1.17	1.17	-	1.09	1.09
TTZNFS5.0X60	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	-	1.36	1.36	-	1.34	1.34
TTZNFS5.0X60-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	-	1.36	1.36	-	1.34	1.34
TTZNFS5.0X70	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	-	1.5	1.5
TTZNFS5.0X70-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	-	1.5	1.5
TTZNFS5.0X80	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X80-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X90	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X90-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS5.0X100-450	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X100-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X120	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS5.0X120-T20	2.15	1.3	1.3	2.15	1.61	1.61	2.15	1.68	1.68	2.15	1.8	1.8	2.15	1.89	1.89	2.15	2.03	2.03
TTZNFS6.0X40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X50	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TTZNFS6.0X60	3.58	1.47	1.47	3.58	2.2	2.2	3.58	2.35	2.35	-	1.57	1.57	-	1.6	1.6	-	1.62	1.62
TTZNFS6.0X70	3.58	1.47	1.47	3.58	2.2	2.2	3.58	2.35	2.35	3.58	2.47	2.47	3.58	2.56	2.56	-	1.85	1.85
TTZNFS6.0X80	3.58	1.47	1.47	3.58	2.2	2.2	3.58	2.35	2.35	3.58	2.47	2.47	3.58	2.56	2.56	3.58	2.75	2.75
TTZNFS6.0X90	3.58	1.47	1.47	3.58	2.2	2.2	3.58	2.35	2.35	3.58	2.47	2.47	3.58	2.56	2.56	3.58	2.75	2.75
TTZNFS6.0X180	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
