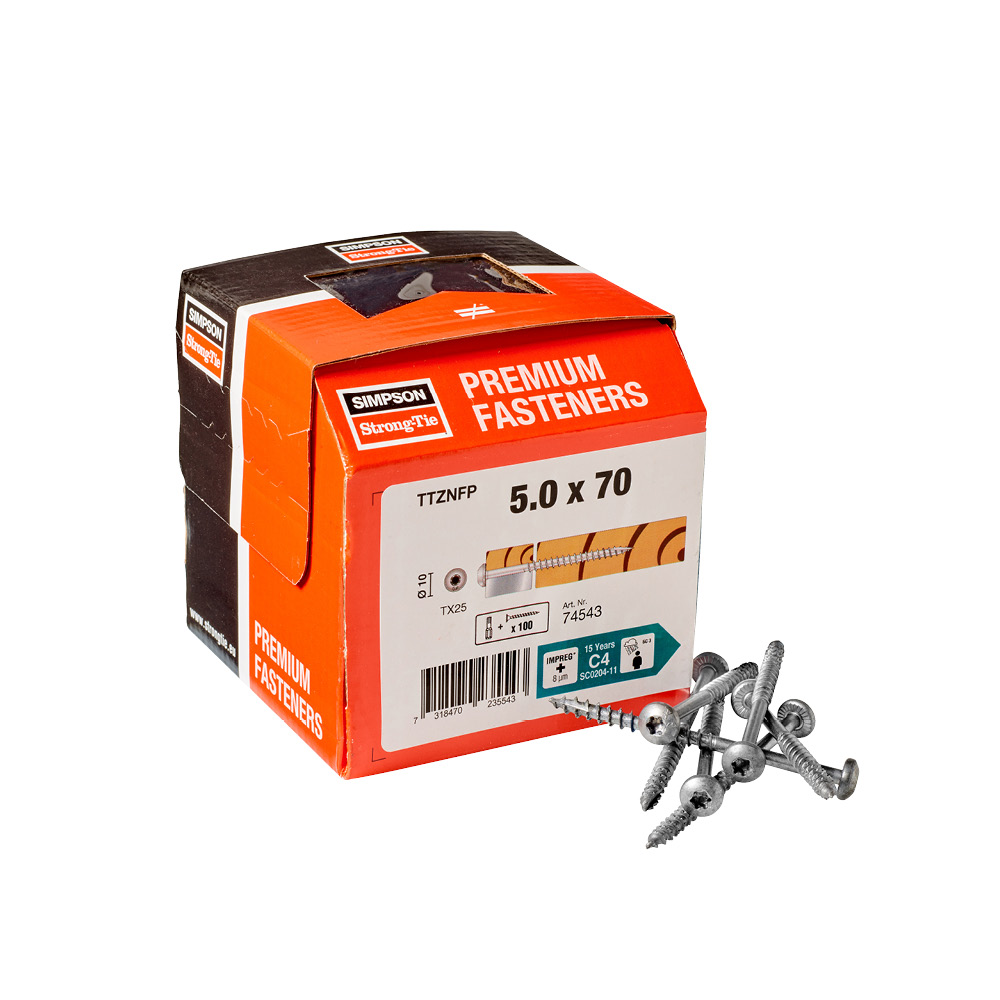

TTZNFP
Træskrue pan-hoved, Impreg®+

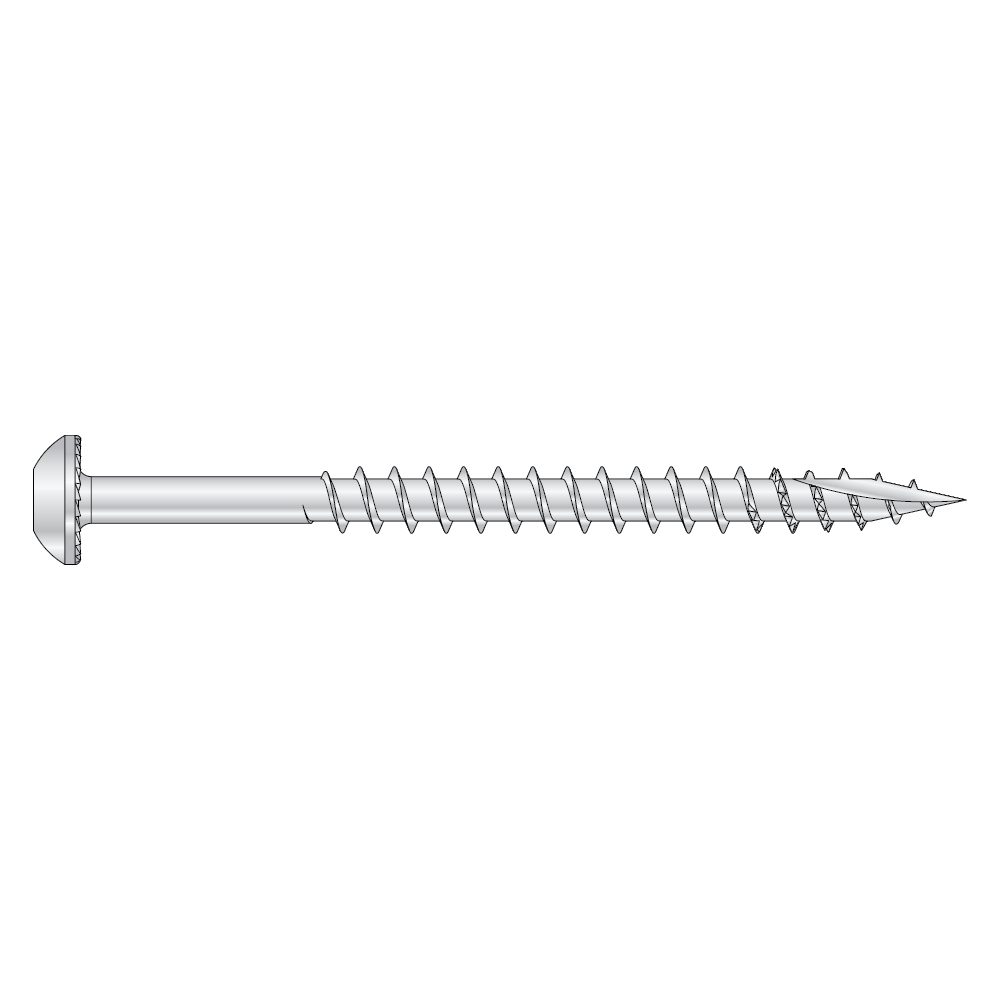

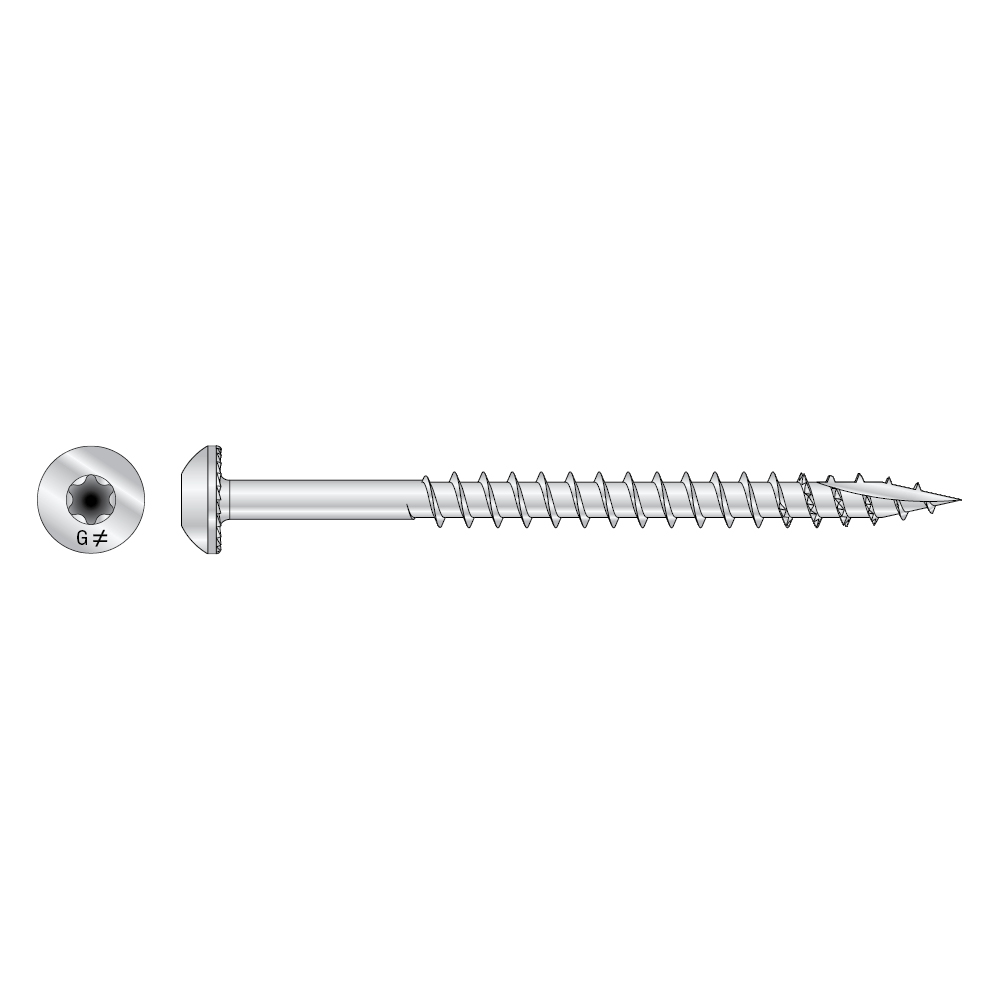

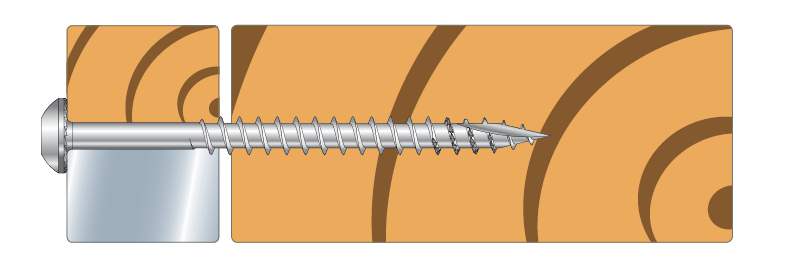

TTZNFP-skruen har TX recess og fibercut spids, som driver skruen jævnt ind i træet og mindsker risikoen for at træet flækker.
Skruer har savtakket gevind, der reducerer iskruningsmomentet. Prismeformede takker under hovedet hjælper skruen med at gribe fat i materialet og skabe en stærk fastgørelse.
CE mærket
Aftalegrundlag
Outdoor
EPD
Impreg® +
Fastener Designer
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner
Dimensioner
| Reference | Dimensioner[mm] | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Best. nr. | Andre | Dimensioner[mm] | |||||||||
| DB nr. | Antal pr. kasse | Vægt[kg] | d₁[mm] | L[mm] | dₕ[mm] | Head Diameter[mm] | lg[mm] | Bit[mm] | Gevind[mm] | ||
| TTZNFP4.0X30* | 74537 | 1950031 | 200.0 | 0.002 | 4 | 30 | 8 | 2.5 | 30 | T-20 | FT |
| TTZNFP4.0X40* | 74538 | 1950032 | 200.0 | 0.003 | 4 | 40 | 8 | 2.5 | 40 | T-20 | FT |
| TTZNFP4.0X50* | 74539 | 1950033 | 200.0 | 0.003 | 4 | 50 | 8 | 2.5 | 30 | T-20 | PT |
| TTZNFP5.0X40 | 74540 | 1950034 | 200.0 | 0.004 | 5 | 40 | 9.7 | 3.1 | 36 | T-25 | FT |
| TTZNFP5.0X50 | 74541 | 1950035 | 200.0 | 0.005 | 5 | 50 | 9.7 | 3.1 | 30 | T-25 | PT |
| TTZNFP5.0X60 | 74542 | 1950036 | 200.0 | 0.006 | 5 | 60 | 9.7 | 3.1 | 35 | T-25 | PT |
| TTZNFP5.0X70 | 74543 | 1950037 | 100.0 | 0.006 | 5 | 70 | 9.7 | 3.1 | 40 | T-25 | PT |
| TTZNFP5.0X80 | 74544 | 1950038 | 100.0 | 0.007 | 5 | 80 | 9.7 | 3.1 | 50 | T-25 | PT |
| TTZNFP6.0X60 | 74546 | 1950039 | 200.0 | 0.012 | 6 | 60 | 11.7 | 3.7 | 35 | T-30 | PT |
| TTZNFP6.0X80 | 74547 | 1950040 | 100.0 | 0.008 | 6 | 80 | 11.7 | 3.7 | 50 | T-30 | PT |
| TTZNFP6.0X100 | 74545 | 1950041 | 100.0 | 0.01 | 6 | 100 | 11.7 | 3.7 | 60 | T-30 | PT |
* ikke CE-mærket
FT = Full Thread (fuldgevind)
PT = Partial Thread (delgevind)
PTM = Partial Thread with Milling thread (delgevind med fræseribbe)
