VIMOP
Trykbeslag
Vimo brackets are used to secure windows to absorb wind loads. With Vimo brackets, you can postpone the installation of windows until late in the construction process, eliminating the need for covering, post-cleaning and, just as importantly, unbroken insulation around the windows.
Anvendelsesklasse 2
EPD
Produktinformationer

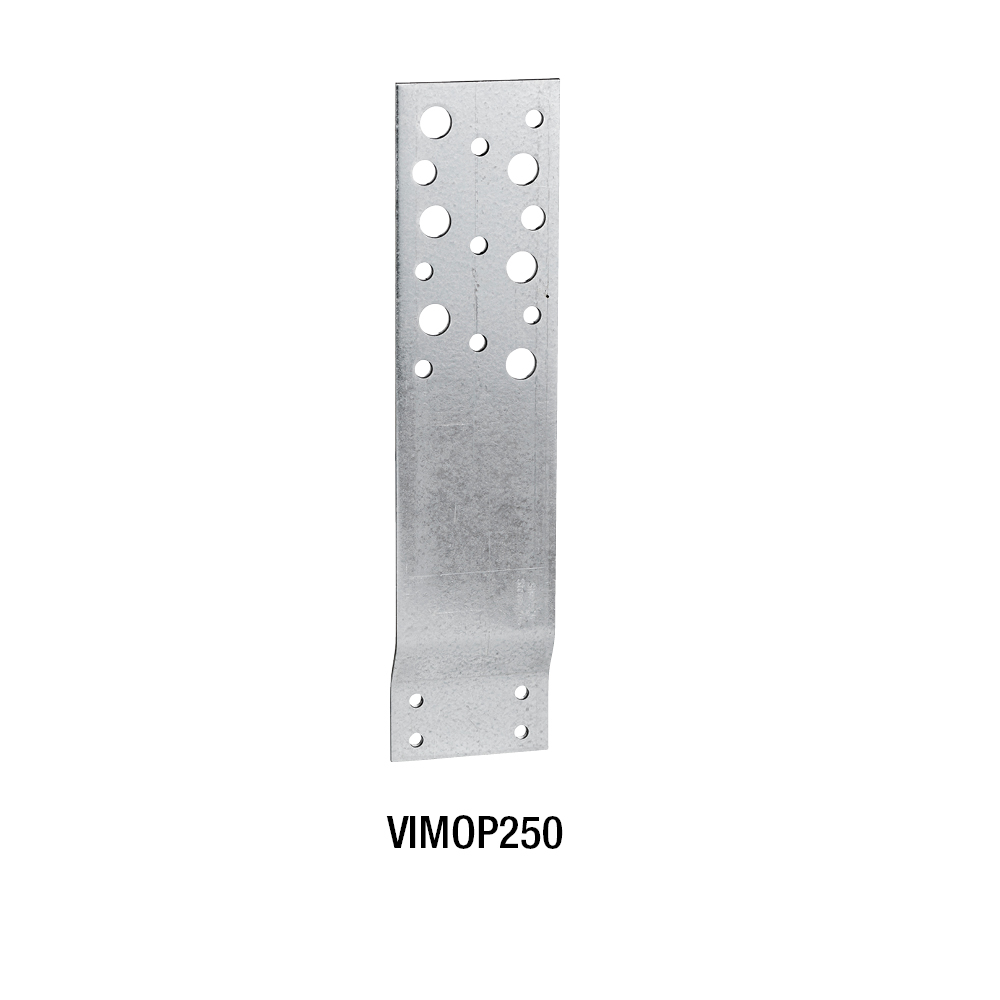

Billeder
Egenskaber
Applikationer
Teknisk data

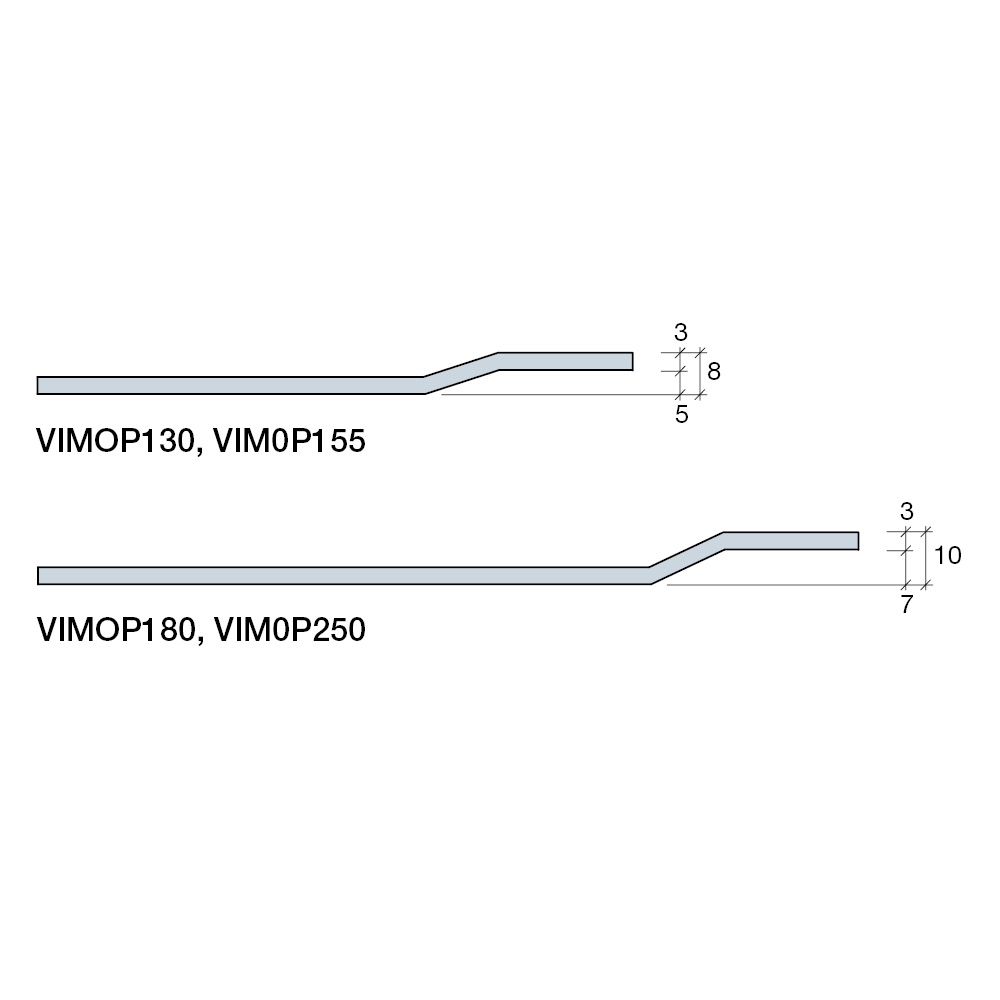

Dimensioner

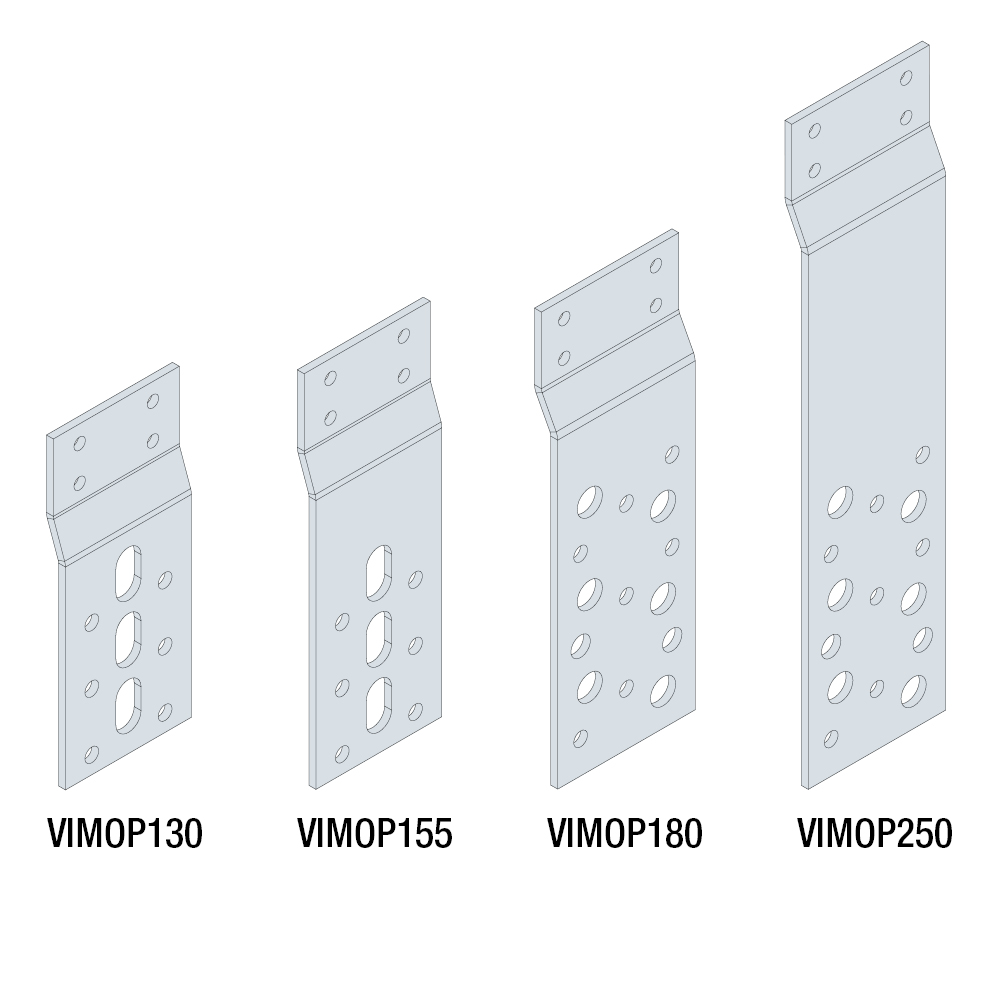

Dimension
| Art. nr. | DB nr. | Dimensions [mm] | Holes | Vægt [kg] | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | t | Ø | Qty | |||
| VIMOP130-B | 1603059 | 130 | 55 | 8 | 3 | 5 / 6 / 11x20 | 4 / 6 / 3 | 0.15 |
| VIMOP155-B | 2856946 | 155 | 55 | 8 | 3 | 5 / 6 / 11x20 | 4 / 6 / 3 | 0.18 |
| VIMOP180-B | 1603067 | 180 | 60 | 10 | 3 | 5 / 6 / 8,5 / 11 | 4 / 7 / 2 / 6 | 0.23 |
| VIMOP250-B | 2856953 | 250 | 60 | 10 | 3 | 5 / 6 / 8,5 / 11 | 4 / 7 / 2 / 6 | 0.33 |

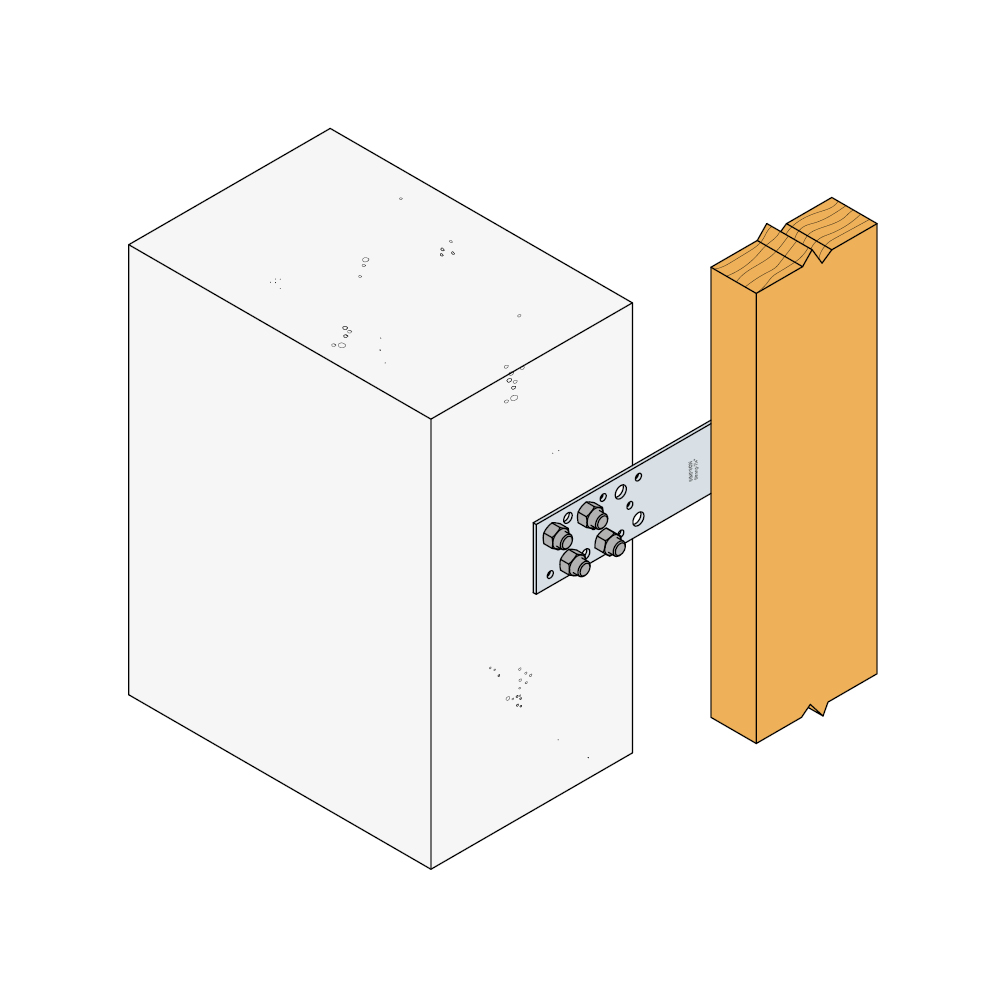

Installation
Installation
