KTF
Universelskrue rustfri hærdet

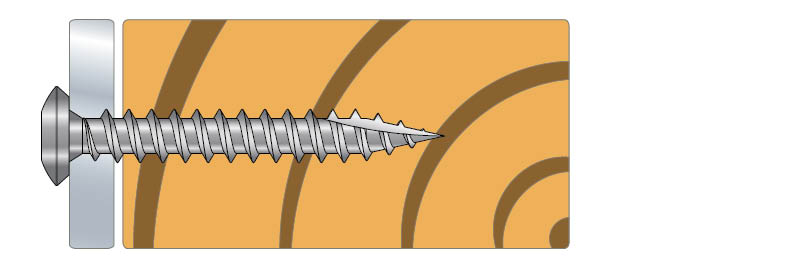

The universal screw stainless steel 410 hardened is ideally suited for fixing guttering, fittings, brackets and other outdoor items. The screw has a cutpoint which drives the screw effectively into the wood and prevents splitting.
Anvendelsesklasse 3
Outdoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Discontinued Products
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| KTF5.0x25 | 75506 | 2055861 | 55836563 | 5 | 25 | 9.3 | 3.4 | - | - | 22 | - | - | TX25 | 250 | 0.003 |
| KTF5.0x30 | 75507 | 2055862 | 55841732 | 30 | 9.3 | 3.4 | - | - | 27 | - | - | TX25 | 250 | 0.003 | |
| KTF5.0x35 | 75508 | 2055863 | 55836525 | 35 | 9.3 | 3.4 | - | - | 32 | - | - | TX25 | 250 | 0.004 | |
| KTF5.0x45 | 75509 | 2055864 | 55836544 | 45 | 9.3 | 3.4 | - | - | 42 | - | - | TX25 | 250 | 0.004 | |
| KTF5.0x60 | 75510 | 2055865 | 55836533 | 60 | 9.3 | 3.4 | - | - | 57 | - | - | TX25 | 250 | 0.004 | |
| KTF5.0x75 | 75511 | 2055866 | 55836552 | 75 | 9.3 | 3.4 | - | - | 72 | - | - | TX25 | 250 | 0.007 | |
