VBS

VindueskarmC1:C2102skrue rustfri A4

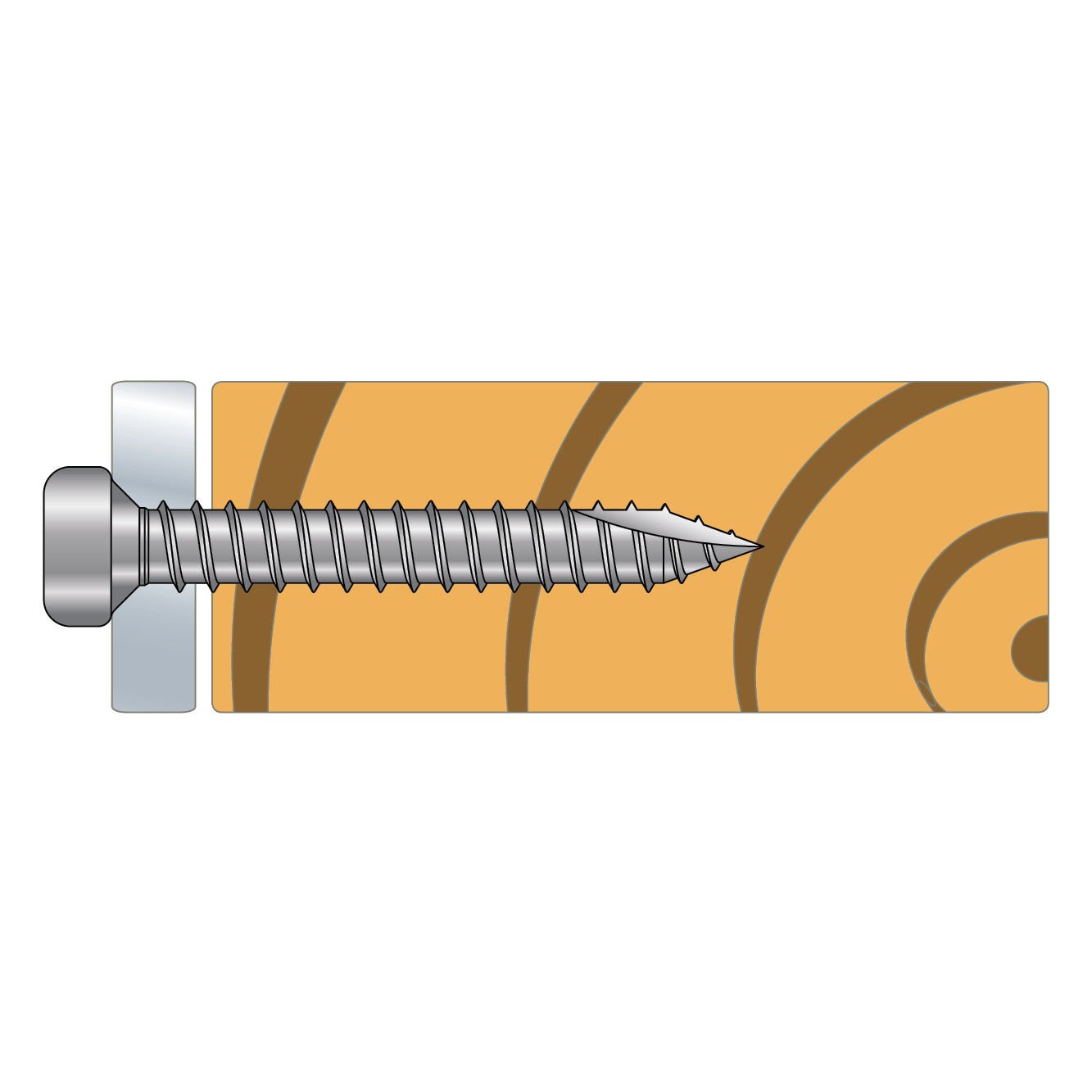

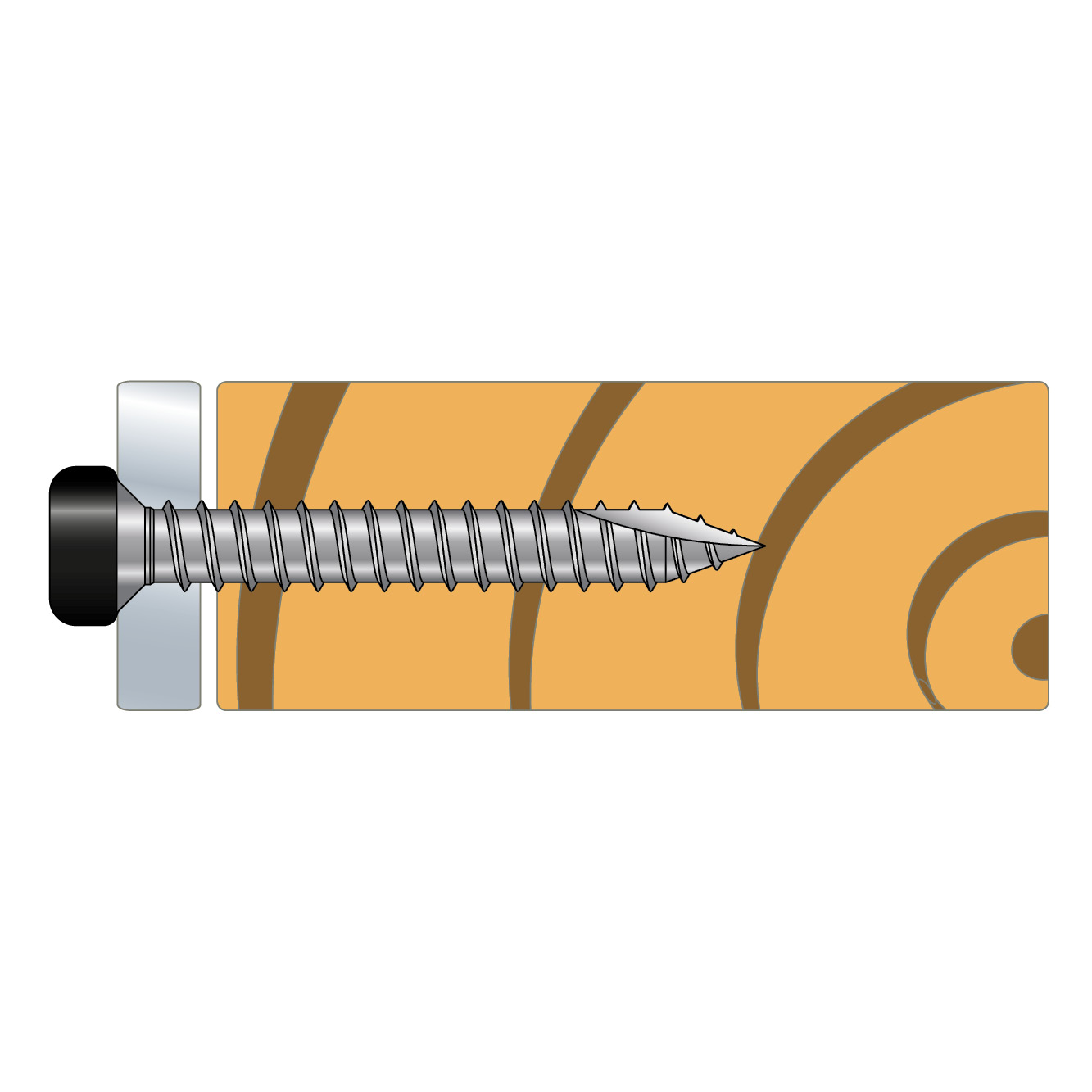

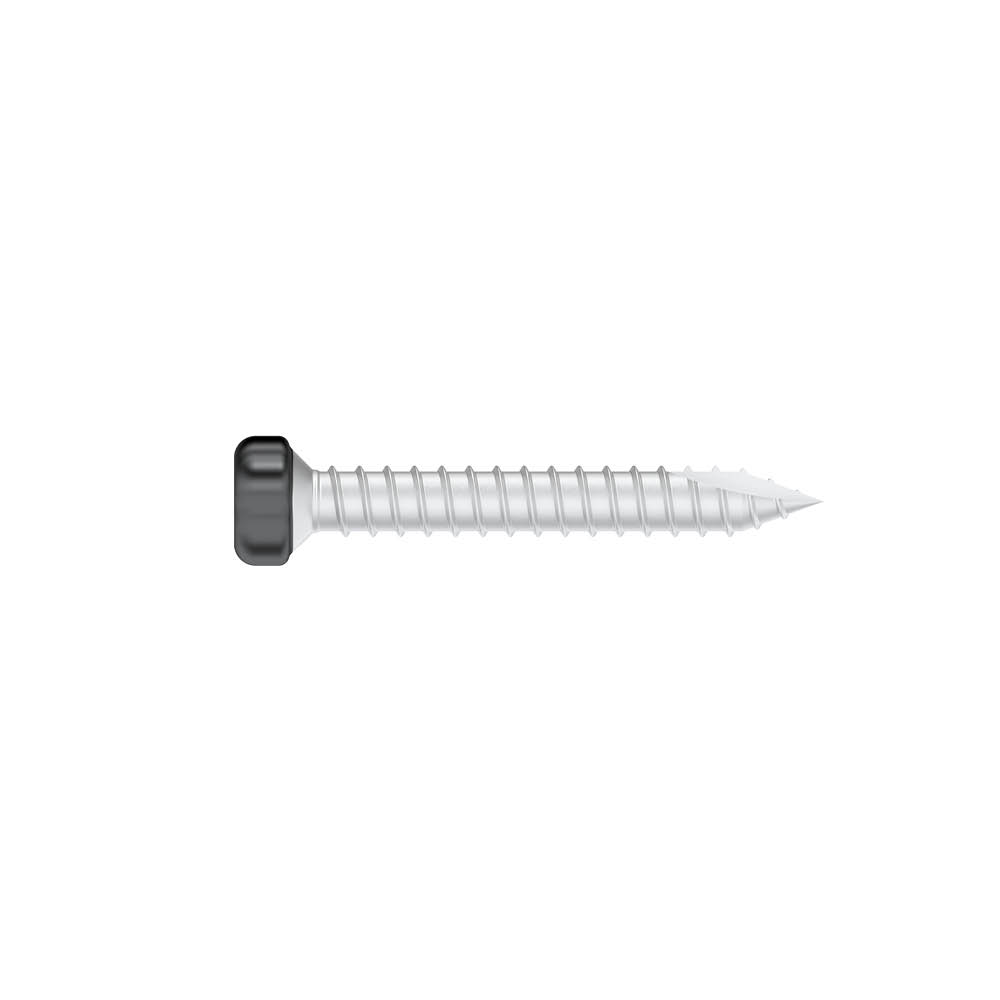

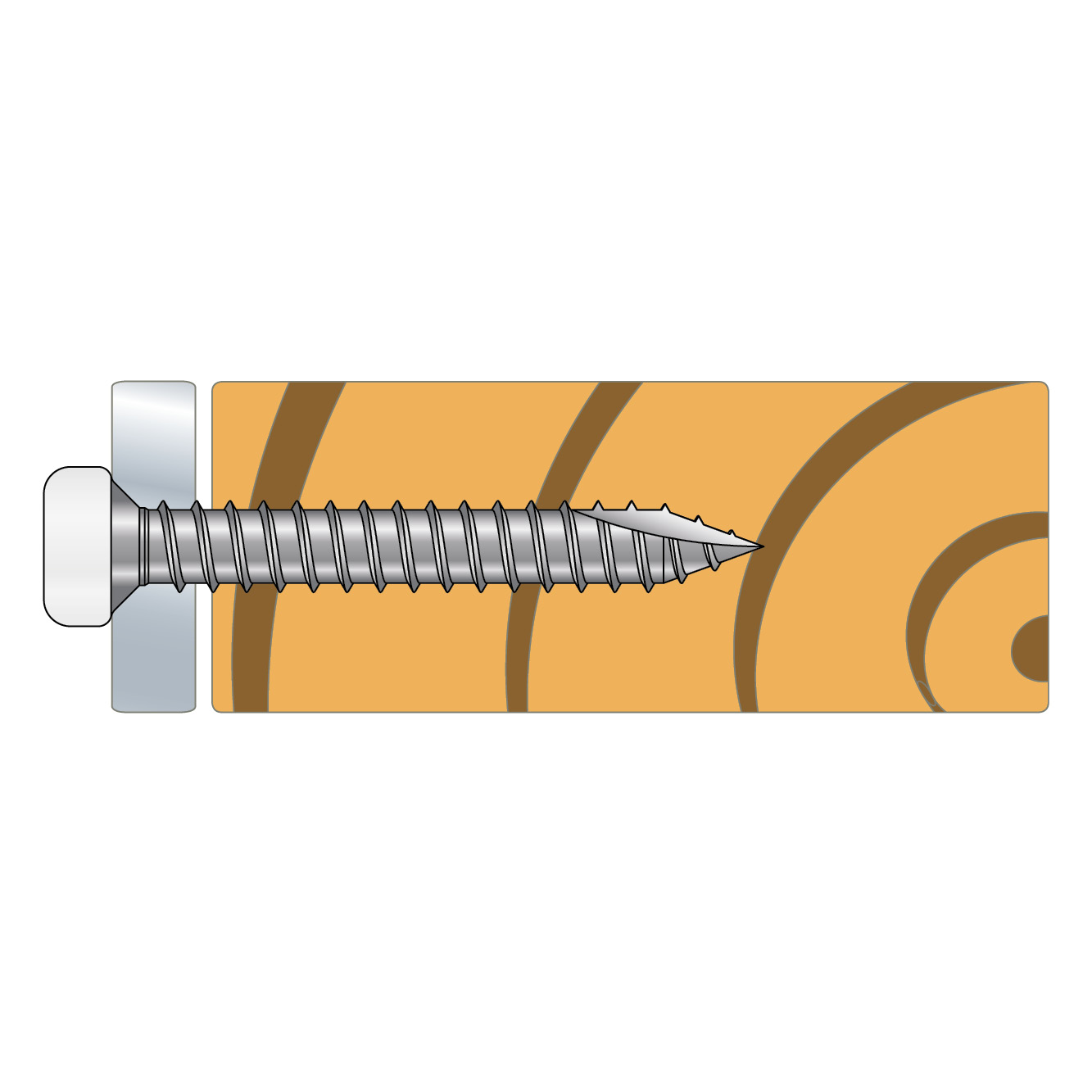

Painted head to match colored steel plate work for windows. Primarely used for installation of window sills. The window sill screw can deal with aggressive environments. The underside of the head is tapered to ensure a good seal with the sheet or plate. The cutpoint prevents splitting of the frame wood.

Anvendelsesklasse 3
Anvendelsesklasse 3
Severe
Severe
A4 (rustfri & syrefast)
A4 (rustfri & syrefast)

Produktinformationer

Billeder

Egenskaber

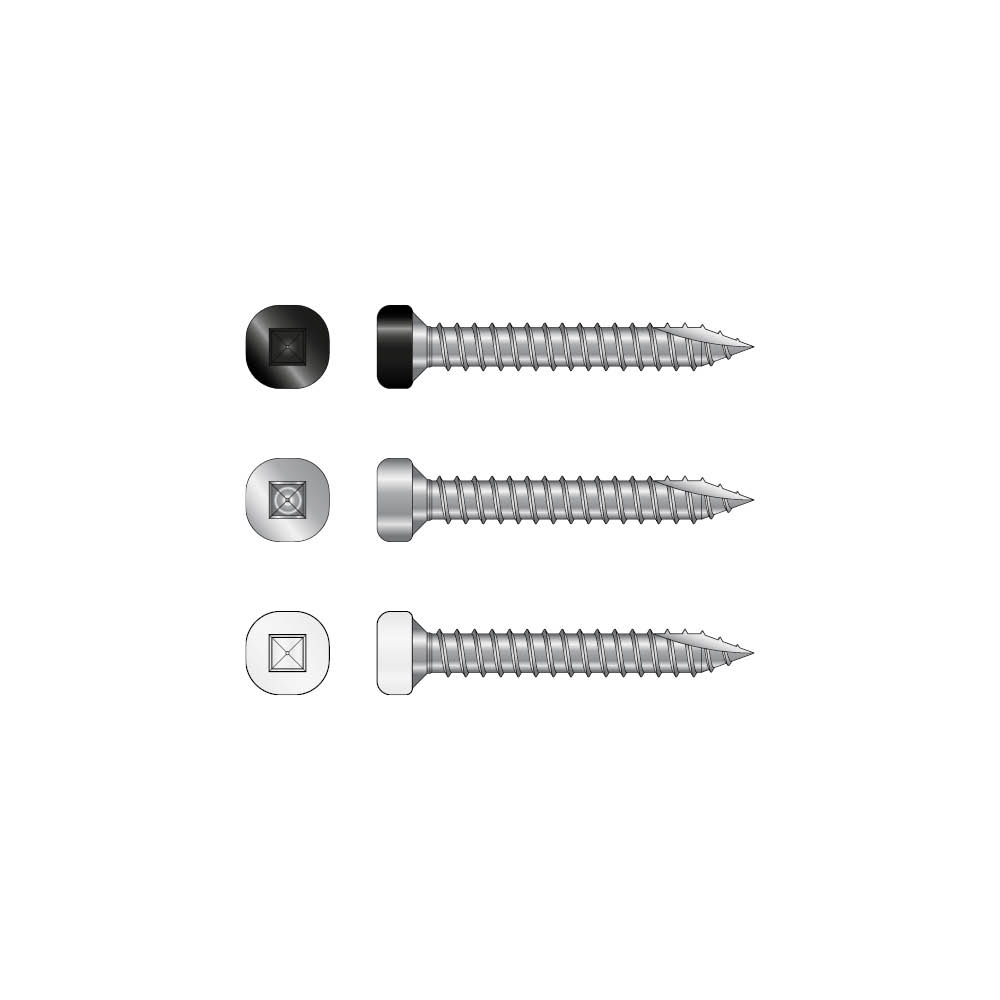

Colors:

  • 75520 = Umalet
  • 75521 = Hvidmalet hoved
  • 75522 = Sortmalet hoved

Features:

  • Firkantet drev
  • Lakeret panhead
  • Rustfrit A4

Applikationer

Application:

  • Vindueskarm til træ
  • Metalplade til træ

Teknisk data

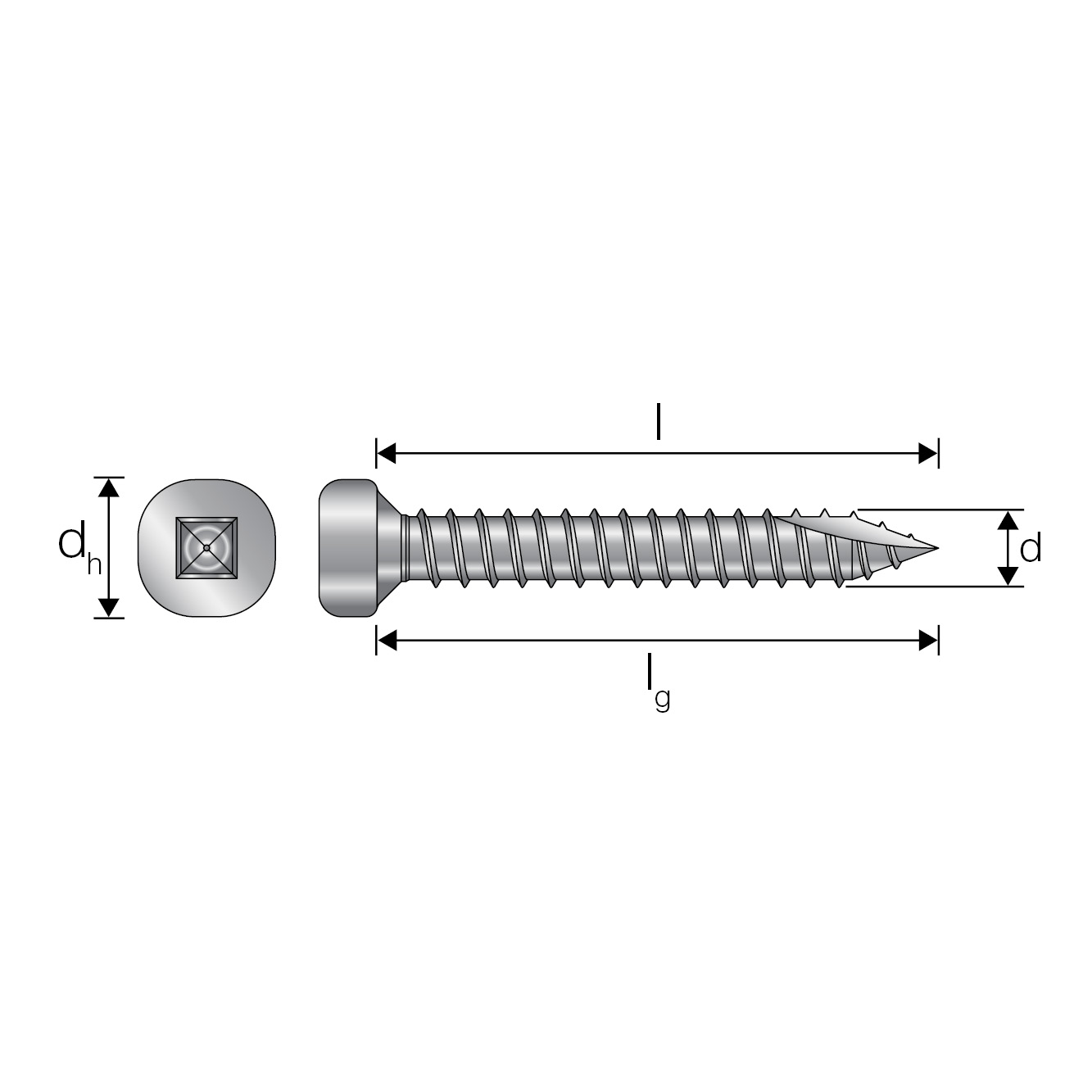

Product dimensions

ReferenceDimensioner
Best. nr.AndreDimensioner[mm]
DB nr.NOBB nr.Antal pr. kasseD[mm]L[mm]dh[mm]d1[mm]lg[mm]tfᵢₓ[mm]Bit[mm]
VBS3.5X1975520-55841796200.03.51962.7190.7Square

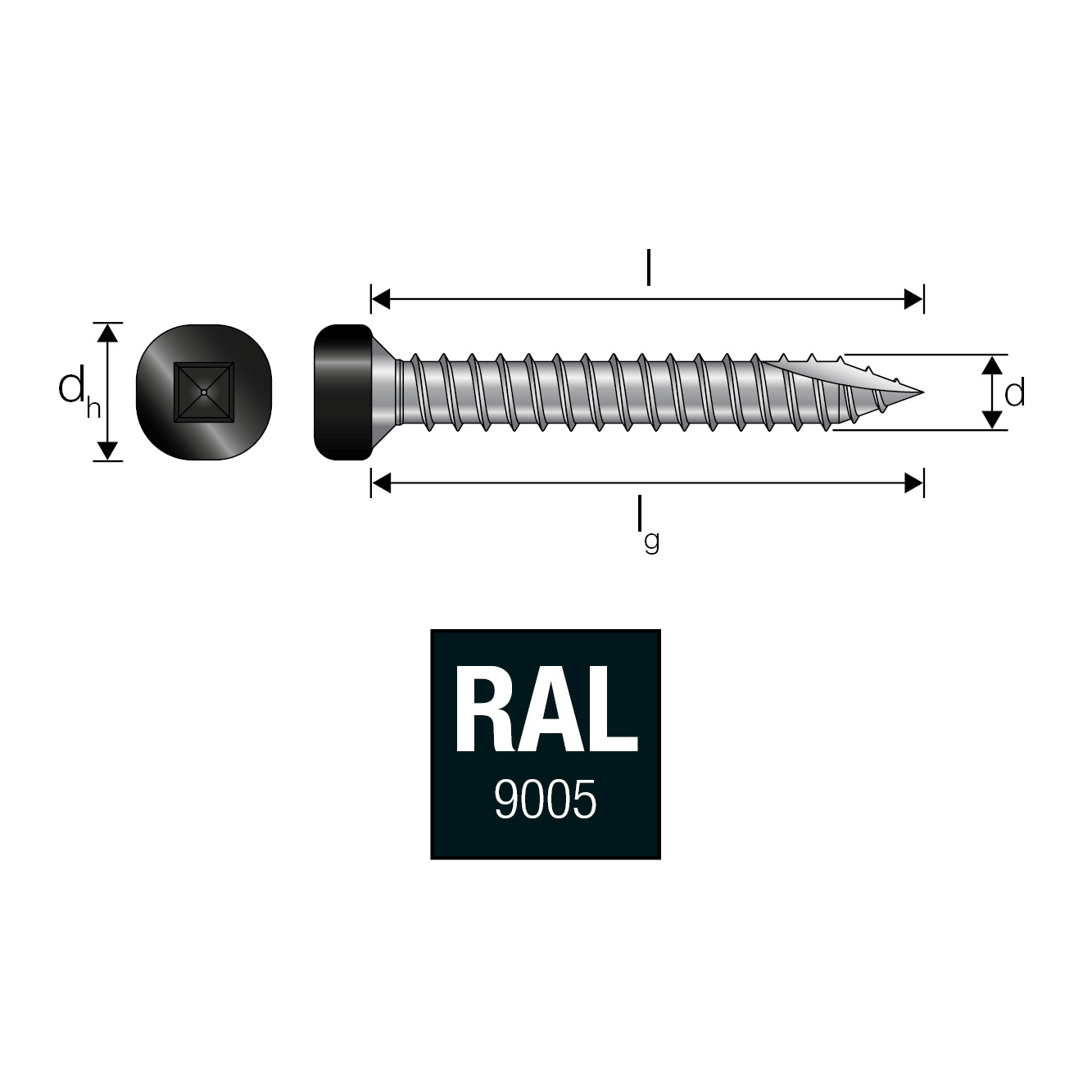

Product Dimensions Painted Head RAL 9005

ReferenceDimensioner
Best. nr.AndreDimensioner[mm]
NOBB nr.Antal pr. kasseD[mm]L[mm]dh[mm]d1[mm]lg[mm]tfᵢₓ[mm]Bit[mm]
VBS3.5X19 RAL90057552255841815200.03.51962.7190.7Square

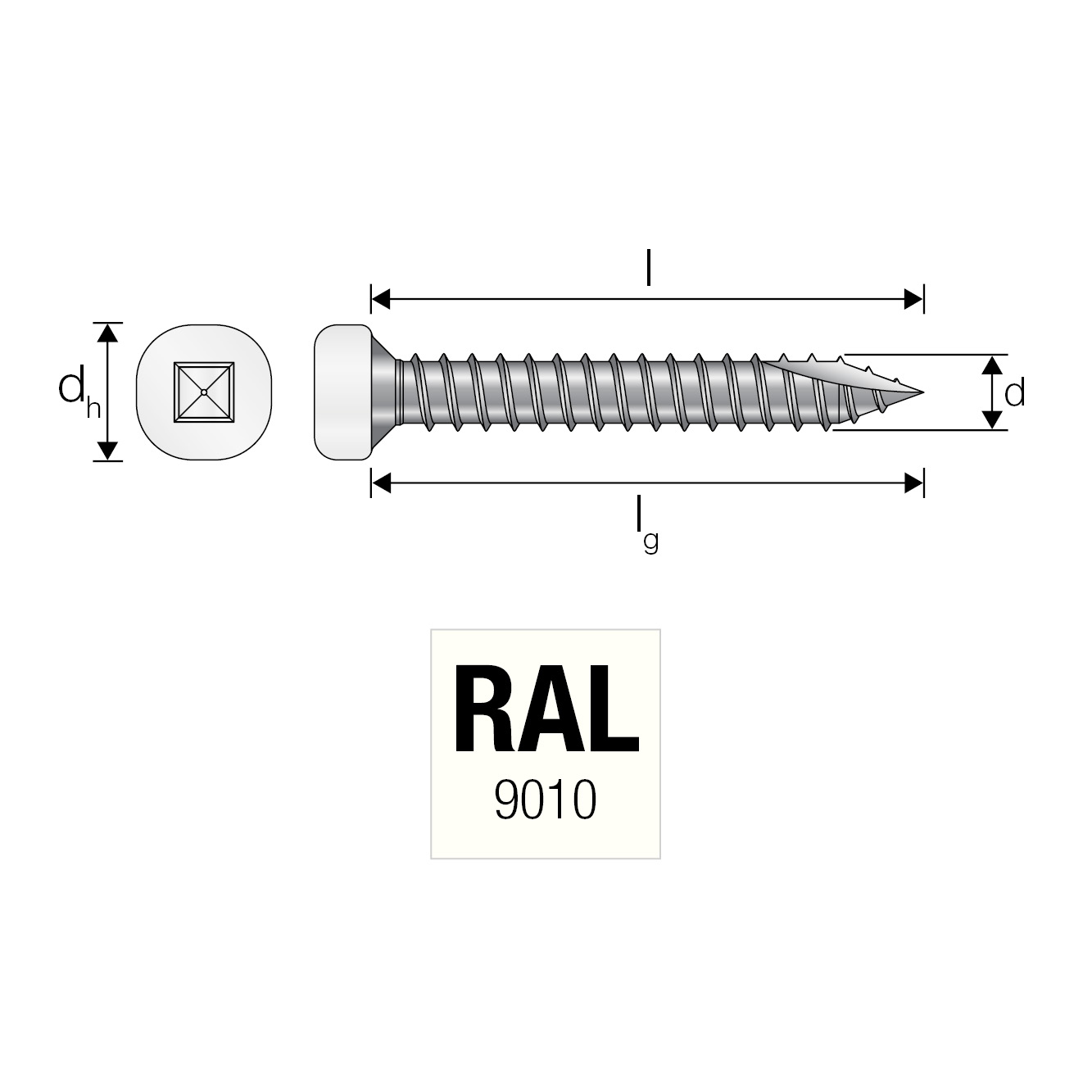

Product Dimensions Painted Head RAL 9010

ReferenceDimensioner
Best. nr.AndreDimensioner[mm]
NOBB nr.Antal pr. kasseD[mm]L[mm]dh[mm]d1[mm]lg[mm]tfᵢₓ[mm]Bit[mm]
VBS3.5X19 RAL90107552155841800200.03.51962.7190.7Square
