TS

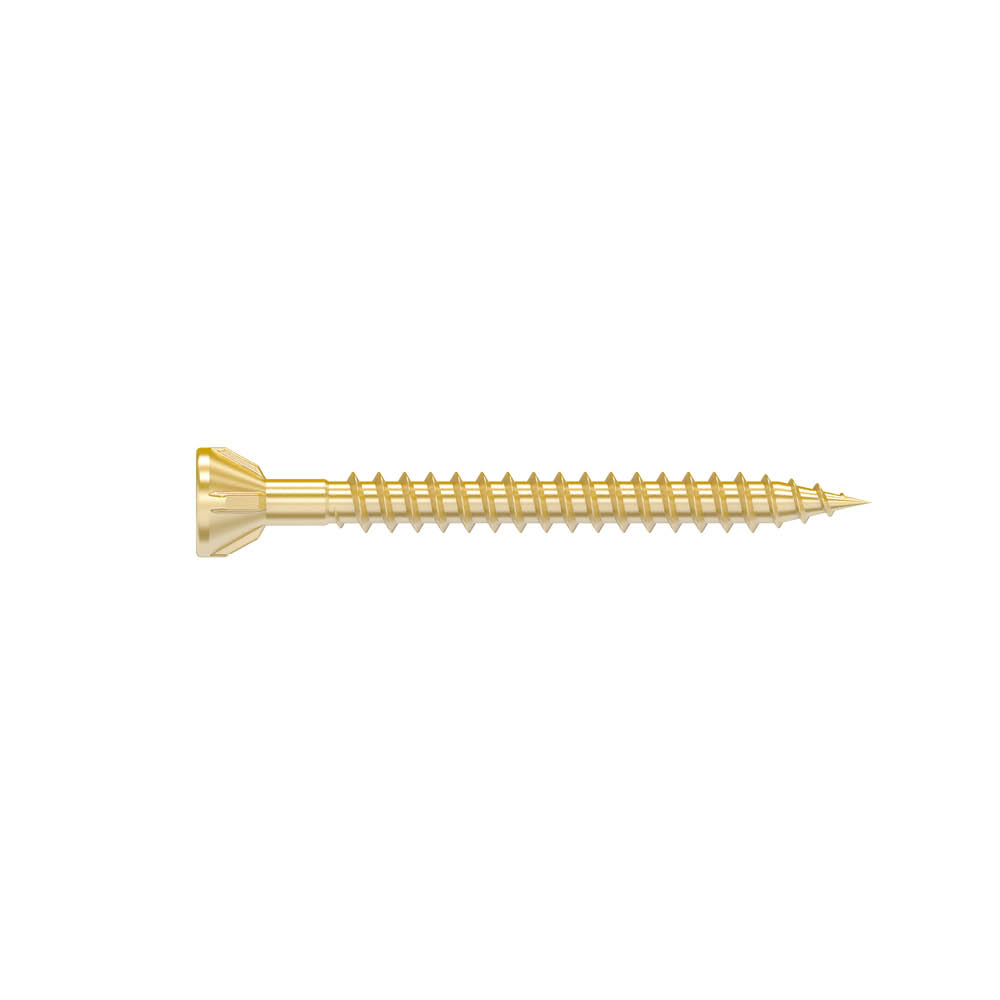

Wood Fibre to Steel Screw

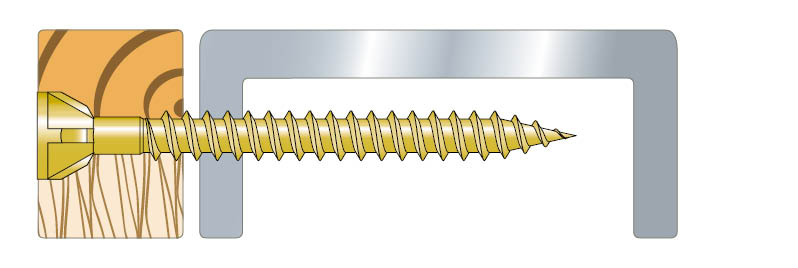

Used indoors for fixing mouldings, OSB, chipboard and plywood. The wood fiberboard screw has nibs under its head for effective anchoring in the base material, and twin thread for fast speed. Can be used for steel substrates up to 1.0 in thickness.
CE mærket
Anvendelsesklasse 1
Gulkromatiseret
Indoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| TS3.9X28 | 75495 | 2055850 | 55840574 | 3.9 | 28 | 6.8 | - | - | - | - | - | - | - | 500 | 0.002 |
| TS3.9X42 | 75496 | 2055851 | 55840585 | 42 | 6.8 | - | - | - | - | - | - | - | 500 | 0.003 | |
| TS3.9X57 | 75497 | 2055852 | 55840593 | 57 | 6.8 | - | - | - | - | - | - | - | 250 | 0.003 | |
