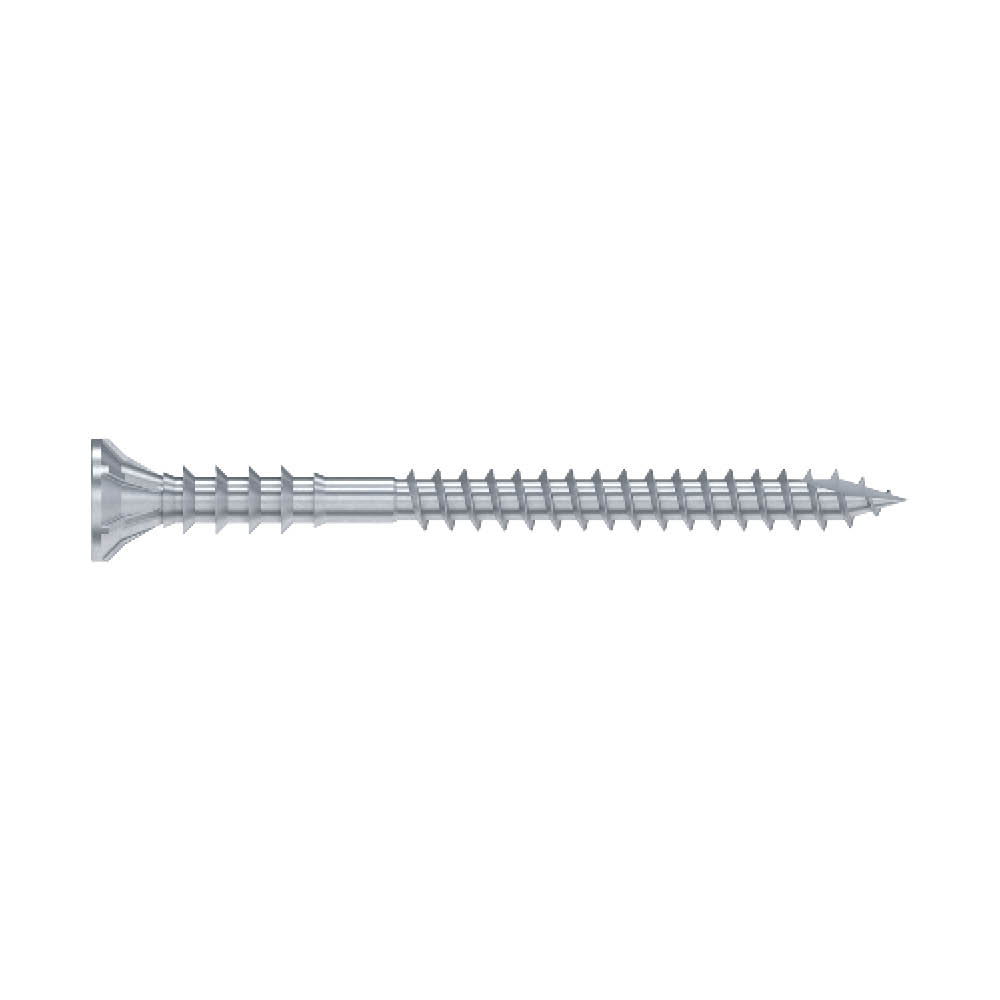

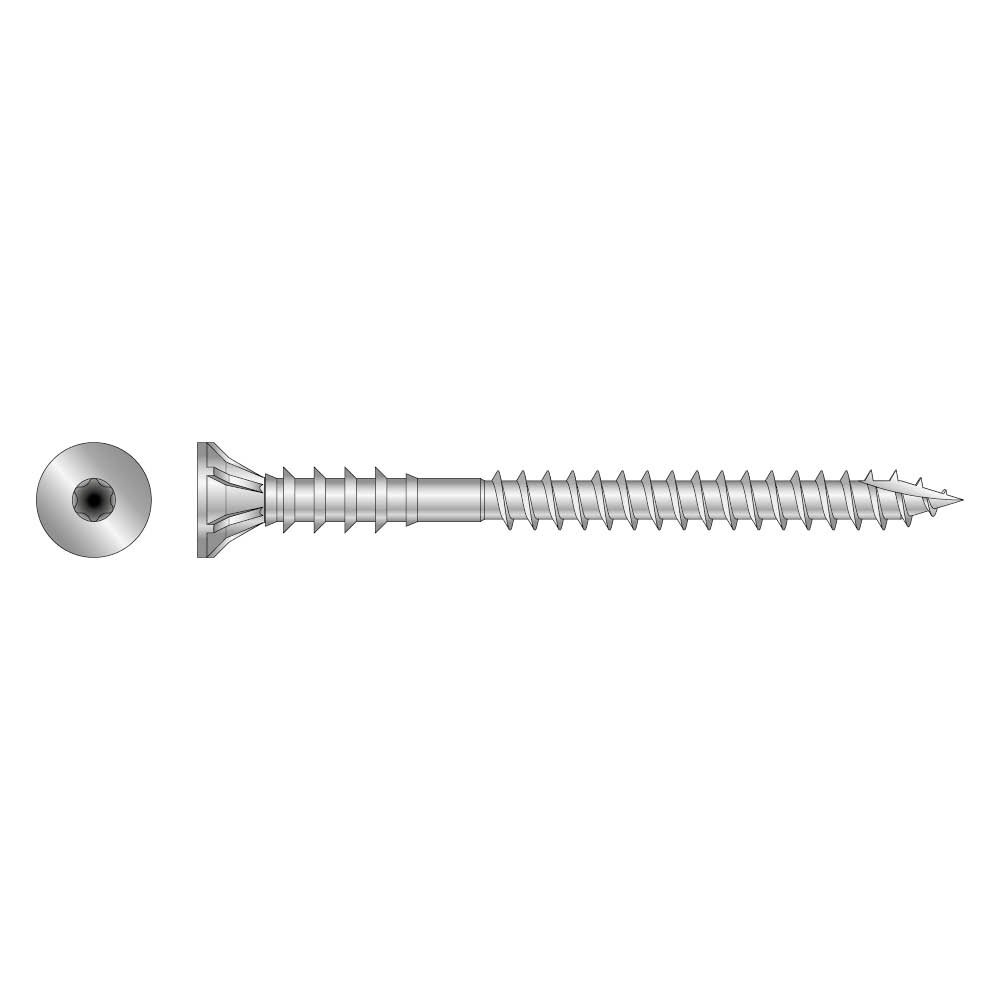

DSZ
Justerbar dørkarmskrue

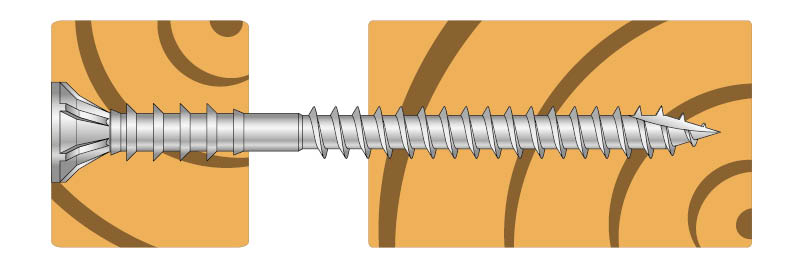

This special frame screw is used for indoor installation of interior door frames with pre-drilled holes - Ø14 mm from one side and Ø6 mm from the other. The anchor thread under the head grips the woodwork, allowing the frame to be adjusted both inwards and outwards.
CE mærket
Anvendelsesklasse 2
Elgalvaniseret stål
Indoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | lp | bit | ||||||
| DSZ6.0X60 | 75552 | 2055906 | 55841323 | 6 | 60 | 11.7 | 4 | 30 | 20 | T-25 | 100 | 0.011 |
| DSZ6.0X70 | 75553 | 2055907 | 55841338 | 70 | 11.7 | 4 | 40 | 20 | T-25 | 100 | 0.012 | |
| DSZ6.0X80 | 75554 - 75711 | 2055908 - 2056058 | 55841342 - 55842178 | 80 | 11.7 | 4 | 50 | 20 | T-25 | 100 / 8 | 0.012 | |
| DSZ6.0X90 | 75712 - 75555 | 2056059 - 2055909 | 55842182 - 55841357 | 90 | 11.7 | 4 | 60 | 20 | T-25 | 8 / 100 | 0.018 | |
| DSZ6.0X100 | 75556 | 2055910 | 55841361 | 100 | 11.7 | 4 | 60 | 20 | T-25 | 100 | 0.02 | |
| DSZ6.0X110 | 75557 | 2055911 | 55841376 | 110 | 11.7 | 4 | 60 | 20 | T-25 | 100 | 0.022 | |
| DSZ6.0X120 | 75558 | 2055912 | 55841380 | 120 | 11.7 | 4 | 60 | 20 | T-25 | 100 | 0.022 | |
| DSZ6.0X130 | 75559 | 2055913 | 55841395 | 130 | 11.7 | 4 | 60 | 20 | T-25 | 100 | 0.024 | |
