RSNCG

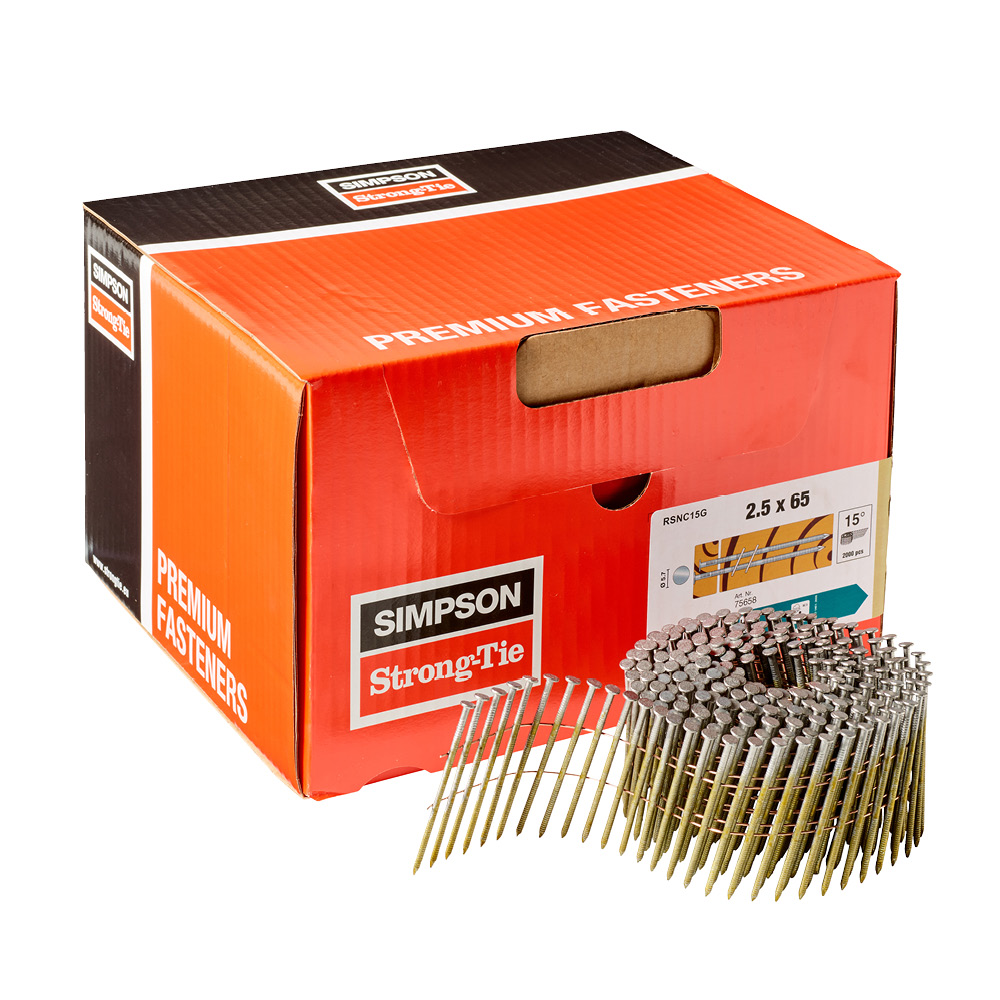

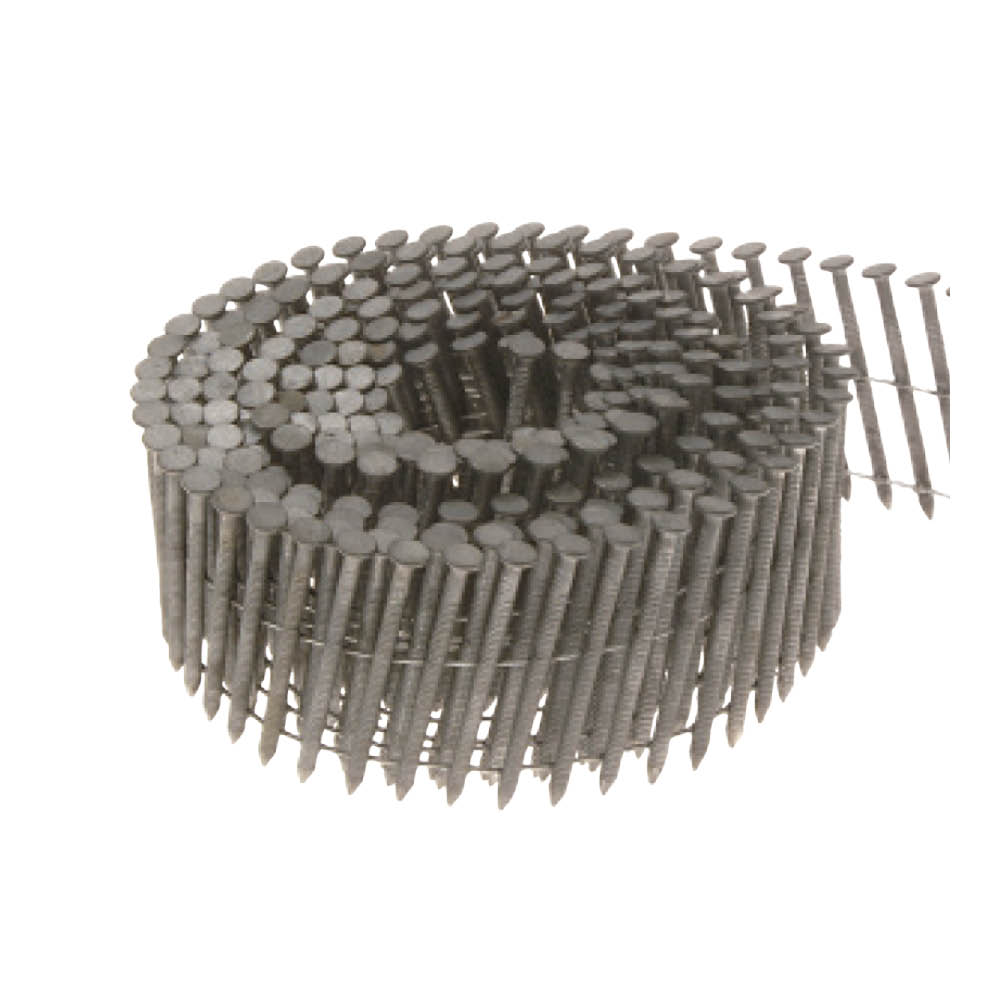

Ramme-søm 15° trådrulle - Rund hoved, ring skaft - HDG

The framing nail is designed for wood to wood constructions and can be used in outdoor environments. The coil collation gives more nails in the magazine and reduce the need of reloading. The ring shank increases the withdrawal capacity.

Teknisk datablad

CE mærket

Anvendelsesklasse 3

Varmgalvaniseret stål

Outdoor

EPD

Fastener Designer

Teknisk data

Dimensioner

Product dimensions

Art. nr.	Item code	DB nr.	NOBB nr.	Fastener dimensions [mm]								Qty/box	Vægt [kg]
Art. nr.	Item code	DB nr.	NOBB nr.	d	l	d_h	A_h	h_t	l_g	l_p	t_fix	Qty/box	Vægt [kg]
RSNC15G2.5X45	75661	2056015	55837532	2.5	43.5	5.7	25.5	0.5	32	3.5	25	2000	0.002
RSNC15G2.5X55	75662	2056016	55837513		53.5	5.7	25.5	0.5	45	3.5	35	2000	0.003
RSNC15G2.5X65	75658	2056012	55837505		63.5	5.7	25.5	0.5	50	3.5	45	2000	0.003
RSNC15G2.8X75	75659	2056013	55837524	2.8	73.5	6.9	37.4	0.6	53	2.5	52.6	1500	0.005
RSNC15G3.1X90	75660	2056014	55837494	3.1	88	6.9	37.4	0.8	70	4.3	65.2	1600	0.006

Product characteristic properties

Art. nr.	Product characteristic properties
Art. nr.	Characteristic Yield Moment – M_y,k [M_y.k] [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [f_ax.k.90°] [N/mm²]	Characteristic head pull-through parameter - f_head,k [f_head.k] [N/mm²]	Characteristic tensile capacity - f_tens,k [f_tens.k] [kN]
RSNC15G2.5X45	2	5.1	22	3
RSNC15G2.5X55	2	5.1	22	3
RSNC15G2.5X65	2	5.1	22	3
RSNC15G2.8X75	3.2	8.9	29.4	3.4
RSNC15G3.1X90	4.6	8.3	18.1	3.8
