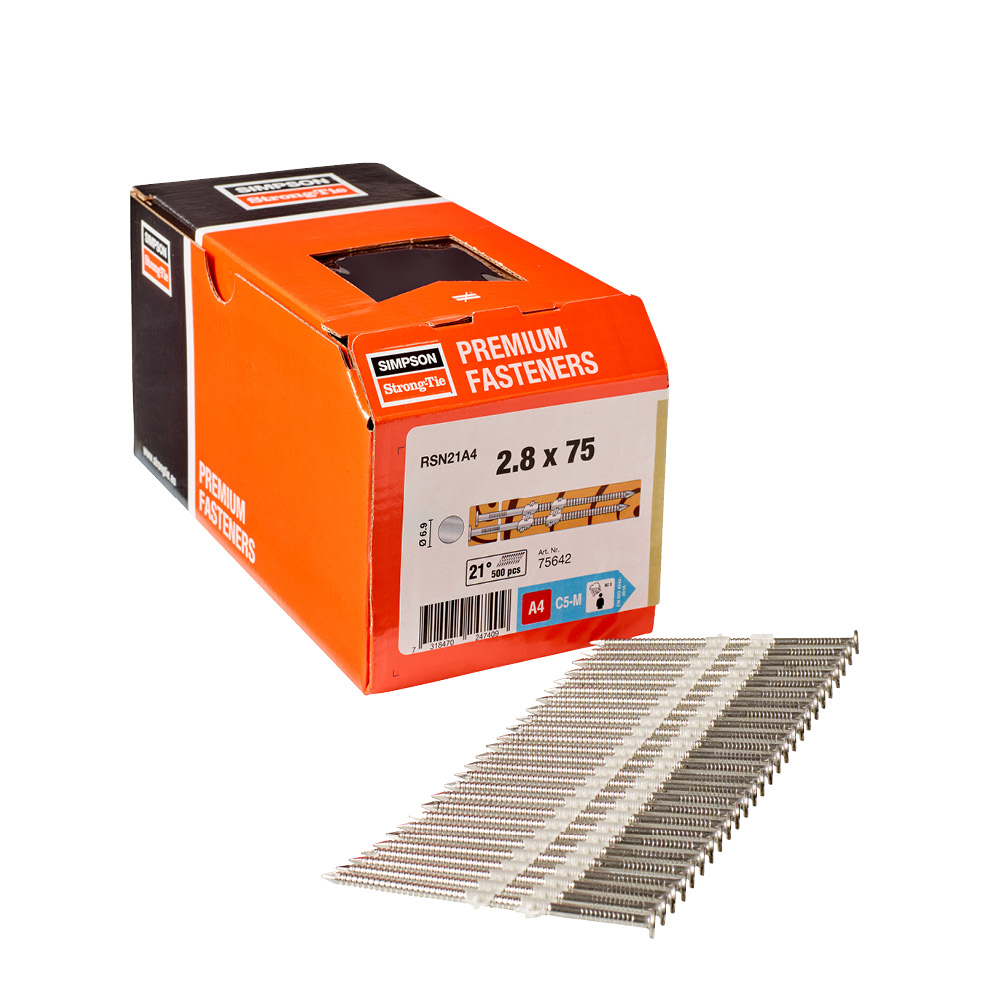

RSN21A4
Ramme-søm 21° Plaststrimmel - Rund hoved, Ring skaft - Rustfri A4

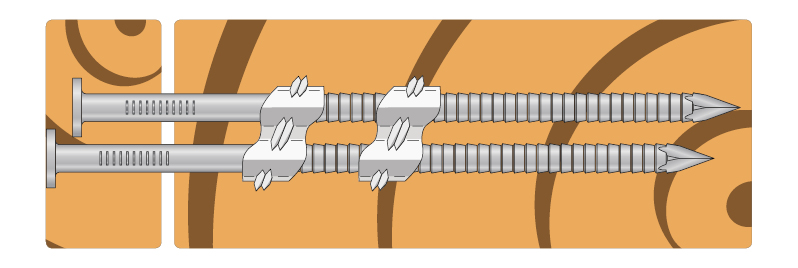

The framing nail is used for wood to wood constructions. The round head gives a good visual end result and the plastic collation is not sensitive for wetness. The stainless version can be used in severe environments.
CE mærket
Anvendelsesklasse 3
A4 (rustfri & syrefast)
Severe
EPD
Fastener Designer
Produktinformationer
Billeder
Egenskaber
Applikationer
Discontinued Products
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| RSN21A42.8X65 | 75641 | 2055995 | 55841940 | 2.8 | 63.5 | 6.2 | - | 30.2 | 0.6 | 50 | 2.5 | 42.6 | - | 500 | 0.004 |
| RSN21A42.8X75 | 75642 | 2055996 | 55841955 | 73.5 | 6.9 | - | 37.4 | 0.6 | 53 | 2.5 | 52.6 | - | 500 | 0.004 | |
| RSN21A43.1X90 | 75643 | 2055997 | 55841966 | 3.1 | 88 | 6.9 | - | 37.4 | 0.8 | 70 | 4.3 | 65.2 | - | 500 | 0.006 |
