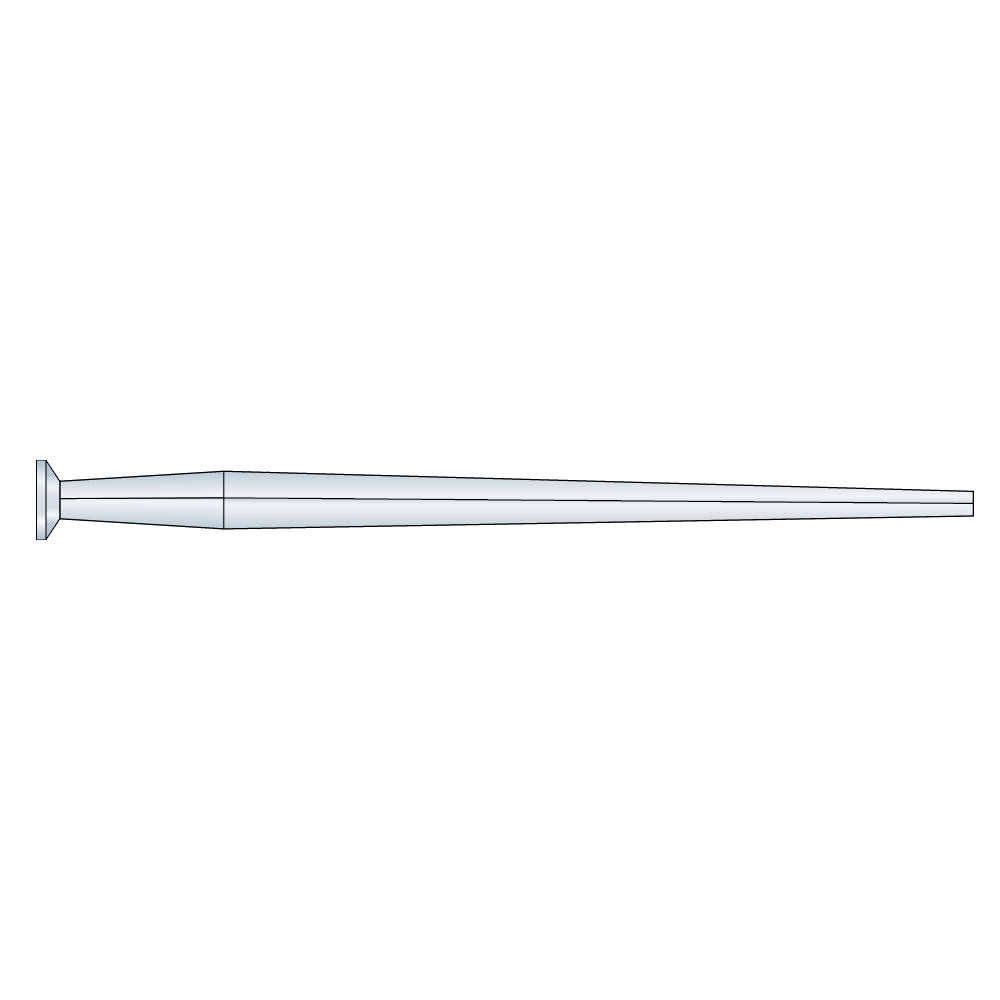

NCNG
Skåret søm - Varmgalvaniseret

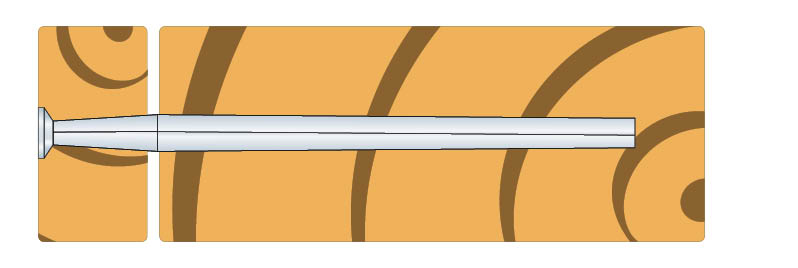

This cut nail has various shapes and withstands rain. Used for nailing sills, frames and battens, etc., into wood.
Anvendelsesklasse 3
Varmgalvaniseret stål
Outdoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner
Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| NCNG4.0x75 | 75664 | 2056018 | 55837456 | 4 | 75 | 7.5 | - | 44.16 | 2.6 | - | - | - | - | 300 | 0.009 |
| NCNG5.0x100 | 75665 | 2056019 | 55837460 | 5 | 100 | 8.5 | - | 56.72 | 2.6 | - | - | - | - | 165 | 0.016 |
| NCNG5.0x150 | 75667 | 2056021 | 55837475 | 8 | 150 | 9 | - | 63.6 | 3.5 | - | - | - | - | 60 | 0.042 |
| NCNG6.0x125 | 75666 | 2056020 | 55837486 | 6 | 125 | 9 | - | 63.6 | 3.5 | - | - | - | - | 100 | 0.025 |
