CLNC0G

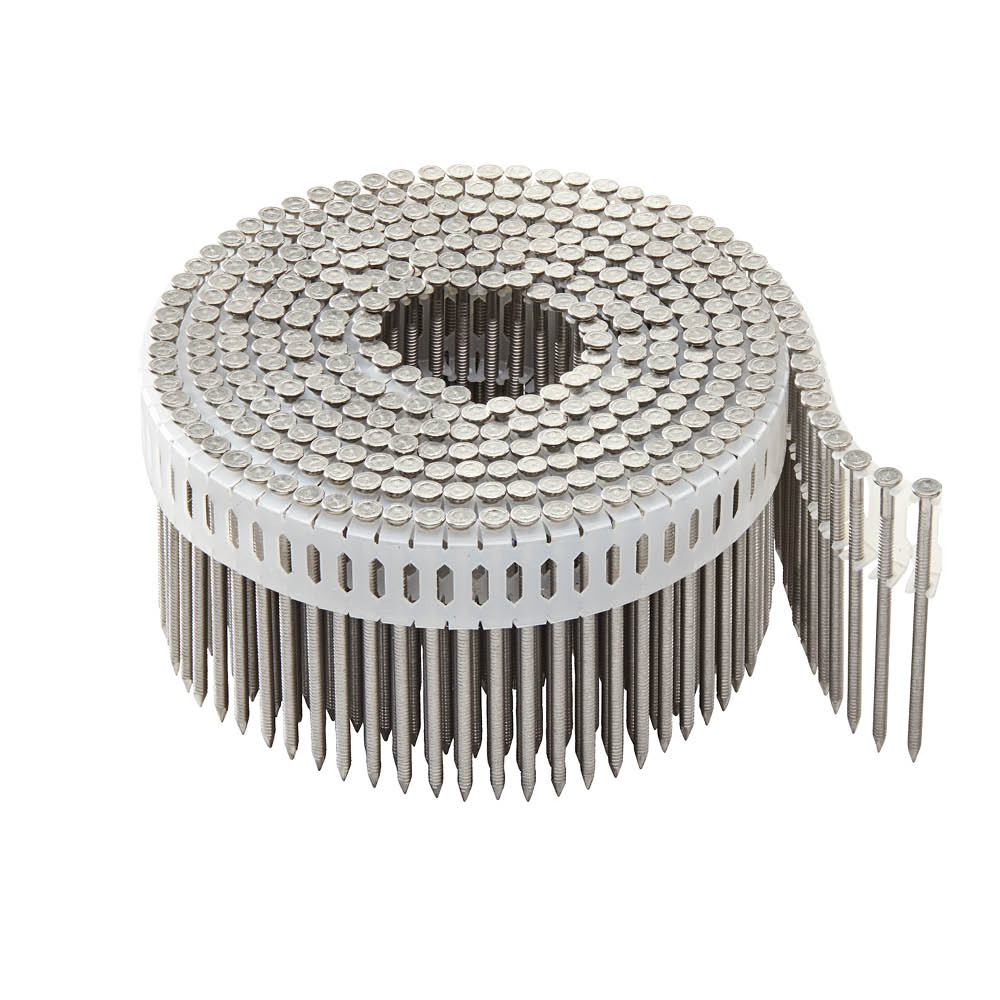

Beklædningssøm 0° plastspole - Rundt hoved, ringformet skaft - HDG
Cladding nail is mainly used for painted facades. The length of the cladding nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.
CE mærket
Anvendelsesklasse 3
Varmgalvaniseret stål
Outdoor
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner

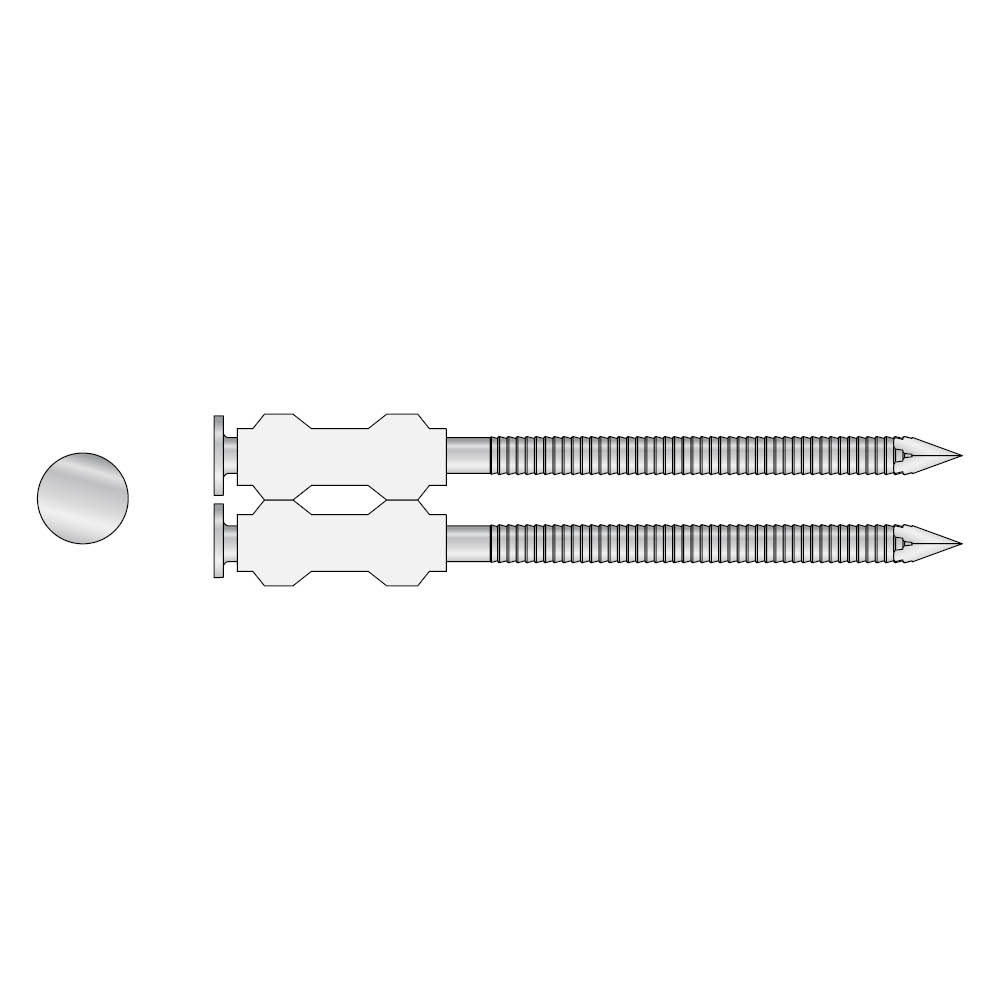

Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| CLNC0G2.8X48 | 75759 | 2056106 | 55837664 | 2.8 | 48 | 5.6 | - | 24.6 | 0.9 | ≥ 32 | 2.5 | 25.6 | - | 1950 | 0.002 |
| CLNC0G2.8X65 | 75760 | 2056107 | 55837653 | 65 | 5.6 | - | 24.6 | 0.9 | ≥ 43 | 2.5 | 42.6 | - | 1300 | 0.004 | |
