CLNC15A4
Beklædningssøm 15° plastspole - Rundt hoved, ringformet skaft - Rustfri A4

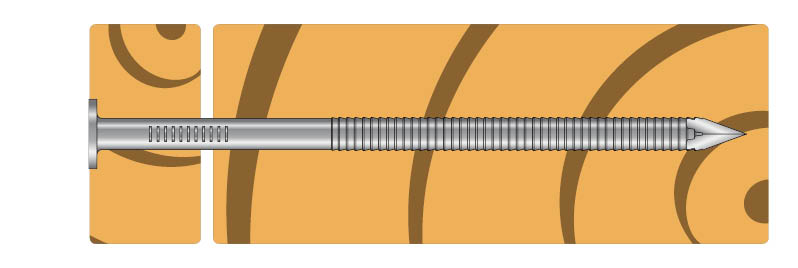

Cladding nail is mainly used for painted facades. The length of the cladding nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.
CE mærket
Anvendelsesklasse 3
A4 (rustfri & syrefast)
Severe
EPD
Fastener Designer
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner

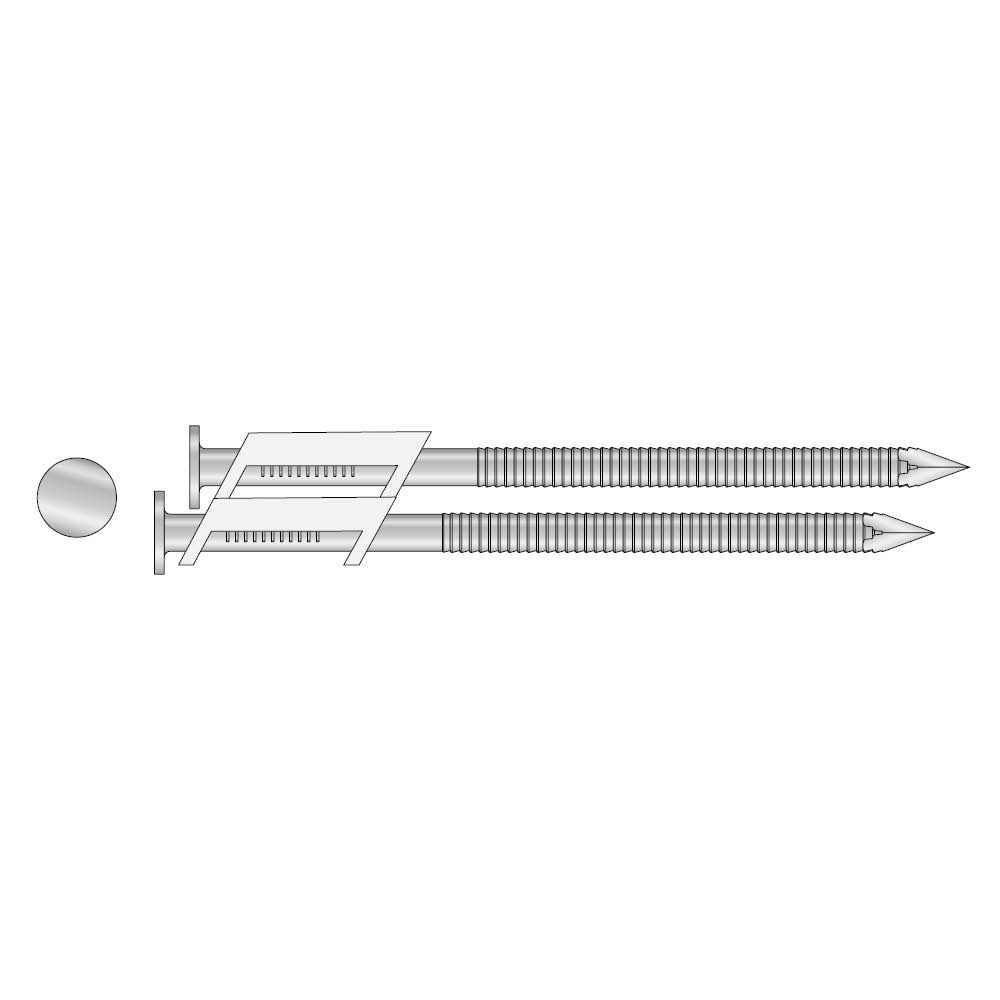

Product dimensions
| Art. nr. | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | Vægt [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | ||||||
| CLNC15A42.8X48 | 75743 | 2056090 | 55837626 | 2.8 | 47 | 6.9 | - | 36.6 | 0.6 | 26 | 2.5 | 24.6 | - | 2100 | 0.003 |
| CLNC15A42.8X65 | 75744 | 2056091 | 55842394 | 63.5 | 6.9 | - | 36.6 | 0.6 | 50 | 2.5 | 41.1 | - | 1400 | 0.004 | |
| CLNC15A42.8X75 | 75745 | 2056092 | 55837634 | 73.5 | 6.9 | - | 36.6 | 0.6 | 53 | 2.5 | 51.1 | - | 1400 | 0.004 | |
