CSFT
Skrue med fuldt gevind

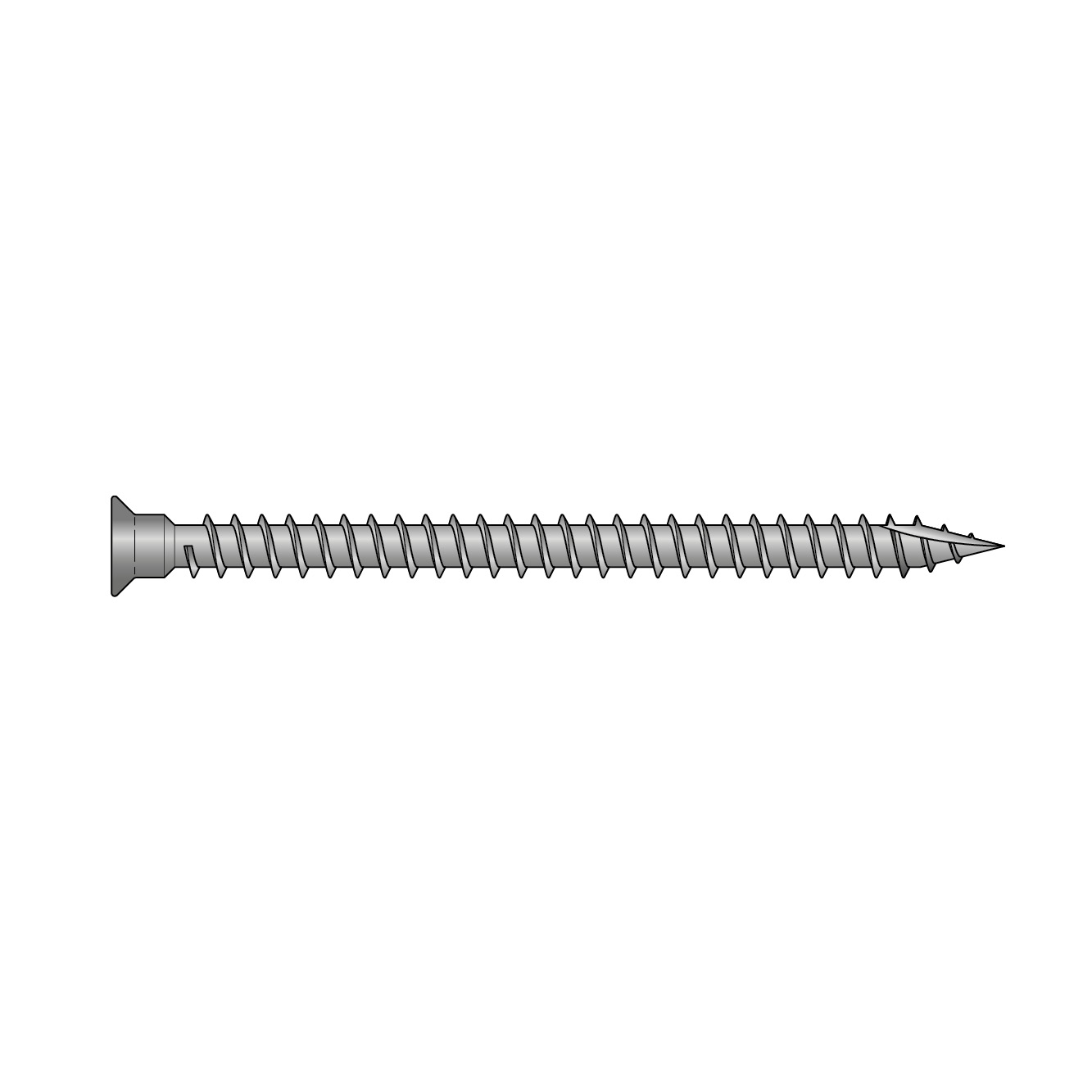

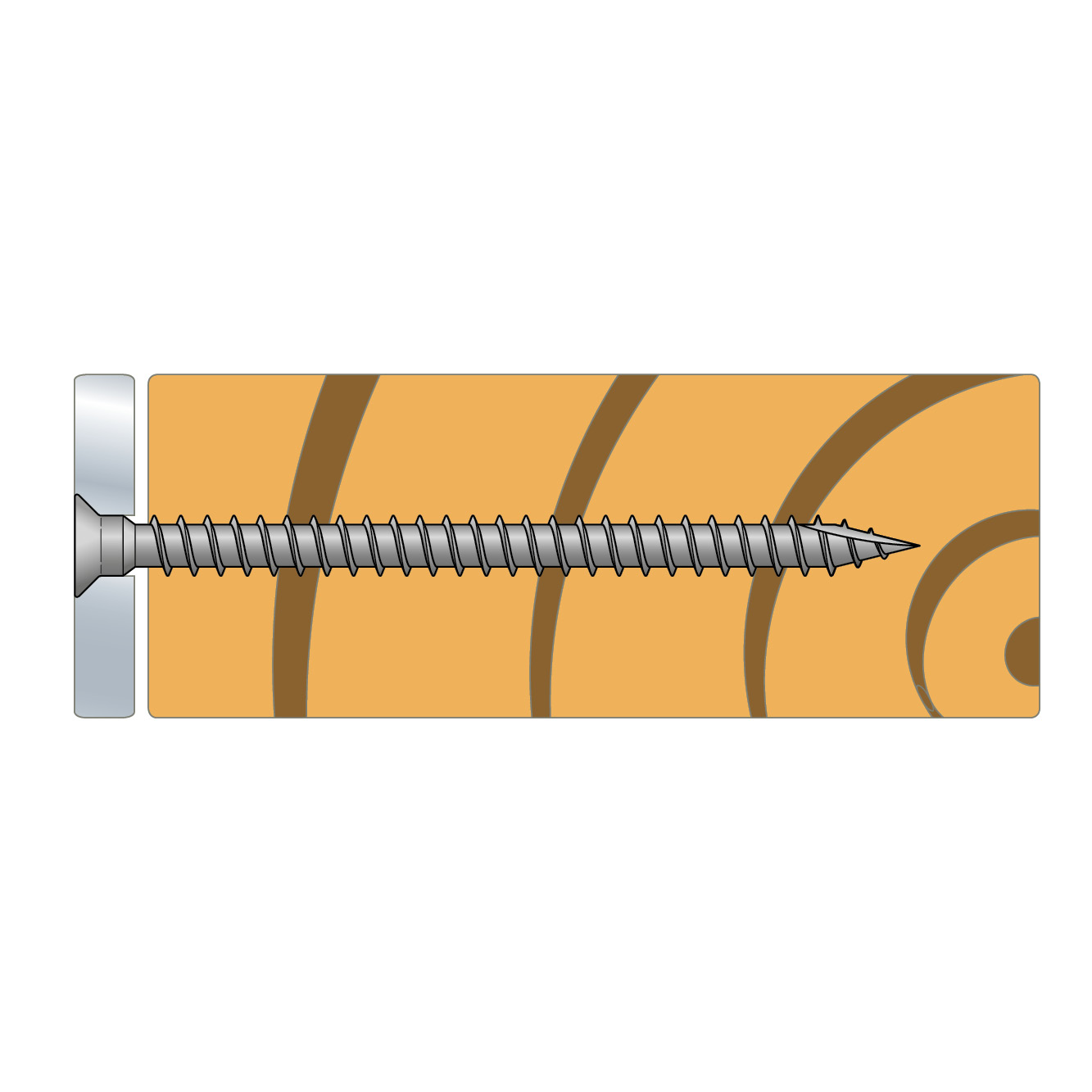

CSFT connector screw is designed for steel to wood connections and load rated togehter with specific Simpson Strong-Tie connectors. The new head shape ensure a good fit in the connector and the full thread increase the load bearing capacity. The flat head makes it possible to get a flush surface after installation.
CE mærket
Anvendelsesklasse 2
EPD
Produktinformationer
Billeder
Egenskaber
Applikationer
Teknisk data
Dimensioner

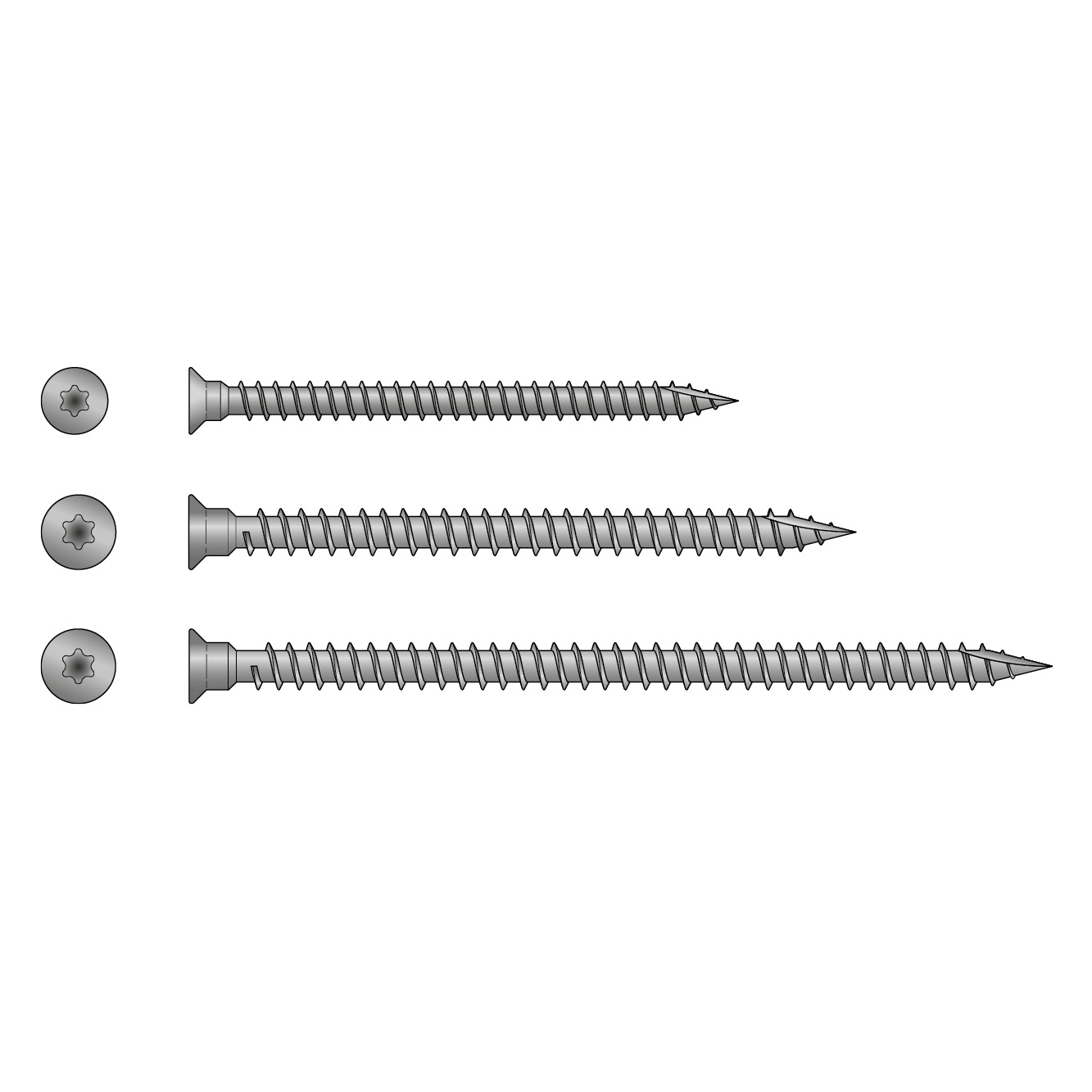

Product Dimensions
| Art. nr. | Item code | Fastener dimensions [mm] | Qty per box | Vægt [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | bit | ||||
| CSFT5.0X70 | 77308 | 5 | 70 | 8.5 | 3.5 | 65 | T-20 | 100 | 0.006 |
| CSFT6.0X85 | 77309 | 6 | 85 | 9.5 | 4 | 79 | T-25 | 100 | 0.01 |
| CSFT6.0X110 | 77310 | 6 | 110 | 9.5 | 4 | 103 | T-25 | 100 | 0.013 |
Characteristic properties
| Art. nr. | Product characteristic properties | |||
|---|---|---|---|---|
| Characteristic Yield Moment – My,k [Nm] | Characteristic withdrawal parameter - fax,k,90° [N/mm²] | Characteristic tensile capacity - ftens,k [kN] | Torsonial ratio | |
| CSFT5.0X70 | 7.7 | 17.8 | 10.7 | >1,5 |
| CSFT6.0X85 | 10.5 | 13.6 | 12.9 | >1,5 |
| CSFT6.0X110 | 10.5 | 13.6 | 12.9 | >1,5 |
